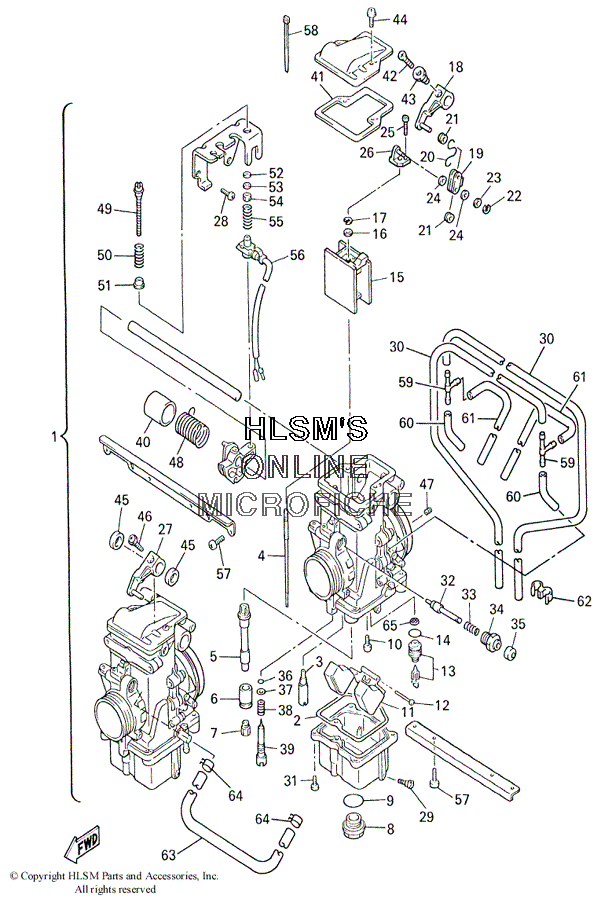

CARBURETOR ASSY для Yamaha SX500 - 2000 года выпуска
-
№АртикулНазвание
-
18CJ-14100-10-00 CARBURETOR ASSEMBLYCARBURETOR ASSEMBLY
-
28AY-14147-00-00 ...O-RING...O-RING
-
33H1-14142-45-00 ...JET, PILOT (45) (STD)...JET, PILOT (45) (STD)
-
33H1-14142-50-00 ...JET, PILOT (50) (AP)...JET, PILOT (50) (AP)
-
48CA-14116-A3-00 ...NEEDLE...NEEDLE
-
58AY-14141-56-00 ...NOZZLE, MAIN...NOZZLE, MAIN
-
68CA-14194-00-00 ...RING...RING
-
73G2-14231-28-00 ...JET, MAIN (140) (AP)...JET, MAIN (140) (AP)
-
73G2-14231-29-00 ...JET, MAIN (145) (AP)...JET, MAIN (145) (AP)
-
73G2-14231-30-00 ...JET, MAIN (#150) (AP)...JET, MAIN (#150) (AP)
-
73G2-14231-31-00 ...JET, MAIN (#155) (AP)...JET, MAIN (#155) (AP)
-
73G2-1423A-79-00 ...JET, MAIN (142.5) (AP)...JET, MAIN (142.5) (AP)
-
73G2-1423A-80-00 ...JET, MAIN (147.5) (AP)...JET, MAIN (147.5) (AP)
-
73G2-1423A-81-00 ...JET, MAIN (#152.5) (#152.5) (AP)...JET, MAIN (#152.5) (#152.5) (AP)
-
73G2-1423E-55-00 ...JET, MAIN (138.8) (AP)...JET, MAIN (138.8) (AP)
-
73G2-1423E-56-00 ...JET, MAIN (141.3) (AP)...JET, MAIN (141.3) (AP)
-
73G2-1423E-57-00 ...JET, MAIN #143.8 (8V0-1423E-57-00) (#143.8) (AP)...JET, MAIN #143.8 (8V0-1423E-57-00) (#143.8) (AP)
-
73G2-1423E-58-00 ...JET, MAIN (146.3) (AP)...JET, MAIN (146.3) (AP)
-
73G2-1423E-59-00 ...JET, MAIN (148.8) (AP)...JET, MAIN (148.8) (AP)
-
73G2-1423E-60-00 ...JET, MAIN (#151.3) (STD)...JET, MAIN (#151.3) (STD)
-
73G2-1423E-61-00 ...JET, MAIN (#153.8) (AP)...JET, MAIN (#153.8) (AP)
-
73G2-1423E-62-00 ...JET, MAIN (#156.3) (AP)...JET, MAIN (#156.3) (AP)
-
8500-14115-00-00 ...PLUG, SCREW...PLUG, SCREW
-
9558-14147-00-00 ...O-RING...O-RING
-
102LN-14565-00-00 ...SCREW...SCREW
-
118AY-14185-10-00 ...FLOAT...FLOAT
-
12537-14186-00-00 ...PIN, FLOAT...PIN, FLOAT
-
131AE-14190-15-00 ...NEEDLE VALVE ASSEMBLY...NEEDLE VALVE ASSEMBLY
-
148F2-14147-00-00 ...O-RING...O-RING
-
158CJ-14112-30-00 ...VALVE, THROTTLE 1...VALVE, THROTTLE 1
-
168AB-14227-00-00 ...WASHER (T=0.4MM)...WASHER (T=0.4MM)
-
17256-14919-00-00 ...CLIP...CLIP
-
188CW-14905-00-00 ...LEVER, STARTER...LEVER, STARTER
-
198AY-14243-00-00 ...PLATE...PLATE
-
208CD-14137-00-00 ...CLIP...CLIP
-
218CC-14918-00-00 ...RING...RING
-
223MA-14937-00-00 ...CLIP...CLIP
-
23620-14198-00-00 ...GASKET...GASKET
-
243GF-14126-00-00 ...GASKET...GASKET
-
258CC-14216-00-00 ...SCREW...SCREW
-
268CD-14188-00-00 ...CONNECTOR...CONNECTOR
-
278CW-14905-10-00 ...LEVER, STARTER...LEVER, STARTER
-
2898502-05010-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
293FV-14191-00-00 ...PLUG, DRAIN...PLUG, DRAIN
-
308CJ-14348-00-00 ...PIPE 1...PIPE 1
-
3198502-04014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
328CW-14171-00-00 ...PLUNGER, STARTER...PLUNGER, STARTER
-
33256-14135-00-00 ...SPRING, PLUNGER...SPRING, PLUNGER
-
341FN-14174-00-00 ...C, PLUNGER...C, PLUNGER
-
35302-14173-00-00 ...COVER, PLUNGER C...COVER, PLUNGER C
-
363H1-14147-00-00 ...O-RING...O-RING
-
373H1-14962-00-00 ...WASHER...WASHER
-
385K7-14134-00-00 ...SPRING, AIR ADJUSTING...SPRING, AIR ADJUSTING
-
3989A-14565-00-00 ...SCREW, PILOT ADJUSTING......SCREW, PILOT ADJUSTING...
-
408AY-14265-00-00 ...COLLAR...COLLAR
-
418AY-14199-00-00 ...GASKET...GASKET
-
4298702-05018-00 ...SCREW, FLAT HEAD...SCREW, FLAT HEAD
-
438AY-14918-00-00 ...RING...RING
-
4497602-04108-00 ...SCREW, PAN HEAD WITH WASHER...SCREW, PAN HEAD WITH WASHER
-
45583-14264-00-00 ...SPACER...SPACER
-
4697602-05116-00 ...SCREW, PAN HEAD WITH WASHER...SCREW, PAN HEAD WITH WASHER
-
47239-14172-06-00 ...PILOT JET, AIR (0.6) (AP)...PILOT JET, AIR (0.6) (AP)
-
47239-14172-08-00 ...PILOT JET, AIR (0.8) (STD)...PILOT JET, AIR (0.8) (STD)
-
488CJ-14275-00-00 ...SPRING...SPRING
-
498CC-14122-00-00 ...SCREW, THROTTLE...SCREW, THROTTLE
-
502J2-14133-00-00 ...SPRING, THROTTLE STOP...SPRING, THROTTLE STOP
-
5189A-14265-00-00 ...COLLAR...COLLAR
-
5222F-14117-00-00 ...WASHER, PLUG SCREW...WASHER, PLUG SCREW
-
531UF-14952-00-00 ...WASHER...WASHER
-
5489A-14594-00-00 ...NUT...NUT
-
5589A-24529-00-00 ...SPRING...SPRING
-
5687S-8259A-00-00 ...SWITCH, CARBURETOR...SWITCH, CARBURETOR
-
5798502-05014-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
5835H-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
594N0-14251-00-00 ...NIPPLE...NIPPLE
-
608CH-14348-00-00 ...PIPE 1...PIPE 1
-
6189A-14987-00-00 ...HOSE...HOSE
-
6287M-14137-00-00 ...CLIP...CLIP
-
638CJ-14348-10-00 ...PIPE 1...PIPE 1
-
6490467-10035-00 ...CLIP...CLIP
-
651J7-14994-00-00 ...NET, FILTER...NET, FILTER
