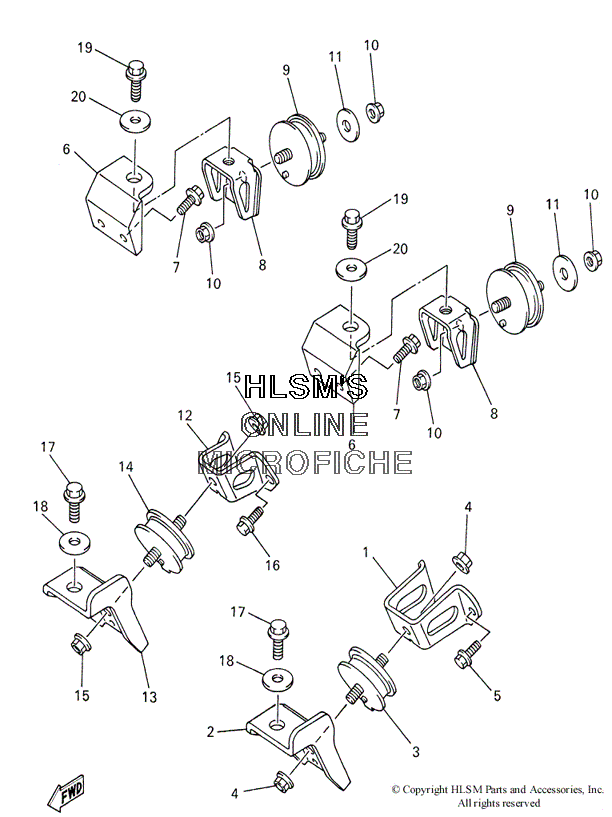

ENGINE MOUNTING для Yamaha SX500 - 2000 года выпуска
-
№АртикулНазвание
-
18CR-21415-00-00 BRACKET, FRONT UPPER 1BRACKET, FRONT UPPER 1
-
28CR-21417-00-00 BRACKET, FRONT LOWER 1BRACKET, FRONT LOWER 1
-
38CR-21486-00-00 DAMPER 2DAMPER 2
-
495707-10500-00 NUT, FLANGENUT, FLANGE
-
590105-083A2-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
68CR-21425-00-00 BRACKET, REAR UPPER 1BRACKET, REAR UPPER 1
-
790105-083A2-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
88CR-21427-01-00 BRACKET, REAR LOWER 1BRACKET, REAR LOWER 1
-
98CR-21486-00-00 DAMPER 2DAMPER 2
-
1095707-10500-00 NUT, FLANGENUT, FLANGE
-
1190201-10321-00 WASHER, PLATEWASHER, PLATE
-
128CR-21416-00-00 BRACKET, FRONT UPPER 2BRACKET, FRONT UPPER 2
-
138CR-21417-00-00 BRACKET, FRONT LOWER 1BRACKET, FRONT LOWER 1
-
148CR-21486-00-00 DAMPER 2DAMPER 2
-
1595707-10500-00 NUT, FLANGENUT, FLANGE
-
1690105-083A2-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1795827-12030-00 BOLT, FLANGEBOLT, FLANGE
-
1890201-120U9-00 WASHER, PLATEWASHER, PLATE
-
1995817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-10321-00 WASHER, PLATEWASHER, PLATE
