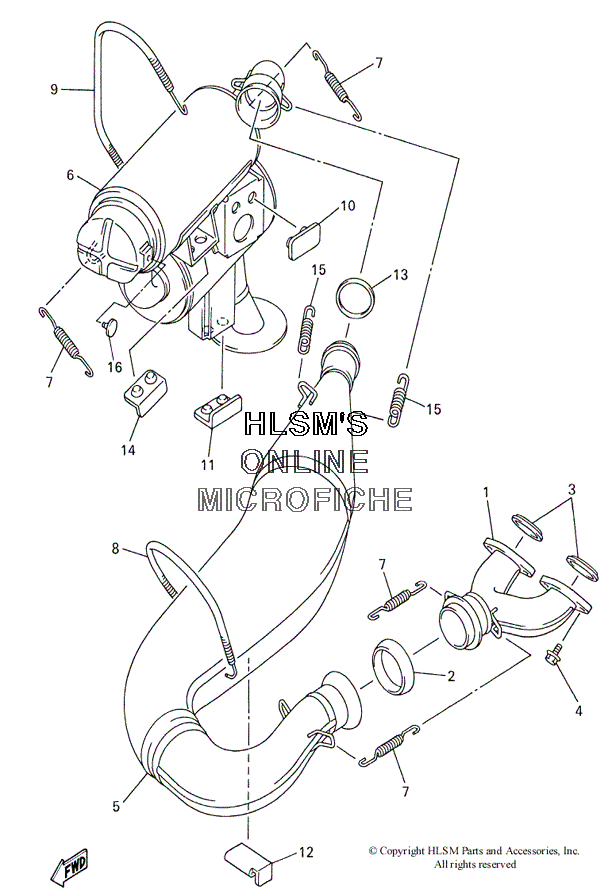

EXHAUST SYSTEM для Yamaha SX500 - 2000 года выпуска
-
№АртикулНазвание
-
18CR-14610-00-00 EXHAUST PIPE ASSEMBLY 1EXHAUST PIPE ASSEMBLY 1
-
28CA-14714-00-00 GASKET, MUFFLERGASKET, MUFFLER
-
38CR-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
495817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
58CR-14620-01-00 EXHAUST PIPE ASSEMBLY 2EXHAUST PIPE ASSEMBLY 2
-
68CR-14640-01-00 SECOND SILENCER, MUFFLERSECOND SILENCER, MUFFLER
-
790506-20272-00 SPRING, TENSIONSPRING, TENSION
-
890506-16335-00 SPRING, TENSIONSPRING, TENSION
-
990506-16504-00 SPRING, TENSIONSPRING, TENSION
-
108A5-14728-02-00 PROTECTER, MUFFLER 2PROTECTER, MUFFLER 2
-
1183R-14728-01-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
128CR-14738-00-00 PROTECTER, MUFFLER 3PROTECTER, MUFFLER 3
-
138CH-14633-00-00 RINGRING
-
148CR-14728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
1590506-20093-00 SPRING, TENSIONSPRING, TENSION
-
1690338-09265-00 PLUGPLUG
