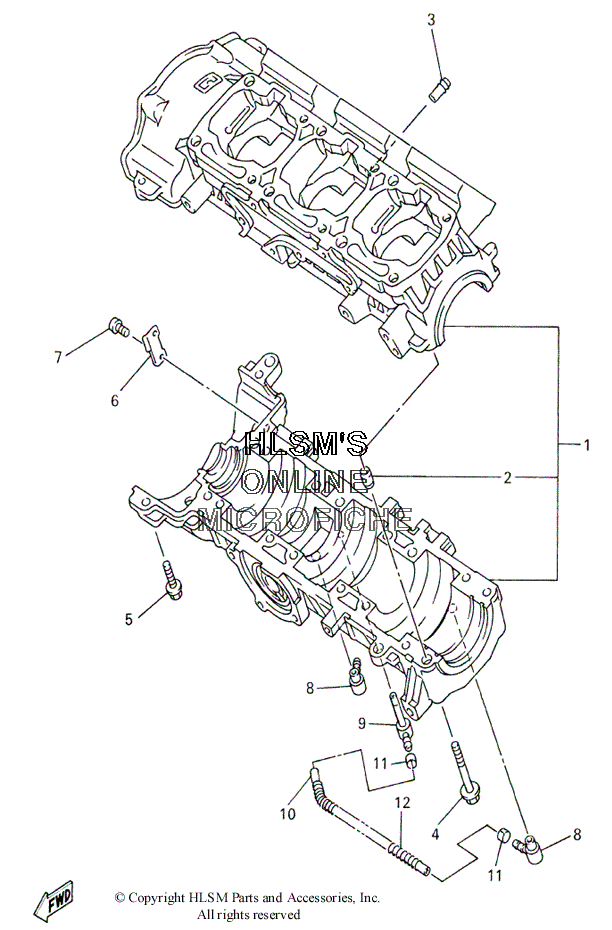

CRANKCASE ASSY для Yamaha V-MAX 700 - 2000 года выпуска
-
№АртикулНазвание
-
18CH-15100-02-00 CRANKCASE ASSEMBLYCRANKCASE ASSEMBLY
-
299530-12016-00 ...PIN, DOWEL...PIN, DOWEL
-
3J38-11116-00-00 JOINT, BREATHERJOINT, BREATHER
-
495817-08080-00 BOLT, FLANGEBOLT, FLANGE
-
595817-08035-00 BOLT, FLANGEBOLT, FLANGE
-
690461-12145-00 CLAMPCLAMP
-
798507-06012-00 SCREW, PAN HEADSCREW, PAN HEAD
-
8353-13552-01-00 NOZZLENOZZLE
-
98CH-13552-00-00 NOZZLENOZZLE
-
1090446-08382-00 HOSEHOSE
-
1190468-02025-00 CLIPCLIP
-
1290501-08486-00 SPRING, COMPRESSIONSPRING, COMPRESSION
