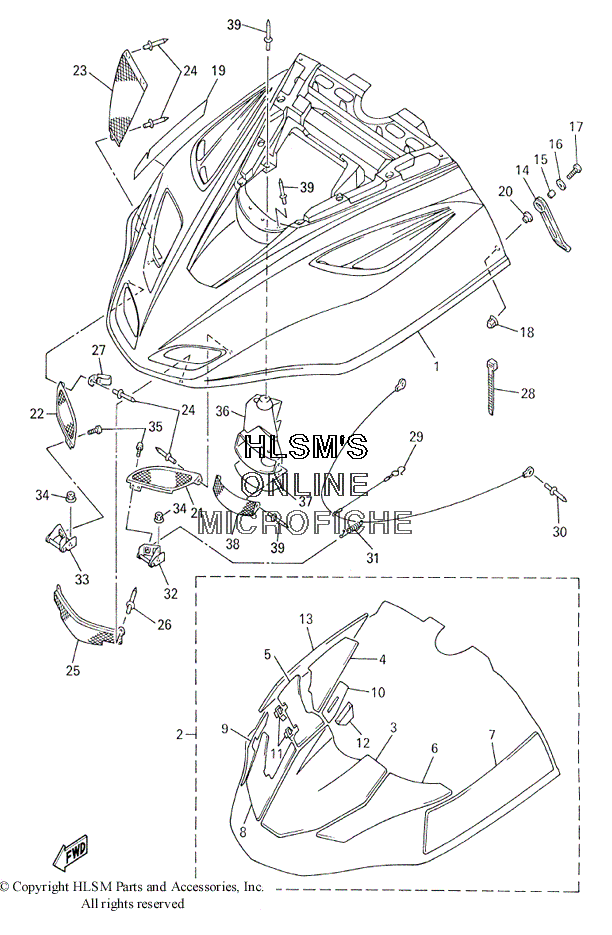

HOOD ASSY для Yamaha V-MAX 700 - 2000 года выпуска
-
№АртикулНазвание
-
18CJ-77111-00-00 SHROUDSHROUD
-
28CR-W7726-00-00 LINING SETLINING SET
-
38CR-77272-00-00 ...DAMPER, NOISE 2...DAMPER, NOISE 2
-
48CR-77273-00-00 ...DAMPER, NOISE 3...DAMPER, NOISE 3
-
58CR-77274-00-00 ...DAMPER, NOISE 4...DAMPER, NOISE 4
-
68CR-77275-00-00 ...DAMPER, NOISE 5...DAMPER, NOISE 5
-
78CR-77276-00-00 ...DAMPER, NOISE 6...DAMPER, NOISE 6
-
88CR-77278-00-00 ...DAMPER, NOISE 8...DAMPER, NOISE 8
-
98CR-7717E-00-00 ...TAPE 1...TAPE 1
-
108CR-7717F-00-00 ...TAPE 2...TAPE 2
-
118CR-7717G-00-00 ...TAPE 3...TAPE 3
-
128CR-7717H-00-00 ...TAPE 4...TAPE 4
-
138CR-2199H-00-00 ...SHIELD, HEAT...SHIELD, HEAT
-
148V0-77171-00-00 BODY, LATCH 1BODY, LATCH 1
-
1590387-06241-00 COLLARCOLLAR
-
1690201-06557-00 WASHER, PLATEWASHER, PLATE
-
1790154-06078-00 SCREW, BINDINGSCREW, BINDING
-
1890176-06055-00 NUT, CROWNNUT, CROWN
-
198CS-7717J-00-00 TAPE, 5TAPE, 5
-
2090387-062M9-00 COLLARCOLLAR
-
218CR-77131-00-00 LOUVER 1LOUVER 1
-
228CR-77132-00-00 LOUVER 2LOUVER 2
-
238CR-77133-00-00 LOUVER 3LOUVER 3
-
2490267-48182-00 RIVET, BLINDRIVET, BLIND
-
258CR-77134-00-00 LOUVER 4LOUVER 4
-
2690267-48059-00 RIVET, BLINDRIVET, BLIND
-
2790465-08368-00 CLAMPCLAMP
-
2890464-13077-00 CLAMPCLAMP
-
298CR-77118-00-00 STOPPER, SHROUDSTOPPER, SHROUD
-
3090267-48141-00 RIVET, BLINDRIVET, BLIND
-
3189A-77159-00-00 CLAMP, RODCLAMP, ROD
-
328CR-77140-00-00 HINGE ASSEMBLYHINGE ASSEMBLY
-
338CR-7714A-00-00 HINGE ASSEMBLY 2HINGE ASSEMBLY 2
-
3495707-06500-00 NUT, FLANGENUT, FLANGE
-
3598907-06014-00 SCREW, BINDSCREW, BIND
-
368CR-77194-00-00 DUCTDUCT
-
378CR-77277-00-00 DAMPER, NOISE 7DAMPER, NOISE 7
-
388CR-77109-00-00 LOUVER 5LOUVER 5
-
3990267-48182-00 RIVET, BLINDRIVET, BLIND
