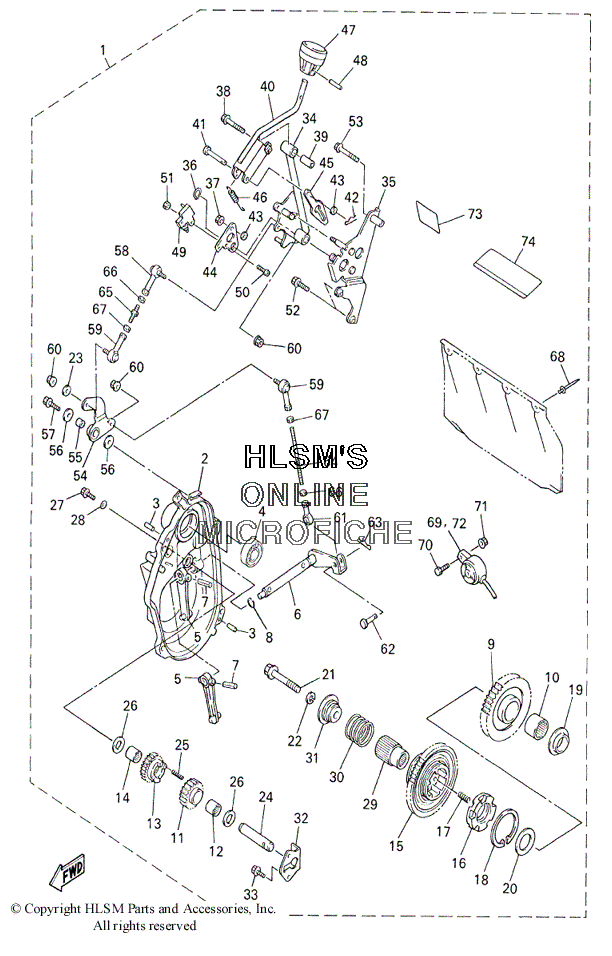

REVERSE GEAR KIT (OPTION) для Yamaha V-MAX 700 - 2000 года выпуска
-
№АртикулНазвание
-
18CR-47590-01-00 REVERSE GEAR KITREVERSE GEAR KIT
-
28CW-47543-02-00 ...CAP, HOUSING...CAP, HOUSING
-
393606-20044-00 ...PIN, DOWEL...PIN, DOWEL
-
493306-20468-00 ...BEARING...BEARING
-
58CW-18511-00-00 ...FORK, SHIFT 1...FORK, SHIFT 1
-
68CW-18197-00-00 ...SHAFT...SHAFT
-
791609-50022-00 ...PIN, SPRING...PIN, SPRING
-
893210-12131-00 ...O-RING...O-RING
-
98CW-47587-90-00 ...SPROCKET, CHAIN DRIVEN (39T)...SPROCKET, CHAIN DRIVEN (39T)
-
1093317-33179-00 ...BEARING...BEARING
-
118DM-17692-00-00 ...SPROCKET, DRIVE...SPROCKET, DRIVE
-
1293317-21578-00 ...BEARING...BEARING
-
138CW-17143-00-00 ...GEAR, REVERSE PINION 1...GEAR, REVERSE PINION 1
-
1493317-21578-00 ...BEARING...BEARING
-
158CW-17243-00-00 ...GEAR, REVERSE WHEEL 1...GEAR, REVERSE WHEEL 1
-
168CW-17492-00-00 ...DOG, TRANSMISSION SHIFT...DOG, TRANSMISSION SHIFT
-
1790501-066J5-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
1893440-39175-00 ...CIRCLIP...CIRCLIP
-
1990387-2008G-00 ...COLLAR...COLLAR
-
2090201-320S3-00 ...WASHER, PLATE...WASHER, PLATE
-
2190105-100A7-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
2292907-10100-00 ...WASHER, SPRING...WASHER, SPRING
-
2390201-06778-00 ...WASHER, PLATE...WASHER, PLATE
-
248CW-1761A-00-00 ...SHAFT, 1...SHAFT, 1
-
2590501-06022-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
2690201-16245-00 ...WASHER, PLATE...WASHER, PLATE
-
2790105-060A6-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
2890210-06006-00 ...WASHER, SEAL...WASHER, SEAL
-
298CW-47571-00-00 ...JOURNAL 1...JOURNAL 1
-
3090501-326J6-00 ...SPRING, COMPRESSION...SPRING, COMPRESSION
-
318CW-47564-00-00 ...COLLAR...COLLAR
-
328CW-47591-00-00 ...PLATE...PLATE
-
3390105-060A6-00 ...BOLT, WASHER BASED...BOLT, WASHER BASED
-
348CW-18112-01-00 ...ARM, SHIFT...ARM, SHIFT
-
358CW-18161-01-00 ...GUIDE, PLATE STOPPER...GUIDE, PLATE STOPPER
-
3699009-12400-00 ...CIRCLIP...CIRCLIP
-
3795607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
3895817-06035-00 ...BOLT, FLANGE...BOLT, FLANGE
-
3990387-06605-00 ...COLLAR...COLLAR
-
408CW-18152-01-00 ...LEVER, SHIFT 4...LEVER, SHIFT 4
-
4191701-06035-00 ...PIN, CLEVIS...PIN, CLEVIS
-
4290468-10050-00 ...CLIP...CLIP
-
4392907-06200-00 ...WASHER...WASHER
-
448CW-1811A-00-00 ...PLATE, SHIFT ARM...PLATE, SHIFT ARM
-
458CW-18153-00-00 ...GUIDE, SHIFT RETURN SPRING...GUIDE, SHIFT RETURN SPRING
-
4690506-14343-00 ...SPRING, TENSION...SPRING, TENSION
-
478CL-18174-00-00 ...KNOB, SHIFT LEVER...KNOB, SHIFT LEVER
-
4891609-40022-00 ...PIN, SPRING...PIN, SPRING
-
49J51-82817-00-00 ...SWITCH...SWITCH
-
5098907-04016-00 ...SCREW, BIND...SCREW, BIND
-
5195607-04100-00 ...NUT, U...NUT, U
-
5295827-06025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
5395827-06040-00 ...BOLT, FLANGE...BOLT, FLANGE
-
548CW-18198-00-00 ...LEVER...LEVER
-
5590387-0608T-00 ...COLLAR...COLLAR
-
5690201-06071-00 ...WASHER, PLATE...WASHER, PLATE
-
5795817-06025-00 ...BOLT, FLANGE...BOLT, FLANGE
-
58J45-23845-00-00 ...JOINT, UNIVERSAL 2...JOINT, UNIVERSAL 2
-
5988T-18157-00-00 ...JOINT 2...JOINT 2
-
6095607-06200-00 ...NUT, SELF U-FLANGE...NUT, SELF U-FLANGE
-
618CW-18156-00-00 ...JOINT 1...JOINT 1
-
6291701-06022-00 ...PIN, CLEVIS...PIN, CLEVIS
-
6390468-12007-00 ...CLIP...CLIP
-
6488T-18116-01-00 ...JOINT, ROD 1...JOINT, ROD 1
-
6526H-18115-00-00 ...ROD, SHIFT...ROD, SHIFT
-
6695304-06600-00 ...NUT...NUT
-
6790170-06289-00 ...NUT...NUT
-
6890267-48141-00 ...RIVET, BLIND...RIVET, BLIND
-
698CR-83383-00-00 ...BUZZER...BUZZER
-
7097007-05020-00 ...BOLT...BOLT
-
7195707-05500-00 ...NUT, FLANGE...NUT, FLANGE
-
728CW-83383-00-00 ...BUZZER...BUZZER
-
738CW-77763-00-00 ...LABEL, WARNING 3...LABEL, WARNING 3
-
748DB-77761-00-00 ...LABEL, WARNING 1...LABEL, WARNING 1
