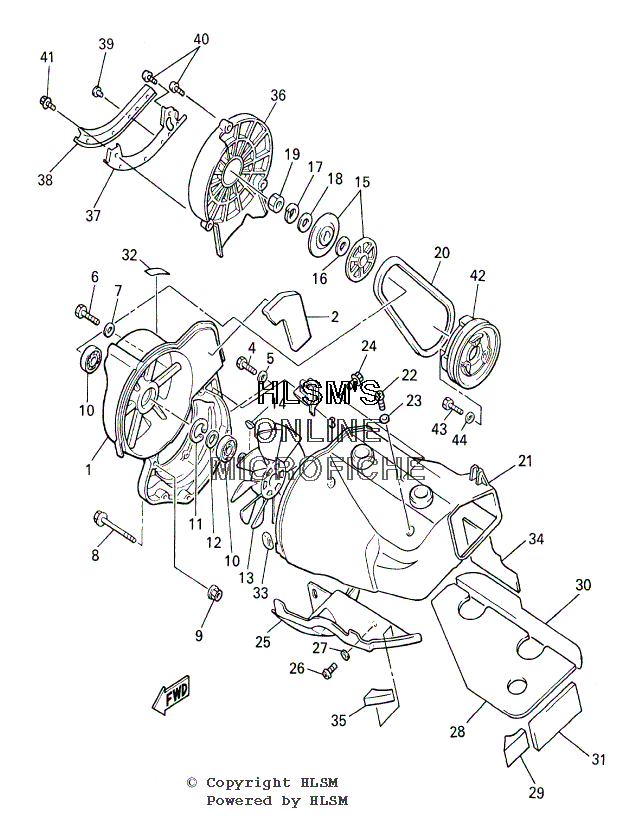

AIR SHROUD W/ FAN для Yamaha PHAZER 500 DELUXE - 2001 года выпуска
-
№АртикулНазвание
-
188F-12621-02-00 CASE, FANCASE, FAN
-
28Y0-12679-00-00 DAMPER, SHROUD 6DAMPER, SHROUD 6
-
380L-12658-01-00 DAMPER, AIR SHROUD 1DAMPER, AIR SHROUD 1
-
497027-08040-00 BOLTBOLT
-
592907-08600-00 WASHER, PLATEWASHER, PLATE
-
697027-08055-00 BOLTBOLT
-
792907-08600-00 WASHER, PLATEWASHER, PLATE
-
895817-08065-00 BOLT, FLANGEBOLT, FLANGE
-
995707-08500-00 NUT, FLANGENUT, FLANGE
-
1093306-20315-00 BEARING (B6203)BEARING (B6203)
-
1199009-40500-00 CIRCLIPCIRCLIP
-
1290201-17713-00 WASHER, PLATEWASHER, PLATE
-
138H8-12611-01-00 FANFAN
-
1490280-05014-00 KEY, WOODRUFFKEY, WOODRUFF
-
158H8-12619-01-00 PULLEY 2PULLEY 2
-
1690214-17017-00 WASHER, CLAW (0.5T) (UN)WASHER, CLAW (0.5T) (UN)
-
--90214-17018-00 WASHER, CLAW (1.0T) (UN)WASHER, CLAW (1.0T) (UN)
-
1792907-16100-00 WASHERWASHER
-
1890201-17713-00 WASHER, PLATEWASHER, PLATE
-
1990170-16425-00 NUTNUT
-
208DJ-12612-00-00 BELTBELT
-
218DJ-12651-00-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
2298507-06014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2392907-06600-00 WASHER, PLATEWASHER, PLATE
-
2495807-06014-00 BOLT, FLANGEBOLT, FLANGE
-
258V0-12652-00-00 AIR SHROUD, CYLINDER 2AIR SHROUD, CYLINDER 2
-
2698507-06014-00 SCREW, PAN HEADSCREW, PAN HEAD
-
2792907-06600-00 WASHER, PLATEWASHER, PLATE
-
288DJ-12658-00-00 DAMPER, AIR SHROUD 1DAMPER, AIR SHROUD 1
-
298DJ-12678-00-00 DAMPER, AIR SHROUD 5DAMPER, AIR SHROUD 5
-
308DJ-12668-00-00 DAMPER, AIR SHROUD 3DAMPER, AIR SHROUD 3
-
318DJ-12669-00-00 DAMPER, AIR SHROUD 4DAMPER, AIR SHROUD 4
-
328K4-12628-00-00 LABEL, CAUTIONLABEL, CAUTION
-
338H8-12658-00-00 DAMPER, AIR SHROUD 1DAMPER, AIR SHROUD 1
-
348DJ-12688-00-00 DAMPER, SHROUD 7DAMPER, SHROUD 7
-
358DJ-12679-00-00 DAMPER, SHROUD 6DAMPER, SHROUD 6
-
368L0-12616-00-00 COVER, FAN CASECOVER, FAN CASE
-
378Y0-12637-02-00 STAY 1STAY 1
-
388Y0-12687-02-00 DAMPER, DUCT 4DAMPER, DUCT 4
-
3990269-05051-00 RIVETRIVET
-
4098907-06025-00 SCREW, BINDSCREW, BIND
-
4195807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
428V0-15723-00-00 PULLEY, STARTERPULLEY, STARTER
-
4397027-08025-00 BOLTBOLT
-
4492907-08600-00 WASHER, PLATEWASHER, PLATE
