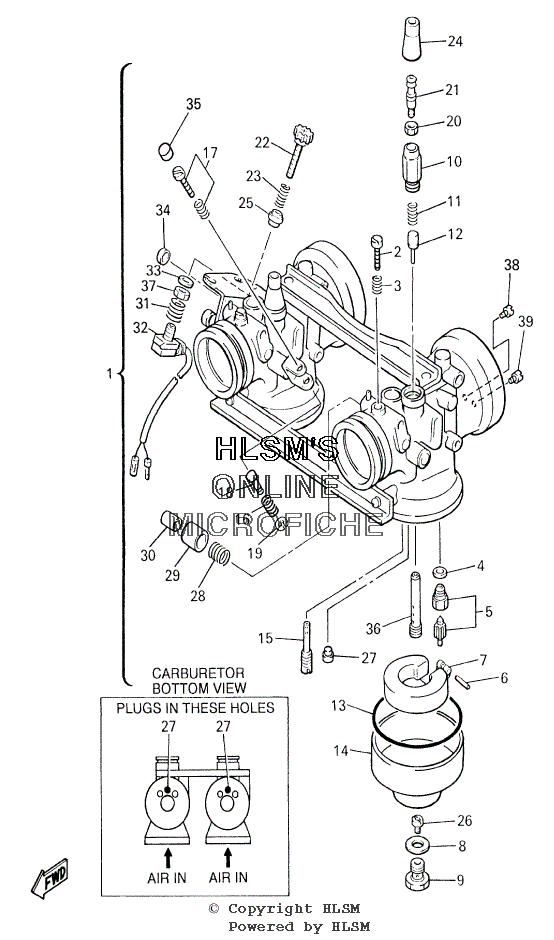

CARBURETOR ASSY для Yamaha PHAZER 500 DELUXE - 2001 года выпуска

№

Артикул

Название
1

8DJ-14100-00-00 CARBURETOR ASSY

CARBURETOR ASSY

63 310 ₽
2

620-14211-00-00 ...SCREW, PILOT ADJUSTING

...SCREW, PILOT ADJUSTING

1 510 ₽
3

8V0-14212-00-00 ...SPRING, PILOT ADJUSTING

...SPRING, PILOT ADJUSTING

320 ₽
4

214-14195-00-00 ...WASHER, NEEDLE VALVE

...WASHER, NEEDLE VALVE

190 ₽
5

8DJ-14190-15-00 ...NEEDLE VALVE ASSY

...NEEDLE VALVE ASSY

4 400 ₽
6

8M6-14186-00-00 ...PIN, FLOAT

...PIN, FLOAT

840 ₽
7

8M6-14185-00-00 ...FLOAT

...FLOAT

3 300 ₽
8

286-14198-00-00 ...GASKET

...GASKET

630 ₽
9

8M6-14261-00-00 ...HOLDER

...HOLDER

2 990 ₽
10

8G8-14174-00-00 ...CAP, PLUNGER

...CAP, PLUNGER

2 200 ₽
11

127-14135-00-00 ...SPRING, PLUNGER

...SPRING, PLUNGER

480 ₽
12

8G8-14171-00-00 ...PLUNGER, STARTER

...PLUNGER, STARTER

2 040 ₽
13

8M6-14126-00-00 ...GASKET

...GASKET

920 ₽
14

8M6-14181-00-00 ...BODY, FLOAT CHAMBER 1

...BODY, FLOAT CHAMBER 1

3 300 ₽
15

193-14142-70-00 ...JET, PILOT (70) (STD)

...JET, PILOT (70) (STD)

1 130 ₽
15

193-14142-75-00 ...JET, PILOT (75) (OPT)

...JET, PILOT (75) (OPT)

1 350 ₽
15

193-14142-80-00 ...JET, PILOT (80) (OPT)

...JET, PILOT (80) (OPT)

780 ₽
16

3F7-14133-00-00 ...SPRING, THROTTLE STOP

...SPRING, THROTTLE STOP

590 ₽
17

3F7-14922-00-00 ...SCREW, THROTTLE

...SCREW, THROTTLE

1 350 ₽
18

584-14992-00-00 ...ROD

...ROD

810 ₽
19

256-14937-00-00 ...CLIP

...CLIP

310 ₽
20

802-14161-00-00 ...NUT, CABLE ADJUSTING

...NUT, CABLE ADJUSTING

470 ₽
21

127-14124-00-00 ...SCREW, CABLE ADJUSTING

...SCREW, CABLE ADJUSTING

1 040 ₽
22

80L-14122-00-00 ...SCREW, THROTTLE

...SCREW, THROTTLE

3 770 ₽
23

8X0-14500-00-00 ...SPRING

...SPRING

1 730 ₽
24

8A7-14169-00-00 ...CAP

...CAP

1 140 ₽
25

8X0-14184-00-00 ...RING

...RING

1 730 ₽
26

3G2-14231-25-00 ...JET, MAIN (125) (OPT)

...JET, MAIN (125) (OPT)

1 040 ₽
26

3G2-14231-26-00 ...JET, MAIN (130) (OPT)

...JET, MAIN (130) (OPT)

1 190 ₽
26

3G2-14231-27-00 ...JET, MAIN (135) (OPT)

...JET, MAIN (135) (OPT)

790 ₽
26

3G2-14231-29-00 ...JET, MAIN (145) (OPT)

...JET, MAIN (145) (OPT)

1 190 ₽
26

3G2-1423A-75-00 ...JET, MAIN (122.5) (OPT)

...JET, MAIN (122.5) (OPT)

1 350 ₽
26

3G2-1423A-77-00 ...JET, MAIN (132.5) (OPT)

...JET, MAIN (132.5) (OPT)

1 100 ₽
26

3G2-1423A-78-00 ...JET, MAIN (137.5) (OPT)

...JET, MAIN (137.5) (OPT)

1 110 ₽
26

3G2-1423A-79-00 ...JET, MAIN (142.5) (STD) (2 CYL.)

...JET, MAIN (142.5) (STD) (2 CYL.)

1 100 ₽
26

3G2-1423E-48-00 ...JET, MAIN (121.3) (OPT)

...JET, MAIN (121.3) (OPT)

1 330 ₽
26

3G2-1423E-50-00 ...JET, MAIN (126.3) (OPT)

...JET, MAIN (126.3) (OPT)

1 260 ₽
26

3G2-1423E-51-00 ...JET, MAIN (128.8) (OPT)

...JET, MAIN (128.8) (OPT)

1 130 ₽
26

3G2-1423E-52-00 ...JET, MAIN (131.3) (OPT)

...JET, MAIN (131.3) (OPT)

1 130 ₽
26

3G2-1423E-53-00 ...JET, MAIN (133.8) (OPT)

...JET, MAIN (133.8) (OPT)

1 130 ₽
26

3G2-1423E-54-00 ...JET, MAIN (136.3) (OPT)

...JET, MAIN (136.3) (OPT)

1 190 ₽
26

3G2-1423E-55-00 ...JET, MAIN (138.8) (OPT)

...JET, MAIN (138.8) (OPT)

1 170 ₽
26

3G2-1423E-56-00 ...JET, MAIN (141.3) (OPT)

...JET, MAIN (141.3) (OPT)

820 ₽
26

3G2-1423E-57-00 ...JET, MAIN (143.8) (STD) (1 CYL.)

...JET, MAIN (143.8) (STD) (1 CYL.)

1 130 ₽
26

3G2-1423E-59-00 ...JET, MAIN (148.8) (OPT)

...JET, MAIN (148.8) (OPT)

1 190 ₽
27

8V0-14118-00-00 ...CAP

...CAP

730 ₽
28

80L-14932-00-00 ...SPRING, THROTTLE 2

...SPRING, THROTTLE 2

1 260 ₽
29

80L-14534-00-00 ...COLLAR

...COLLAR

850 ₽
30

80L-14535-00-00 ...COLLAR

...COLLAR

1 360 ₽
31

8X0-14133-00-00 ...SPRING, THROTTLE STOP

...SPRING, THROTTLE STOP

1 030 ₽
32

87S-8259A-00-00 ...SWITCH, CARBURETOR

...SWITCH, CARBURETOR

4 720 ₽
33

22F-14117-00-00 ...WASHER, PLUG SCREW

...WASHER, PLUG SCREW

340 ₽
34

80L-14264-00-00 ...COLLAR

...COLLAR

850 ₽
35

620-14225-00-00 ...CAP

...CAP

370 ₽
36

8Y2-14941-3D-00 ...NOZZLE, MAIN

...NOZZLE, MAIN

3 300 ₽
37

8X0-14358-00-00 ...NUT

...NUT

380 ₽
38

239-14172-08-00 ...PILOT JET, AIR (0.8) (PILOT AIR)

...PILOT JET, AIR (0.8) (PILOT AIR)

500 ₽
39

239-14172-08-00 ...PILOT JET, AIR (0.8) (MAIN AIR)

...PILOT JET, AIR (0.8) (MAIN AIR)

500 ₽
