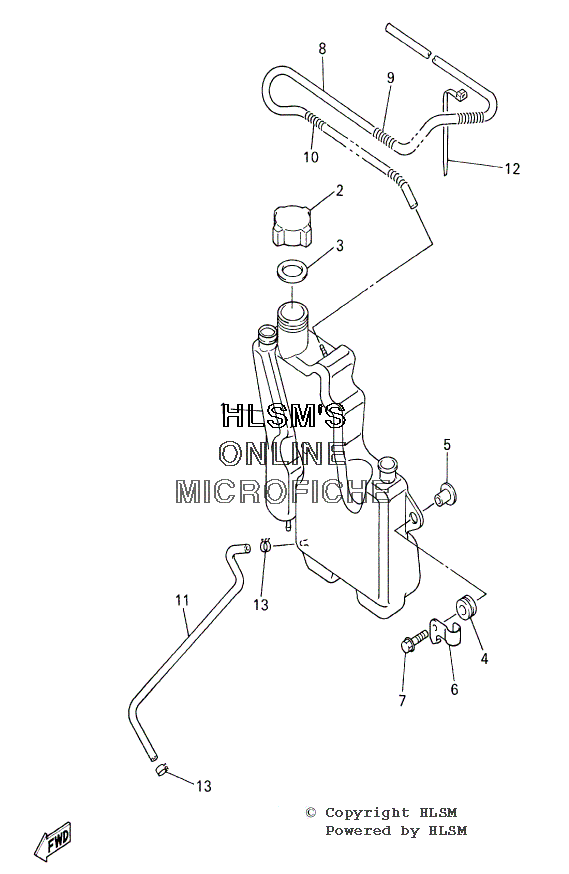

OIL TANK ASSY для Yamaha PHAZER 500 DELUXE - 2001 года выпуска
-
№АртикулНазвание
-
18DJ-21751-00-00 TANK, OILTANK, OIL
-
2863-21771-00-00 BODY, CAPBODY, CAP
-
390430-31003-00 GASKETGASKET
-
490480-14101-00 GROMMETGROMMET
-
590387-063G3-00 COLLARCOLLAR
-
690462-08244-00 CLAMPCLAMP
-
795827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
891A30-05085-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
990501-08430-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1090501-08486-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1191A30-05048-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1290464-13073-00 CLAMPCLAMP
-
1390467-09026-00 CLIPCLIP
