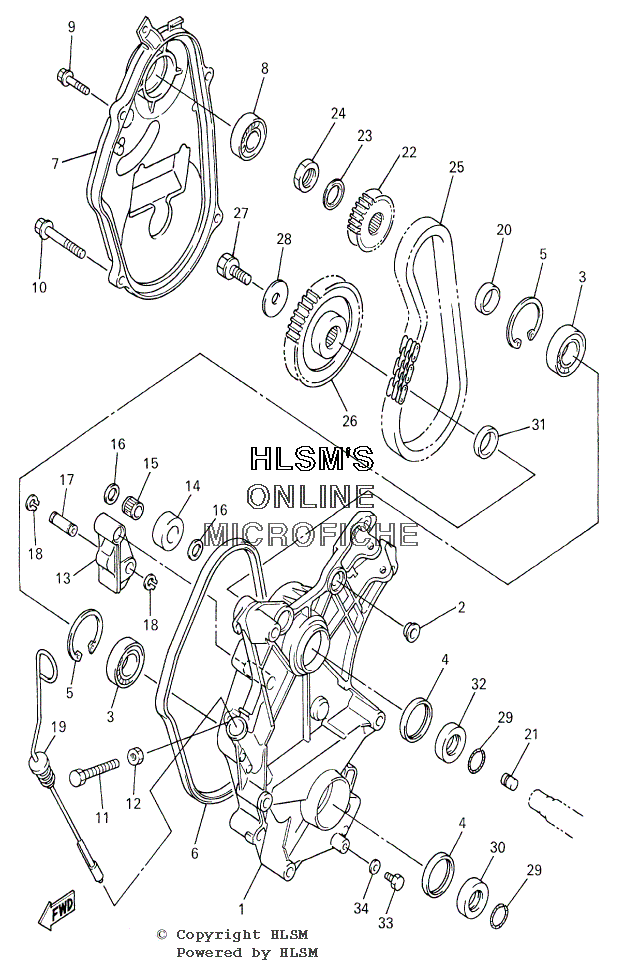

CHAINCASE ASSY для Yamaha SRX 700 - 2001 года выпуска
-
№АртикулНазвание
-
18CR-47541-01-00 HOUSING, CHAINHOUSING, CHAIN
-
290179-10679-00 NUTNUT
-
393306-20592-00 BEARINGBEARING
-
493102-35473-00 OIL SEALOIL SEAL
-
599009-52500-00 CIRCLIPCIRCLIP
-
68CR-47558-01-00 RING, HOUSINGRING, HOUSING
-
78DF-47543-00-00 CAP, HOUSINGCAP, HOUSING
-
893306-20402-00 BEARING (B6204JRC3)BEARING (B6204JRC3)
-
995827-08030-00 BOLT, FLANGEBOLT, FLANGE
-
1095827-10060-00 BOLT, FLANGEBOLT, FLANGE
-
1190101-10357-00 BOLTBOLT
-
1295307-10600-00 NUTNUT
-
138CR-47613-00-00 HOLDERHOLDER
-
148CR-47612-00-00 WHEELWHEEL
-
1593315-21227-00 BEARINGBEARING
-
1690201-127E1-00 WASHER, PLATEWASHER, PLATE
-
1790249-12227-00 PINPIN
-
1899009-12400-00 CIRCLIPCIRCLIP
-
198CR-47546-00-00 LEVEL, OILLEVEL, OIL
-
2090387-2508D-00 COLLARCOLLAR
-
2182M-17699-00-00 PLUG, OILPLUG, OIL
-
228DW-17682-30-00 SPROCKET, CHAIN DRIVE (23T)SPROCKET, CHAIN DRIVE (23T)
-
2390208-22001-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
2490170-22094-00 NUTNUT
-
2594890-09070-00 CHAIN (70L)CHAIN (70L)
-
268DW-47587-80-00 SPROCKET, CHAIN DRIVEN (38T)SPROCKET, CHAIN DRIVEN (38T)
-
2790105-10751-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2890201-10321-00 WASHER, PLATEWASHER, PLATE
-
2993210-25071-00 O-RINGO-RING
-
3090387-2508C-00 COLLARCOLLAR
-
3190387-2508B-00 COLLARCOLLAR
-
3290387-2511J-00 COLLARCOLLAR
-
3397007-08014-00 BOLTBOLT
-
3490210-08017-00 WASHER, SEALWASHER, SEAL
