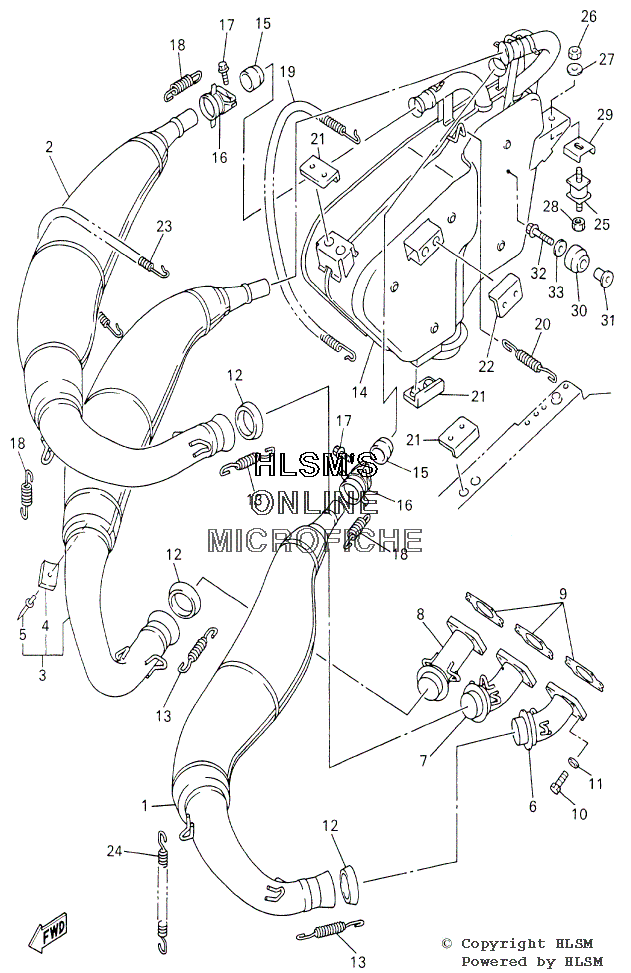

EXHAUST SYSTEM для Yamaha SRX 700 - 2001 года выпуска
-
№АртикулНазвание
-
18DF-14610-10-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
28DF-14620-10-00 EXHAUST PIPE ASSY 2EXHAUST PIPE ASSY 2
-
38DF-14630-10-00 EXHAUST PIPE ASSY 3EXHAUST PIPE ASSY 3
-
48DF-14737-00-00 ...DAMPER, MUFFLER...DAMPER, MUFFLER
-
590267-48104-00 ...RIVET, BLIND...RIVET, BLIND
-
68DF-14615-00-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
78DF-14625-00-00 JOINT, EXHAUST 2JOINT, EXHAUST 2
-
88DF-14635-00-00 JOINT, EXHAUST 3JOINT, EXHAUST 3
-
98DF-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1097017-06025-00 BOLTBOLT
-
1192907-06600-00 WASHER, PLATEWASHER, PLATE
-
128DF-14623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
1390506-20272-00 SPRING, TENSIONSPRING, TENSION
-
148DF-14640-11-00 SECOND SILENCER, MUFFLERSECOND SILENCER, MUFFLER
-
158DF-14714-10-00 GASKET, MUFFLERGASKET, MUFFLER
-
168DF-1467F-00-00 JOINT, SILENCER 3JOINT, SILENCER 3
-
1795027-08020-00 BOLT, FLANGEBOLT, FLANGE
-
1890506-20093-00 SPRING, TENSIONSPRING, TENSION
-
1990506-16504-00 SPRING, TENSIONSPRING, TENSION
-
2090506-20272-00 SPRING, TENSIONSPRING, TENSION
-
218DF-14728-00-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
2283R-14728-01-00 PROTECTOR, MUFFLER 2PROTECTOR, MUFFLER 2
-
2390506-16497-00 SPRING, TENSIONSPRING, TENSION
-
2490506-16512-00 SPRING, TENSIONSPRING, TENSION
-
258DF-14747-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
2695707-08500-00 NUT, FLANGENUT, FLANGE
-
2790201-08753-00 WASHER, PLATEWASHER, PLATE
-
2895607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
298DF-14616-10-00 WASHERWASHER
-
308DF-22891-00-00 INSULATOR, MOUNTINGINSULATOR, MOUNTING
-
3190387-063E6-00 COLLARCOLLAR
-
3290105-06597-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
3390209-06174-00 WASHERWASHER
