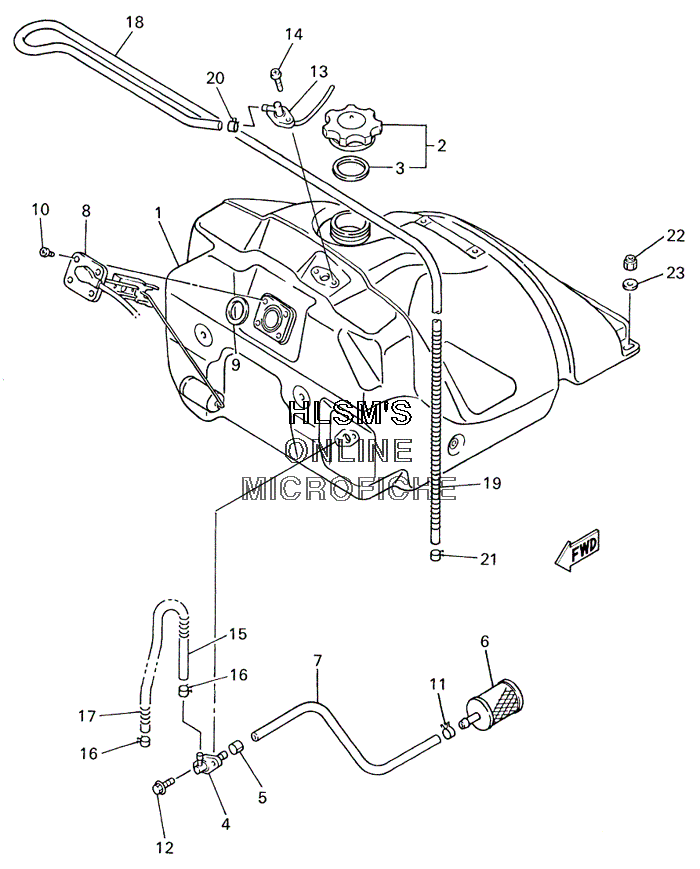

FUEL TANK ASSY для Yamaha SRX 700 - 2002 года выпуска
-
№АртикулНазвание
-
18CW-24111-10-00 TANK, FUELTANK, FUEL
-
28CW-24610-00-00 CAP ASSYCAP ASSY
-
38CW-24612-00-00 ...GASKET, CAP...GASKET, CAP
-
48CR-24301-00-00 SUCTION PIPE COMP. 1SUCTION PIPE COMP. 1
-
590468-04092-00 CLIPCLIP
-
68H5-24560-00-00 FILTER ASSYFILTER ASSY
-
78CR-24335-00-00 PIPE, SUCTION 1PIPE, SUCTION 1
-
88CW-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
993210-41041-00 O-RINGO-RING
-
1098907-05008-00 SCREW, BINDSCREW, BIND
-
1190467-11032-00 CLIPCLIP
-
1290105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
138CR-2418A-00-00 BREATHER COMP.BREATHER COMP.
-
1490149-06330-00 SCREWSCREW
-
158CR-24311-10-00 PIPE, FUEL 1PIPE, FUEL 1
-
1690467-11032-00 CLIPCLIP
-
1790501-08668-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1891A20-05115-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1990501-084J0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2090468-02078-00 CLIPCLIP
-
2190467-09026-00 CLIPCLIP
-
2295707-08300-00 NUT, FLANGENUT, FLANGE
-
2390201-08784-00 WASHER, PLATEWASHER, PLATE
