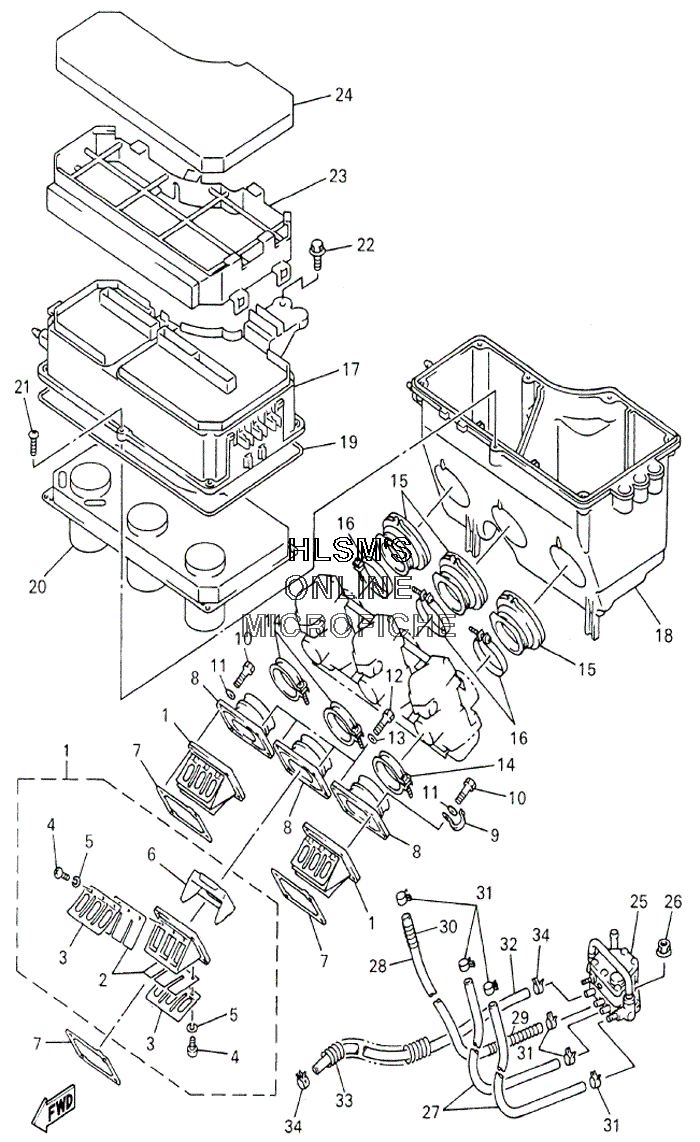

INTAKE W/ AIR BOX ASSY - FUEL PUMP для Yamaha SRX 700 - 2002 года выпуска
-
№АртикулНазвание
-
18DF-13610-00-00 REED VALVE ASSYREED VALVE ASSY
-
22KM-13613-00-00 ...REED, VALVE...REED, VALVE
-
38DF-13616-00-00 ...STOPPER, REED VALVE...STOPPER, REED VALVE
-
498502-03006-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
592902-03100-00 ...WASHER...WASHER
-
68DF-13625-00-00 ...SPACER, REED VALVE...SPACER, REED VALVE
-
78DF-13621-00-00 GASKET, VALVE SEATGASKET, VALVE SEAT
-
88DF-13555-01-00 MANIFOLD, INTAKEMANIFOLD, INTAKE
-
990462-08239-00 CLAMPCLAMP
-
1097017-06025-00 BOLTBOLT
-
1192907-06600-00 WASHER, PLATEWASHER, PLATE
-
1297017-06025-00 BOLTBOLT
-
1392907-06600-00 WASHER, PLATEWASHER, PLATE
-
1490460-56073-00 CLAMP, HOSECLAMP, HOSE
-
158DF-14453-01-00 JOINT, AIR CLEANER 1JOINT, AIR CLEANER 1
-
1690450-53061-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
178DF-14431-10-00 SILENCER, INTAKE 1SILENCER, INTAKE 1
-
188DF-14441-10-00 SILENCER, INTAKE 2SILENCER, INTAKE 2
-
198CH-14452-00-00 SEALSEAL
-
208DF-14477-00-00 PLATEPLATE
-
2190167-05043-00 SCREW, TAPPINGSCREW, TAPPING
-
2290119-06182-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
238DF-14458-00-00 GUIDEGUIDE
-
248DF-14451-00-00 ELEMENT, AIR CLEANERELEMENT, AIR CLEANER
-
258DF-24410-11-00 FUEL PUMP ASSYFUEL PUMP ASSY
-
2695707-06500-00 NUT, FLANGENUT, FLANGE
-
2790445-094K7-00 HOSE (L180)HOSE (L180)
-
288DF-14294-00-00 HOSEHOSE
-
2990501-085L6-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3090501-085L7-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3190467-09026-00 CLIPCLIP
-
3290445-11730-00 HOSE (L280)HOSE (L280)
-
3390501-08486-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
3490467-11032-00 CLIPCLIP
