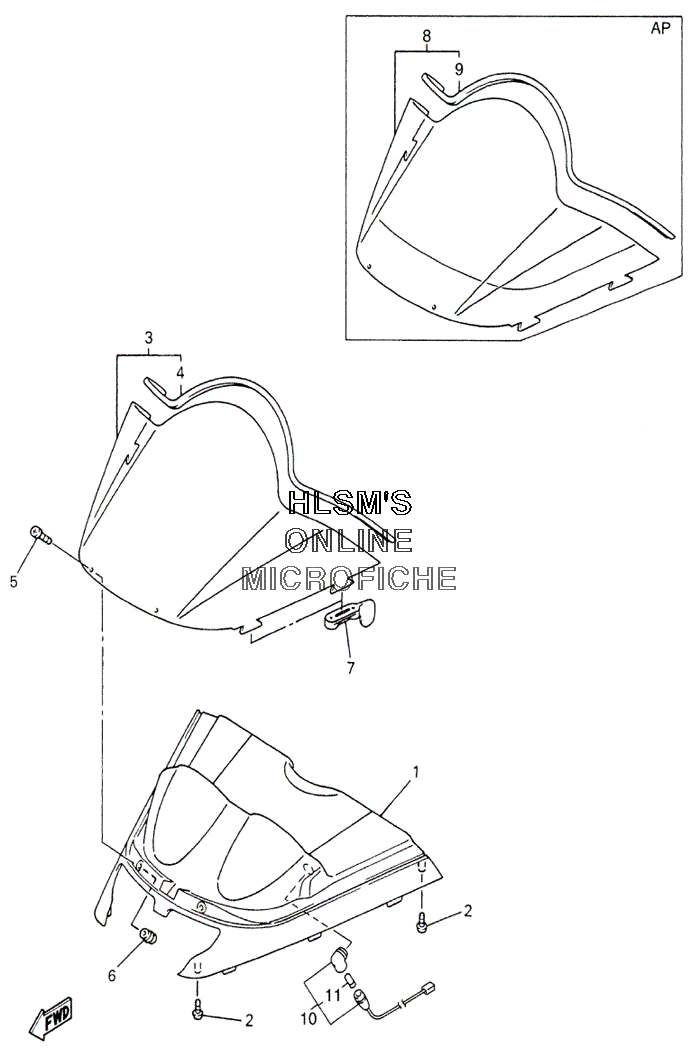

HOOD - WINDSHIELD ASSY для Yamaha SRX 700 - 2002 года выпуска
-
№АртикулНазвание
-
18DW-77251-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
297707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
38DN-772A0-00-00 WINDSCREEN COMP.WINDSCREEN COMP.
-
48CV-77213-00-00 ...TRIM, UPPER...TRIM, UPPER
-
590150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
690179-05523-00 NUTNUT
-
782H-77223-00-00 FASTNERFASTNER
-
88DN-77210-20-00 WINDSHIELD COMP. (OPT)WINDSHIELD COMP. (OPT)
-
98CV-77213-00-00 ...TRIM, UPPER (OPT)...TRIM, UPPER (OPT)
-
108DN-83530-00-00 PILOT LIGHT ASSYPILOT LIGHT ASSY
-
115GH-83516-00-00 ...BULB (14V-1.7W)...BULB (14V-1.7W)
