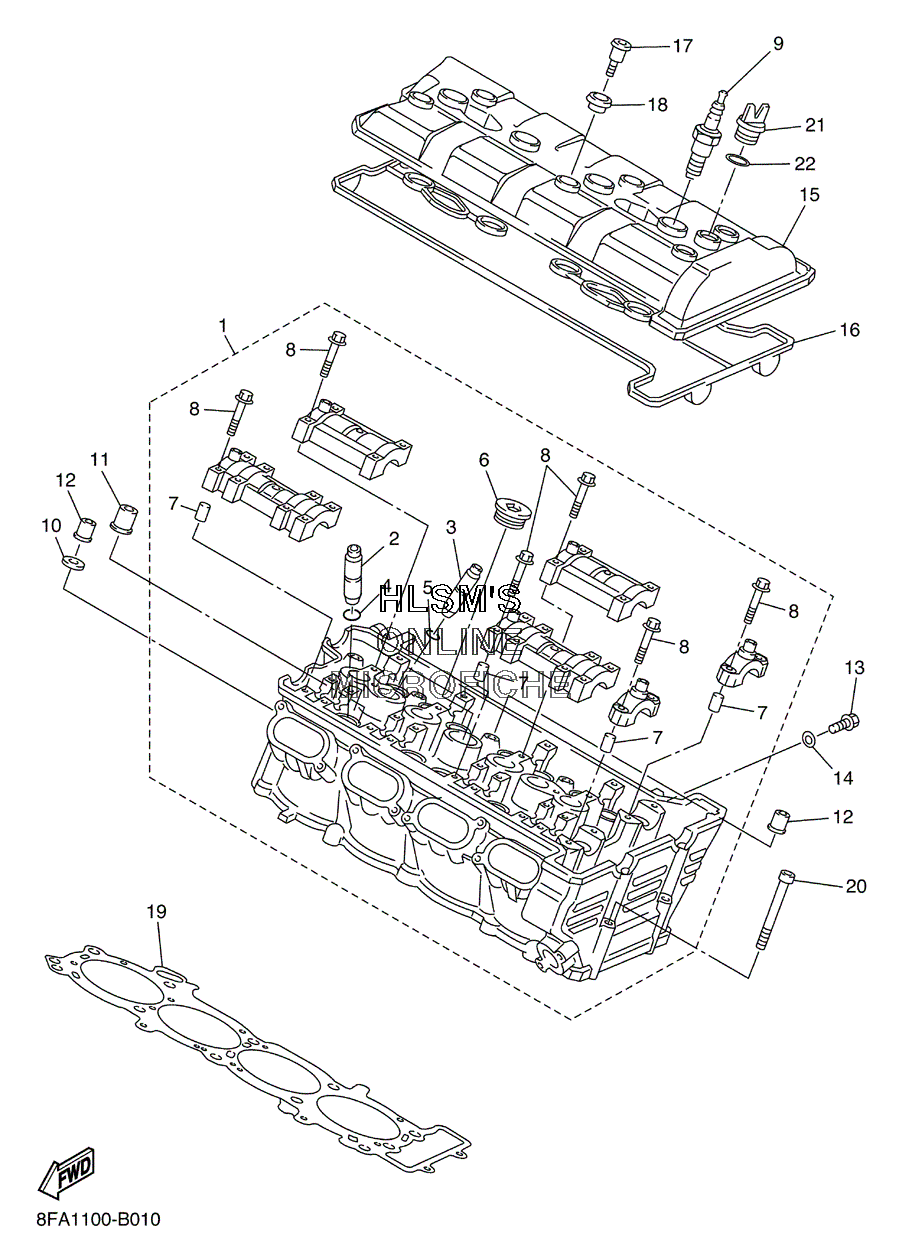

CYLINDER W/ HEAD ASSY для Yamaha RX-1 MOUNTAIN - 2003 года выпуска
-
№АртикулНазвание
-
18FA-11102-01-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
23TJ-11133-10-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
31WG-11133-11-00 ...GUIDE, INTAKE VALVE...GUIDE, INTAKE VALVE
-
493440-07149-00 ...CIRCLIP...CIRCLIP
-
593440-10153-00 ...CIRCLIP...CIRCLIP
-
690340-27129-00 ...PLUG, STRAIGHT SCREW...PLUG, STRAIGHT SCREW
-
791808-16023-00 ...PIN, DOWEL...PIN, DOWEL
-
890105-06026-00 ...BOLT WASHER BASED...BOLT WASHER BASED
-
9NGK-CR9E0-00-00 PLUG, SPARK (NGK R CR9E)PLUG, SPARK (NGK R CR9E)
-
1090201-10013-00 WASHER, PLATEWASHER, PLATE
-
1190179-10006-00 NUTNUT
-
1290179-10414-00 NUT SPEC'L SHAPENUT SPEC'L SHAPE
-
1395027-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1490430-06014-00 GASKETGASKET
-
158FA-11191-00-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
168FA-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
1790109-066F0-00 BOLTBOLT
-
184KG-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
198FA-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
2091317-06060-00 BOLTBOLT
-
213Y1-15363-00-00 PLUG, OILPLUG, OIL
-
2293210-19123-00 O-RINGO-RING
