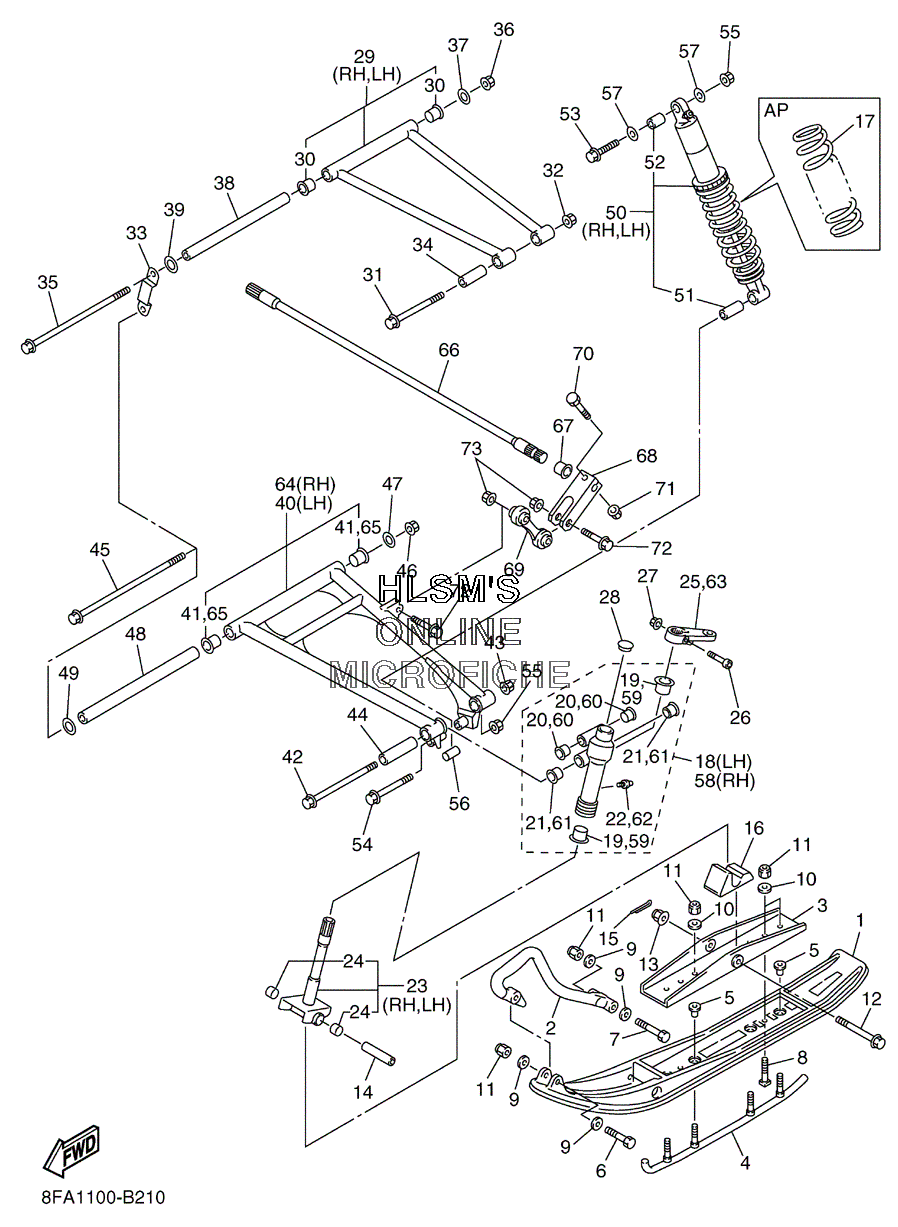

SUSPENSION - FRONT W/ SKI ASSY для Yamaha RX-1 MOUNTAIN - 2003 года выпуска
-
№АртикулНазвание
-
18EN-F3711-00-00 SKI 1SKI 1
-
28EK-F3712-00-00 REINFORCEMENT, HEAD (OPT) (DPBMC) (DEEP PURPLISH BLUE METALLIC)REINFORCEMENT, HEAD (OPT) (DPBMC) (DEEP PURPLISH BLUE METALLIC)
-
28DM-F3712-00-00 REINFORCEMENT, HEAD (OPT) (DNMB) (DARK GRAY METALLIC)REINFORCEMENT, HEAD (OPT) (DNMB) (DARK GRAY METALLIC)
-
38EK-F3766-00-00 SADDLE 1SADDLE 1
-
48EN-F3731-00-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLTBOLT
-
79702M-08100-00 BOLTBOLT
-
890108-08002-00 BOLT, SQUAREBOLT, SQUARE
-
990201-08784-00 WASHER, PLATEWASHER, PLATE
-
1090201-086P8-00 WASHER, PLATEWASHER, PLATE
-
119570M-08300-00 NUT, FLANGENUT, FLANGE
-
1290105-10712-00 BOLT, FLANGEBOLT, FLANGE
-
1395607-10200-00 NUT, U FLANGENUT, U FLANGE
-
1490387-1012H-00 COLLARCOLLAR
-
1591401-20020-00 PIN, COTTERPIN, COTTER
-
168CR-23743-10-00 STOPPER 1STOPPER 1
-
178FA-23760-00-00 SPRING ASSY 1 (K=2.1) (OPT)SPRING ASSY 1 (K=2.1) (OPT)
-
178FA-23760-10-00 SPRING ASSY 1 (K=1.9) (OPT)SPRING ASSY 1 (K=1.9) (OPT)
-
178FA-23760-20-00 SPRING ASSY 1 (K=1.7) (OPT)SPRING ASSY 1 (K=1.7) (OPT)
-
188FA-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1990381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
2090381-15088-00 ...BUSH, SOLID...BUSH, SOLID
-
2190381-18N50-00 ...BUSH, SOLID...BUSH, SOLID
-
2293700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
238FA-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2490384-16251-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
258FA-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
2691317-08045-00 BOLTBOLT
-
2795607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
283YK-22472-40-00 CAP, CASECAP, CASE
-
298FA-23540-00-00 FRONT UPPER ARM COMP. (LEFT AND RIGHT) (RX10H)FRONT UPPER ARM COMP. (LEFT AND RIGHT) (RX10H)
-
298EP-23540-00-00 FRONT UPPER ARM COMP. (LEFT AND RIGHT) (RX10RH)FRONT UPPER ARM COMP. (LEFT AND RIGHT) (RX10RH)
-
3090381-15088-00 ...BUSH, SOLID...BUSH, SOLID
-
3190105-10N51-00 BOLT, FLANGEBOLT, FLANGE
-
3295607-10200-00 NUT, U FLANGENUT, U FLANGE
-
338FA-23737-00-00 WASHER 1WASHER 1
-
3490387-10N58-00 COLLARCOLLAR
-
3590105-10N53-00 BOLT, FLANGEBOLT, FLANGE
-
3695607-10200-00 NUT, U FLANGENUT, U FLANGE
-
3790201-106F2-00 WASHER, PLATEWASHER, PLATE
-
3890387-10N52-00 COLLARCOLLAR
-
3990209-15N50-00 WASHERWASHER
-
408FA-23570-00-00 FRONT LOWER ARM COMP. (LEFT) (RX10H)FRONT LOWER ARM COMP. (LEFT) (RX10H)
-
408EP-23570-00-00 FRONT LOWER ARM COMP. (LEFT) (RX10RH)FRONT LOWER ARM COMP. (LEFT) (RX10RH)
-
4190381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4290105-12N54-00 BOLT, FLANGEBOLT, FLANGE
-
4395607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4490387-12N54-00 COLLARCOLLAR
-
4590105-10N52-00 BOLT, FLANGEBOLT, FLANGE
-
4695607-10200-00 NUT, U FLANGENUT, U FLANGE
-
4790201-106F2-00 WASHER, PLATEWASHER, PLATE
-
4890387-10N53-00 COLLARCOLLAR
-
4990209-15N50-00 WASHERWASHER
-
508FA-2376A-00-00 ABSORBER ASSY 1 (RX10H)ABSORBER ASSY 1 (RX10H)
-
508EP-2376A-00-00 ABSORBER ASSY 1 (RX10RH)ABSORBER ASSY 1 (RX10RH)
-
5190383-12N50-00 ...BUSH, FORMED...BUSH, FORMED
-
528FA-2331R-00-00 ...DAMPER, BUSH B...DAMPER, BUSH B
-
5390105-10232-00 BOLT, FLANGEBOLT, FLANGE
-
5490105-10392-00 BOLT, FLANGEBOLT, FLANGE
-
5595607-10200-00 NUT, U FLANGENUT, U FLANGE
-
5690387-10N57-00 COLLARCOLLAR
-
5790201-106F2-00 WASHER, PLATEWASHER, PLATE
-
588FA-23502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
5990381-25115-00 ...BUSH, SOLID...BUSH, SOLID
-
6090381-15088-00 ...BUSH, SOLID...BUSH, SOLID
-
6190381-18N50-00 ...BUSH, SOLID...BUSH, SOLID
-
6293700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
638FA-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
648FA-23580-00-00 FRONT LOWER ARM COMP. (RIGHT) (RX10H)FRONT LOWER ARM COMP. (RIGHT) (RX10H)
-
648EP-23580-00-00 FRONT LOWER ARM COMP. (RIGHT) (RX10RH)FRONT LOWER ARM COMP. (RIGHT) (RX10RH)
-
6590381-16N51-00 ...BUSH, SOLID...BUSH, SOLID
-
668FA-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
678FA-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
688FA-2386L-00-00 ARM, STABILIZER 1ARM, STABILIZER 1
-
698FA-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
7090101-06765-00 BOLTBOLT
-
7195604-06200-00 .NUT, U FLANGE.NUT, U FLANGE
-
7295814-08030-00 BOLT, FLANGEBOLT, FLANGE
-
7395604-08200-00 NUT, U FLANGENUT, U FLANGE
