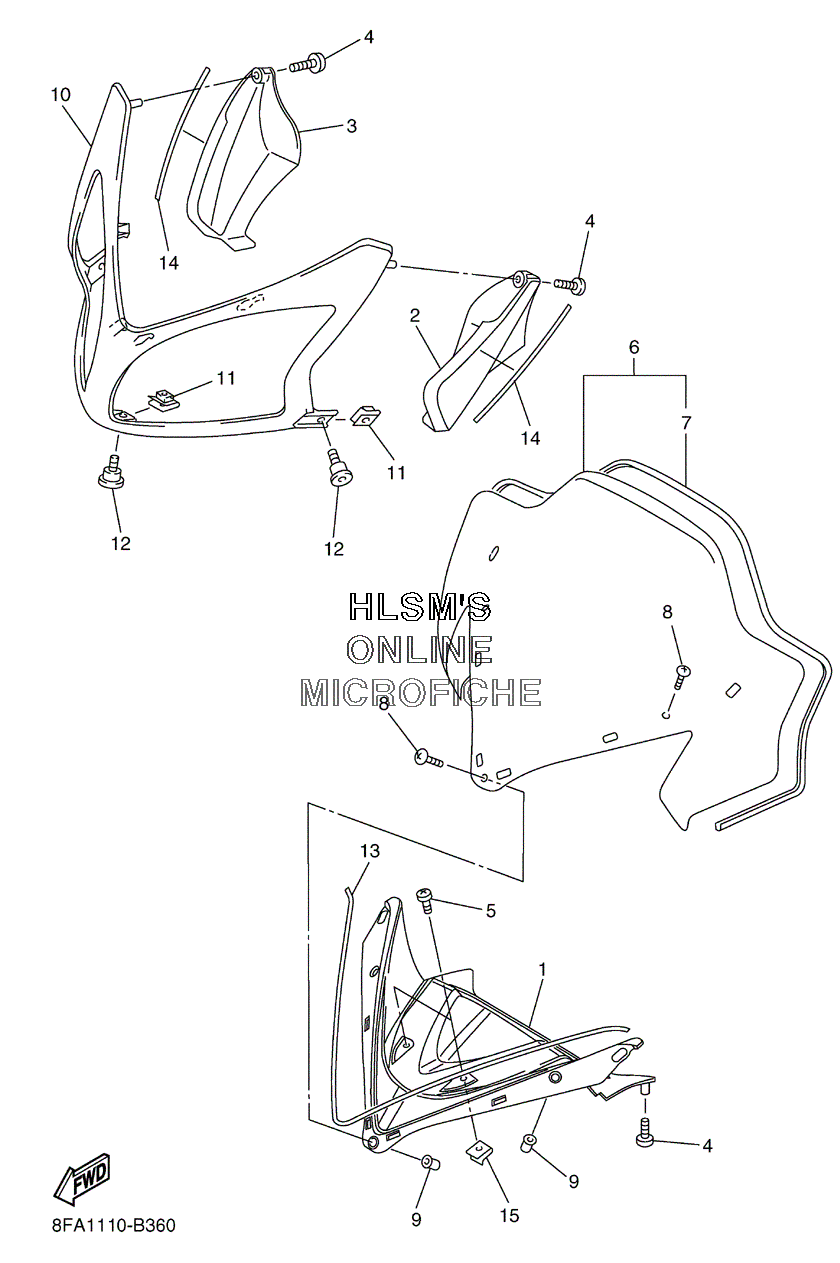

HOOD - WINDSHIELD ASSY для Yamaha RX-1 MOUNTAIN - 2003 года выпуска
-
№АртикулНазвание
-
18FA-77251-00-00 COVER, HEADLIGHTCOVER, HEADLIGHT
-
28FA-77185-00-00 PLATE 1PLATE 1
-
38FA-77186-00-00 PLATE 2PLATE 2
-
497707-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
598907-06014-00 SCREW, BINDSCREW, BIND
-
68FA-K7210-00-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
78FA-K7213-00-00 ...TRIM, UPPER...TRIM, UPPER
-
890150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
990179-05523-00 NUT SPEC'L SHAPENUT SPEC'L SHAPE
-
108FA-77231-00-00 FAIRINGFAIRING
-
1190183-06053-00 NUT, SPRINGNUT, SPRING
-
1290149-06263-00 SCREW SPEC'L SHAPESCREW SPEC'L SHAPE
-
138FA-77214-00-00 TRIM, LOWERTRIM, LOWER
-
148FA-77215-00-00 TRIM 3TRIM 3
-
1590183-06053-00 NUT, SPRINGNUT, SPRING
