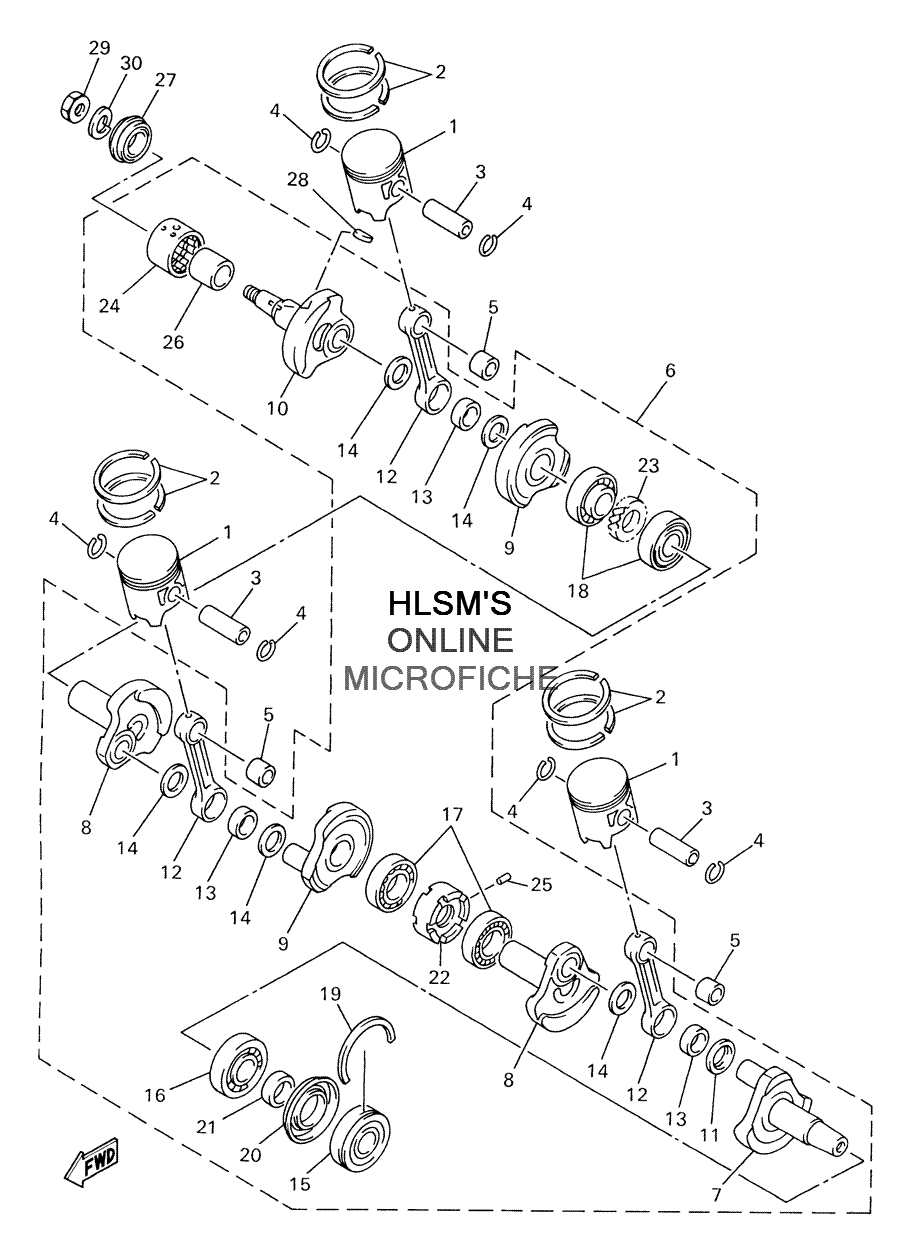

CRANKSHAFT W/ PISTON ASSY для Yamaha SX VENOM ER - 2004 года выпуска
-
№АртикулНазвание
-
18DG-11631-00-A0 PISTON (STD)PISTON (STD)
-
28DG-11603-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
38H8-11633-00-00 PIN, PISTONPIN, PISTON
-
493450-21053-00 CIRCLIP, INNERCIRCLIP, INNER
-
593310-320S0-00 BEARINGBEARING
-
68CH-11400-12-00 CRANKSHAFT ASSY.CRANKSHAFT ASSY.
-
78CH-11412-00-00 ...CRANK 1...CRANK 1
-
88CH-11422-00-00 ...CRANK 2...CRANK 2
-
98CH-11432-00-00 ...CRANK 3...CRANK 3
-
108CH-11442-00-00 ...CRANK 4...CRANK 4
-
118CH-11685-00-00 ...WASHER, CRANK PIN...WASHER, CRANK PIN
-
128CH-11651-00-00 ...ROD, CONNECTING...ROD, CONNECTING
-
1393310-527S9-00 ...BEARING...BEARING
-
1490201-272U2-00 ...WASHER, PLATE...WASHER, PLATE
-
1593306-30715-00 ...BEARING...BEARING
-
1693306-30716-00 ...BEARING...BEARING
-
1793306-28201-00 ...BEARING...BEARING
-
1893306-28202-00 ...BEARING...BEARING
-
1993440-80023-00 ...CIRCLIP, OUTER...CIRCLIP, OUTER
-
2093103-45179-00 ...OIL SEAL...OIL SEAL
-
218CH-11478-00-00 ...COLLAR...COLLAR
-
228CH-11515-00-00 ...SEAL, LABYRINTH 1...SEAL, LABYRINTH 1
-
238CH-11434-00-00 ...GEAR, CRANK SHAFT...GEAR, CRANK SHAFT
-
2493390-00023-00 ...BEARING...BEARING
-
2591609-30010-00 ...PIN, SPRING...PIN, SPRING
-
268DF-1142A-01-00 ...BEARING...BEARING
-
2793103-32153-00 OIL SEAL, SW-TYPEOIL SEAL, SW-TYPE
-
2890280-05033-00 KEY, WOODRUFFKEY, WOODRUFF
-
2990170-16425-00 NUTNUT
-
3092907-16600-00 WASHERWASHER
