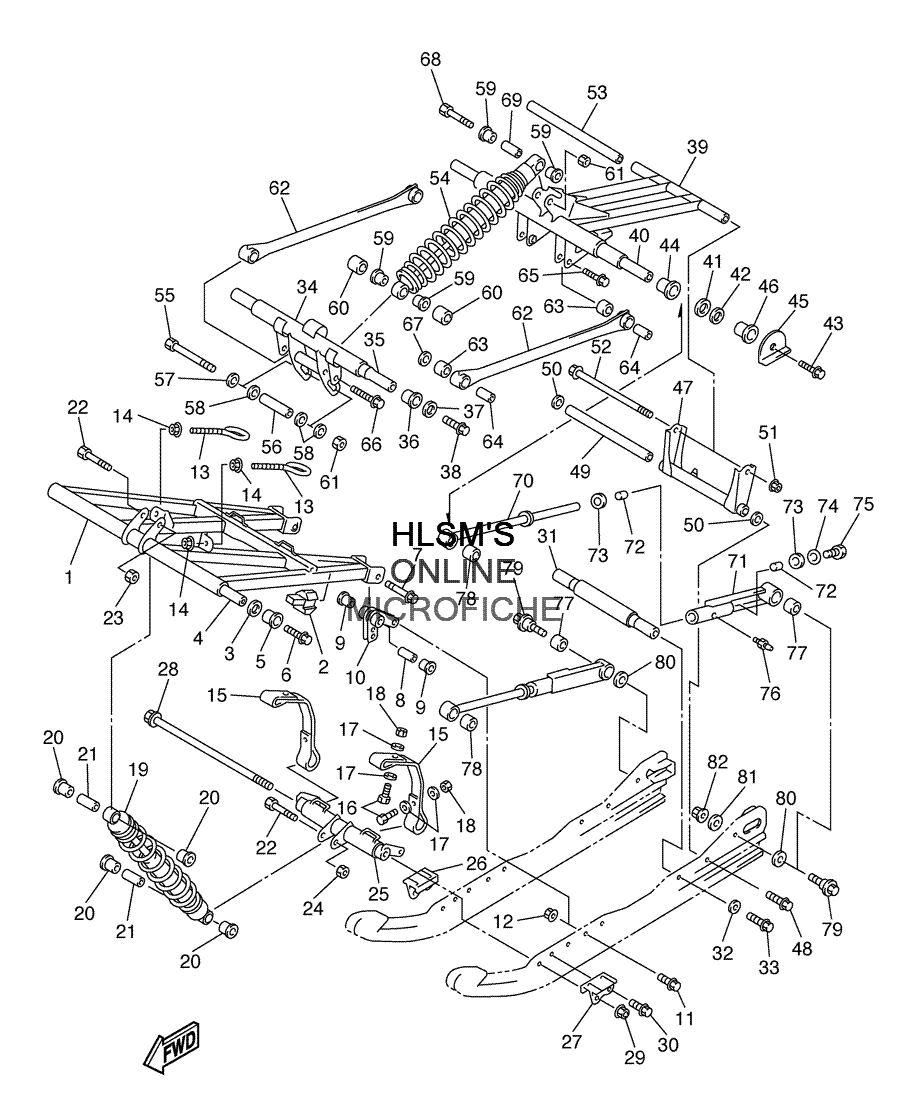

SUSPENSION - TORQUE ARM ASSY для Yamaha SX VENOM ER - 2004 года выпуска
-
№АртикулНазвание
-
18CV-47331-01-00 ARM, PIVOT 1ARM, PIVOT 1
-
28DF-47456-10-00 DAMPER 1DAMPER 1
-
390201-210U0-00 WASHER, PLATEWASHER, PLATE
-
48CR-47465-00-00 SHAFT 1SHAFT 1
-
590381-19111-00 BUSH, SOLIDBUSH, SOLID
-
690105-103A1-00 BOLT, FLANGEBOLT, FLANGE
-
790105-10769-00 BOLT, FLANGEBOLT, FLANGE
-
890387-1009T-00 COLLARCOLLAR
-
990381-15112-00 BUSH, SOLIDBUSH, SOLID
-
108CR-47415-00-00 BRACKET 1BRACKET 1
-
1195817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
1295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
138CR-47448-00-00 HOOK 3HOOK 3
-
1495707-08500-00 NUT, FLANGENUT, FLANGE
-
158CR-47495-00-00 STOPPER 1STOPPER 1
-
1697007-06025-00 BOLTBOLT
-
1790201-06747-00 WASHER, PLATEWASHER, PLATE
-
1895707-06300-00 NUT, FLANGENUT, FLANGE
-
198DG-47481-00-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
2090387-145G7-00 COLLARCOLLAR
-
2190387-105G5-00 COLLARCOLLAR
-
2290101-10738-00 BOLTBOLT
-
2390185-10110-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2495607-10100-00 NUT, UNUT, U
-
258EA-47418-10-00 BRACKET 4BRACKET 4
-
268DF-47463-01-00 BRACKET 5BRACKET 5
-
278DF-47464-01-00 BRACKET 6BRACKET 6
-
2890105-10023-00 BOLT, FLANGEBOLT, FLANGE
-
2995607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3090105-08450-00 BOLT, FLANGEBOLT, FLANGE
-
318CR-47486-00-00 SHAFT 4SHAFT 4
-
3290201-100L3-00 WASHER, PLATEWASHER, PLATE
-
3390105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
348CR-47416-10-00 BRACKET 2BRACKET 2
-
358CR-47488-00-00 SHAFT 6SHAFT 6
-
3690381-22099-00 BUSH, SOLIDBUSH, SOLID
-
3790201-207J5-00 WASHER, PLATEWASHER, PLATE
-
3890105-103A1-00 BOLT, FLANGEBOLT, FLANGE
-
398CR-47332-10-00 ARM, PIVOT 2ARM, PIVOT 2
-
408CR-47475-00-00 SHAFT 2SHAFT 2
-
4190201-251G8-00 WASHER, PLATEWASHER, PLATE
-
4290201-250T6-00 WASHER, PLATEWASHER, PLATE
-
4390105-103A1-00 BOLT, FLANGEBOLT, FLANGE
-
4490381-28108-00 BUSH, SOLIDBUSH, SOLID
-
458CR-47426-21-00 BRACKET, REAR 1BRACKET, REAR 1
-
468CR-47425-00-00 BRACKET, REAR 2BRACKET, REAR 2
-
478CR-47417-01-00 BRACKET 3BRACKET 3
-
4890105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
4982M-47485-02-00 SHAFT 3SHAFT 3
-
5090201-10136-00 WASHER, PLATEWASHER, PLATE
-
5195607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5295827-08220-00 BOLT, FLANGEBOLT, FLANGE
-
5390387-083G6-00 COLLARCOLLAR
-
548DS-47480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
558AC-4631K-00-00 BOLT, ADJUSTINGBOLT, ADJUSTING
-
5690387-1009S-00 COLLARCOLLAR
-
5790201-103U4-00 WASHER, PLATEWASHER, PLATE
-
5890201-100U1-00 WASHER, PLATEWASHER, PLATE
-
5990381-14101-00 BUSH, SOLIDBUSH, SOLID
-
6090387-1404R-00 COLLARCOLLAR
-
6195607-10100-00 NUT, UNUT, U
-
628CR-47494-01-00 ROD, RELAYROD, RELAY
-
6390381-14109-00 BUSH, SOLIDBUSH, SOLID
-
6490387-100X3-00 COLLARCOLLAR
-
6590105-10739-00 BOLT, FLANGEBOLT, FLANGE
-
6690105-10436-00 BOLT, FLANGEBOLT, FLANGE
-
6790201-100U1-00 WASHER, PLATEWASHER, PLATE
-
6890101-10738-00 BOLTBOLT
-
6990387-105G5-00 COLLARCOLLAR
-
708CR-4745A-01-00 ROD, CONTROL 1ROD, CONTROL 1
-
718CR-4745B-00-00 ROD, CONTROL 2ROD, CONTROL 2
-
7290384-16251-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
7390202-16232-00 WASHER, PLATEWASHER, PLATE
-
7490201-106F2-00 WASHER, PLATEWASHER, PLATE
-
7597027-10025-00 BOLTBOLT
-
7693700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
7790380-22232-00 BUSH, SOLIDBUSH, SOLID
-
7890380-28235-00 BUSH, SOLIDBUSH, SOLID
-
798DF-47367-00-00 SCREW, REAR PIVOTSCREW, REAR PIVOT
-
8090201-100S2-00 WASHER, PLATEWASHER, PLATE
-
8190201-101U2-00 WASHER, PLATEWASHER, PLATE
-
8295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
