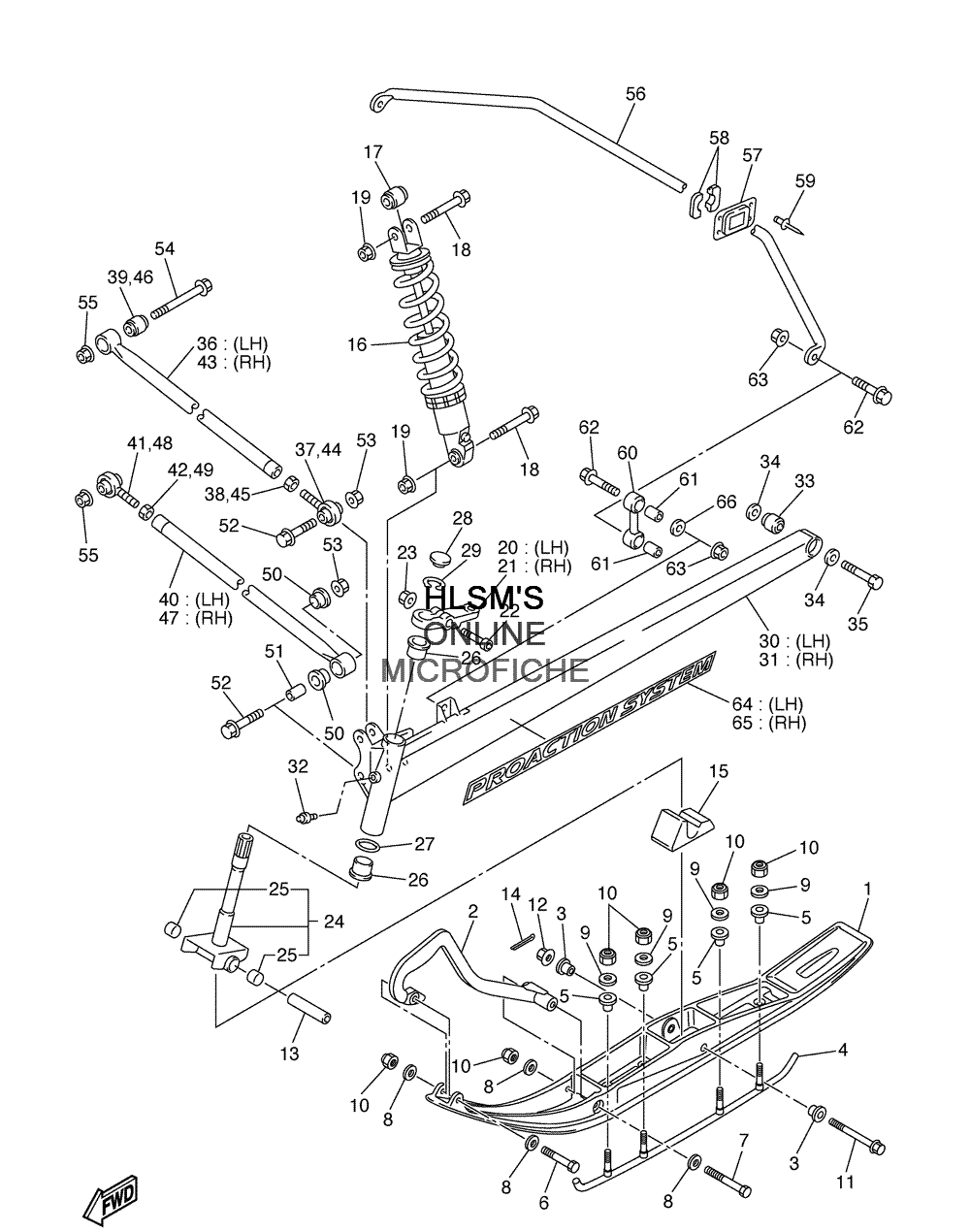

SUSPENSION - FRONT W/ SKI ASSY для Yamaha SX VENOM ER - 2004 года выпуска
-
№АртикулНазвание
-
18EX-F3711-00-00 SKI 1SKI 1
-
28FB-F3712-00-00 RED HANDLE PLASTICRED HANDLE PLASTIC
-
38EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
48EK-F3731-00-00 RUNNER 1RUNNER 1
-
58EX-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLTBOLT
-
79702M-08100-00 BOLTBOLT
-
890201-08784-00 WASHER, PLATEWASHER, PLATE
-
990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
109570M-08300-00 NUT, FLANGENUT, FLANGE
-
1190105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390387-1012H-00 COLLARCOLLAR
-
1491401-20020-00 PIN, COTTERPIN, COTTER
-
158CR-23743-10-00 STOPPER 1STOPPER 1
-
168EX-2376A-00-00 ABSORBER ASSY. 1ABSORBER ASSY. 1
-
178CR-2376B-00-00 BUSHBUSH
-
1890105-100A9-00 BOLT, FLANGEBOLT, FLANGE
-
1995607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
208EK-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
218EK-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
2291314-08035-00 BOLTBOLT
-
2395604-08200-00 NUT, U FLANGENUT, U FLANGE
-
248EK-23803-00-00 COLUMN, SKI ASSY.COLUMN, SKI ASSY.
-
2590384-16251-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
2690381-25115-00 BUSH, SOLIDBUSH, SOLID
-
2790201-301G3-00 WASHER, PLATEWASHER, PLATE
-
288CR-23741-10-00 CAP 1CAP 1
-
2999009-25400-00 CIRCLIPCIRCLIP
-
308DM-2382E-10-00 ARM, FRONT 1ARM, FRONT 1
-
318DM-2382F-10-00 ARM, FRONT 2ARM, FRONT 2
-
3293700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
338CR-2516A-00-00 DAMPERDAMPER
-
3490201-120T5-00 WASHER, PLATEWASHER, PLATE
-
3590101-12780-00 BOLTBOLT
-
368EK-2384E-00-00 ARM, CONTROL 1ARM, CONTROL 1
-
378EK-23823-00-00 JOINT 2JOINT 2
-
3895317-12600-00 NUTNUT
-
398EK-23775-00-00 INSERTINSERT
-
408EK-2384F-00-00 ARM, CONTROL 2ARM, CONTROL 2
-
418EK-23832-00-00 JOINT 3JOINT 3
-
4295314-14600-00 NUTNUT
-
438EK-2384E-00-00 ARM, CONTROL 1ARM, CONTROL 1
-
448EK-23823-00-00 JOINT 2JOINT 2
-
4595317-12600-00 NUTNUT
-
468EK-23775-00-00 INSERTINSERT
-
478EK-2384F-00-00 ARM, CONTROL 2ARM, CONTROL 2
-
488EK-23832-00-00 JOINT 3JOINT 3
-
4995314-14600-00 NUTNUT
-
5090381-17110-00 BUSH, SOLIDBUSH, SOLID
-
5190387-1009K-00 COLLARCOLLAR
-
5290105-100A9-00 BOLT, FLANGEBOLT, FLANGE
-
5395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5490105-12010-00 BOLT, FLANGEBOLT, FLANGE
-
5595607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
568CR-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
578CR-2386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
588CR-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
5990267-47186-00 RIVET, BLINDRIVET, BLIND
-
608CR-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6190387-087L3-00 COLLARCOLLAR
-
6290105-08345-00 BOLT, FLANGEBOLT, FLANGE
-
6395607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
648EA-77371-30-00 EMBLEM 15EMBLEM 15
-
658EA-77372-30-00 EMBLEM 16EMBLEM 16
