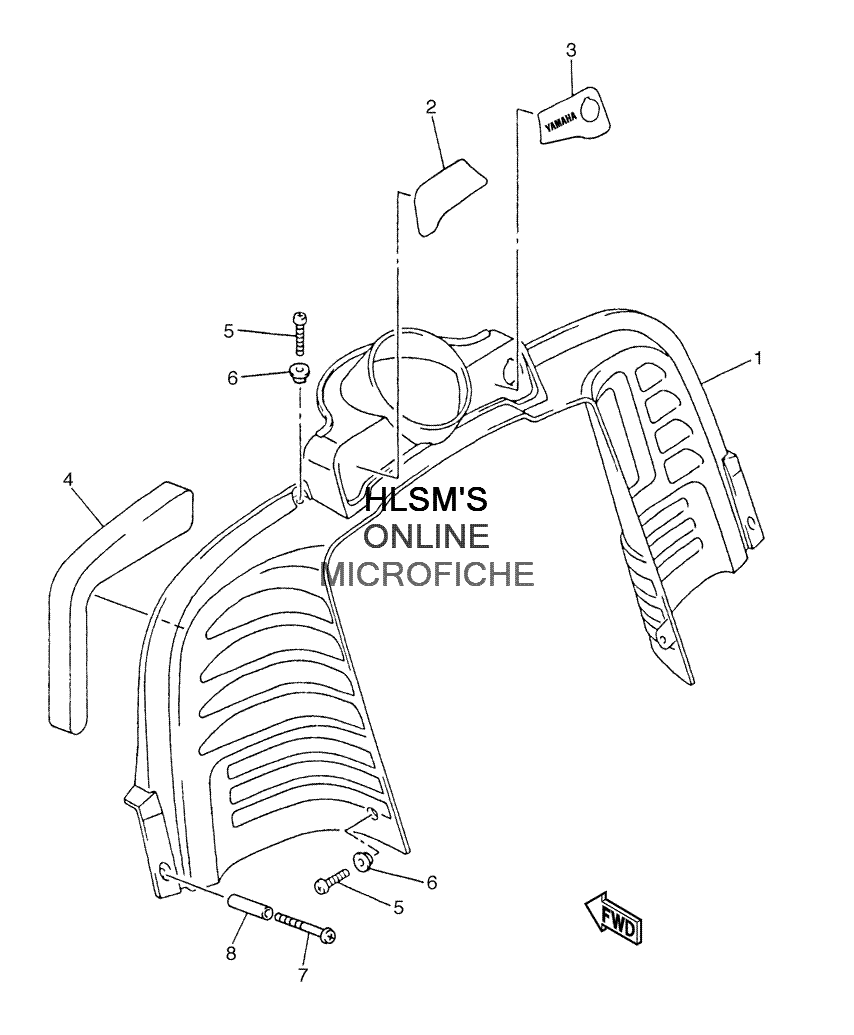

CONSOLE ASSY для Yamaha VENTURE 700 - 2004 года выпуска
-
№АртикулНазвание
-
18CR-77711-01-00 PANEL, INSTRUMENTPANEL, INSTRUMENT
-
28FE-77741-00-00 INDICATOR 1INDICATOR 1
-
38FE-77742-00-00 INDICATOR 2INDICATOR 2
-
48EK-77279-00-00 DAMPER, NOISE 19DAMPER, NOISE 19
-
598907-06012-00 SCREW, BINDSCREW, BIND
-
690387-0611K-00 COLLARCOLLAR
-
790154-06077-00 SCREW, BINDINGSCREW, BINDING
-
890387-06036-00 COLLARCOLLAR
