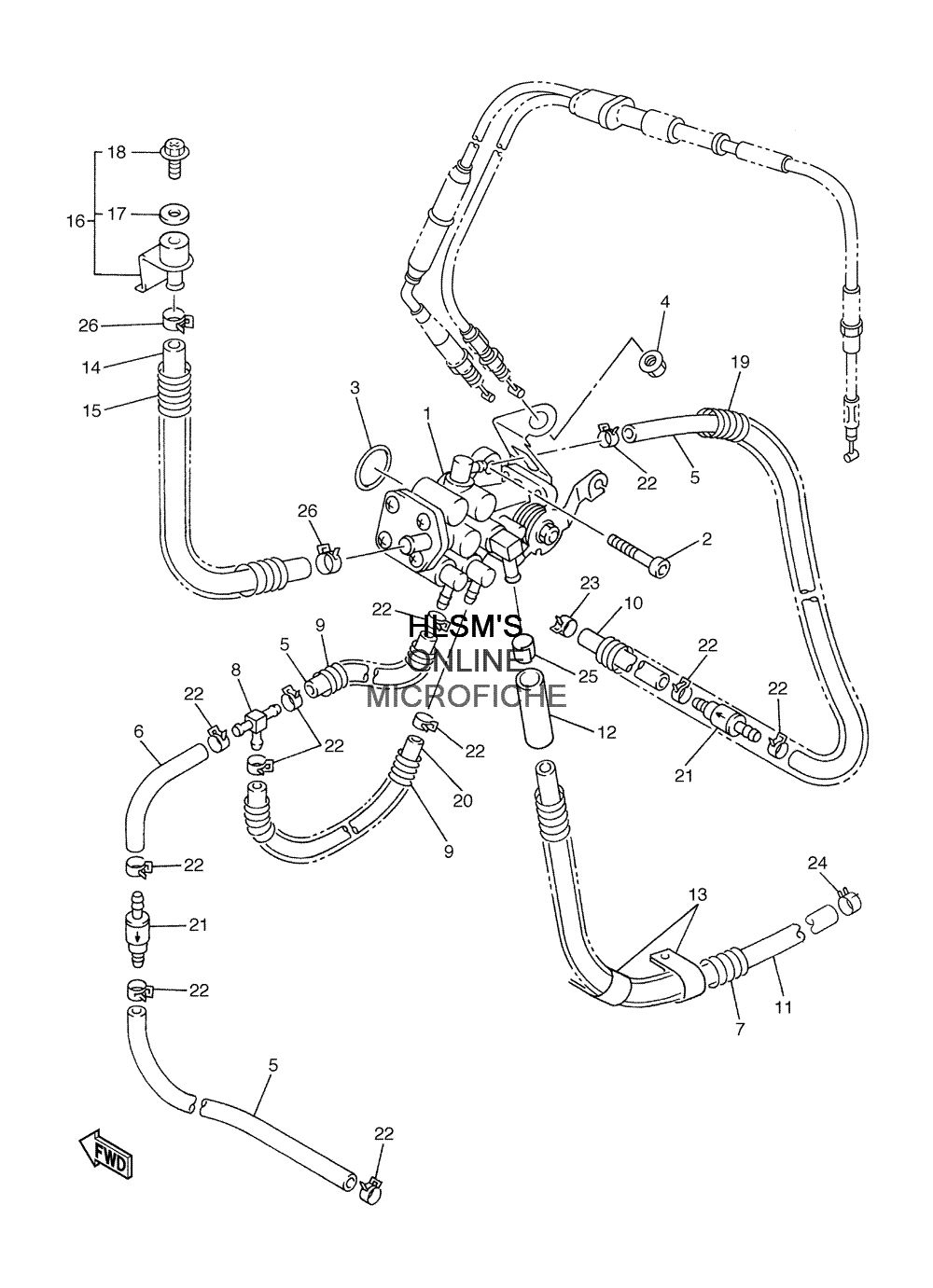

OIL PUMP ASSY для Yamaha VENTURE 700 - 2004 года выпуска
-
№АртикулНазвание
-
18DN-13100-00-00 OIL PUMP ASSY.OIL PUMP ASSY.
-
290110-05227-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
393210-191A1-00 O-RINGO-RING
-
495707-08300-00 NUT, FLANGENUT, FLANGE
-
591A30-03010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
691A30-03006-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
790501-080A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
88H0-24379-00-00 JOINTJOINT
-
990501-06028-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1091A30-03008-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1191A30-05048-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1290445-131H1-00 HOSEHOSE
-
1390462-08237-00 CLAMPCLAMP
-
1491A30-07010-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
1590501-083G4-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
168DF-13185-00-00 BOLT, BREATHERBOLT, BREATHER
-
178DF-13187-00-00 ...GASKET, BREATHER BOLT...GASKET, BREATHER BOLT
-
188DF-13573-00-00 ...BOLT 1...BOLT 1
-
1990501-08486-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2091A30-03012-00 TUBE, FLEXIBLE VINYLTUBE, FLEXIBLE VINYL
-
218CH-1316A-00-00 CHECK VALVE ASSY.CHECK VALVE ASSY.
-
2290468-02025-00 CLIPCLIP
-
2390467-07055-00 CLIP, SCISSORCLIP, SCISSOR
-
2490467-09026-00 CLIP, SCISSORCLIP, SCISSOR
-
2590468-02078-00 CLIPCLIP
-
2690467-11032-00 CLIP, SCISSORCLIP, SCISSOR
