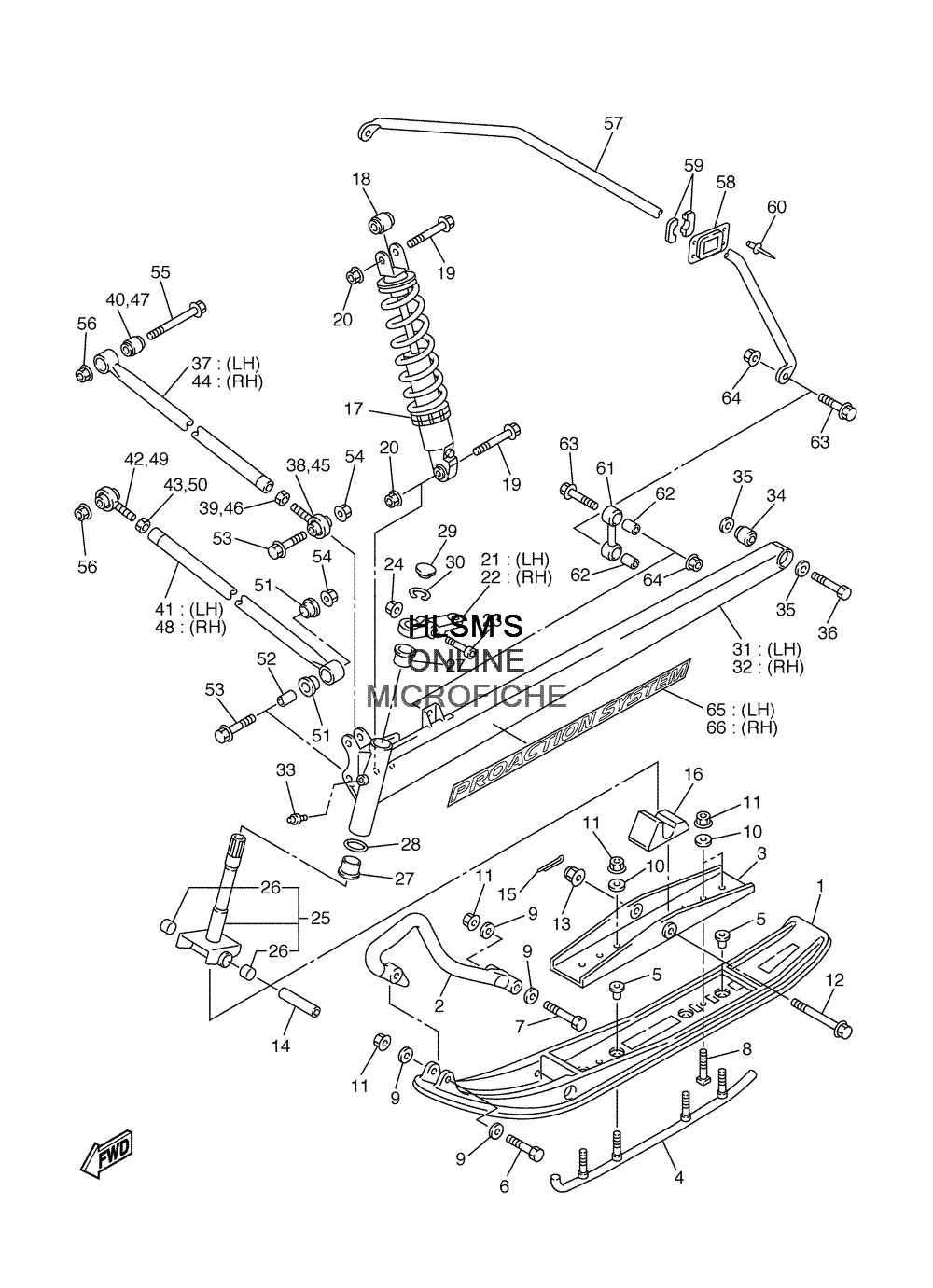

SUSPENSION - FRONT W/ SKI ASSY для Yamaha VENTURE 700 - 2004 года выпуска
-
№АртикулНазвание
-
18EK-F3711-00-00 SKI 1SKI 1
-
28DM-F3712-00-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
38EK-F3766-00-00 SADDLE 1SADDLE 1
-
48EK-F3731-00-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLTBOLT
-
79702M-08100-00 BOLTBOLT
-
890108-08002-00 BOLT, SQUAREBOLT, SQUARE
-
990201-08784-00 WASHER, PLATEWASHER, PLATE
-
1090201-086P8-00 WASHER, PLATEWASHER, PLATE
-
119570M-08300-00 NUT, FLANGENUT, FLANGE
-
1290105-10712-00 BOLT, FLANGEBOLT, FLANGE
-
1395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1490387-1012H-00 COLLARCOLLAR
-
1591401-20020-00 PIN, COTTERPIN, COTTER
-
168CR-23743-10-00 STOPPER 1STOPPER 1
-
178EX-2376A-00-00 ABSORBER ASSY. 1ABSORBER ASSY. 1
-
188CR-2376B-00-00 BUSHBUSH
-
1990105-100A9-00 BOLT, FLANGEBOLT, FLANGE
-
2095607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
218EK-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
228EK-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
2391314-08035-00 BOLTBOLT
-
2495604-08200-00 NUT, U FLANGENUT, U FLANGE
-
258EK-23803-00-00 COLUMN, SKI ASSY.COLUMN, SKI ASSY.
-
2690384-16251-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
2790381-25115-00 BUSH, SOLIDBUSH, SOLID
-
2890201-301G3-00 WASHER, PLATEWASHER, PLATE
-
298CR-23741-10-00 CAP 1CAP 1
-
3099009-25400-00 CIRCLIPCIRCLIP
-
318DM-2382E-10-00 ARM, FRONT 1ARM, FRONT 1
-
328DM-2382F-10-00 ARM, FRONT 2ARM, FRONT 2
-
3393700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
348CR-2516A-00-00 DAMPERDAMPER
-
3590201-120T5-00 WASHER, PLATEWASHER, PLATE
-
3690101-12780-00 BOLTBOLT
-
378EK-2384E-00-00 ARM, CONTROL 1ARM, CONTROL 1
-
388EK-23823-00-00 JOINT 2JOINT 2
-
3995317-12600-00 NUTNUT
-
408EK-23775-00-00 INSERTINSERT
-
418EK-2384F-00-00 ARM, CONTROL 2ARM, CONTROL 2
-
428EK-23832-00-00 JOINT 3JOINT 3
-
4395314-14600-00 NUTNUT
-
448EK-2384E-00-00 ARM, CONTROL 1ARM, CONTROL 1
-
458EK-23823-00-00 JOINT 2JOINT 2
-
4695317-12600-00 NUTNUT
-
478EK-23775-00-00 INSERTINSERT
-
488EK-2384F-00-00 ARM, CONTROL 2ARM, CONTROL 2
-
498EK-23832-00-00 JOINT 3JOINT 3
-
5095314-14600-00 NUTNUT
-
5190381-17110-00 BUSH, SOLIDBUSH, SOLID
-
5290387-1009K-00 COLLARCOLLAR
-
5390105-100A9-00 BOLT, FLANGEBOLT, FLANGE
-
5495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5590105-12010-00 BOLT, FLANGEBOLT, FLANGE
-
5695607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
578CW-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
588CR-2386H-00-00 COVER, STABILIZER FRONTCOVER, STABILIZER FRONT
-
598CW-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
6090267-47186-00 RIVET, BLINDRIVET, BLIND
-
618CR-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6290387-087L3-00 COLLARCOLLAR
-
6390105-08345-00 BOLT, FLANGEBOLT, FLANGE
-
6495607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
658EA-77371-30-00 EMBLEM 15EMBLEM 15
-
668EA-77372-30-00 EMBLEM 16EMBLEM 16
