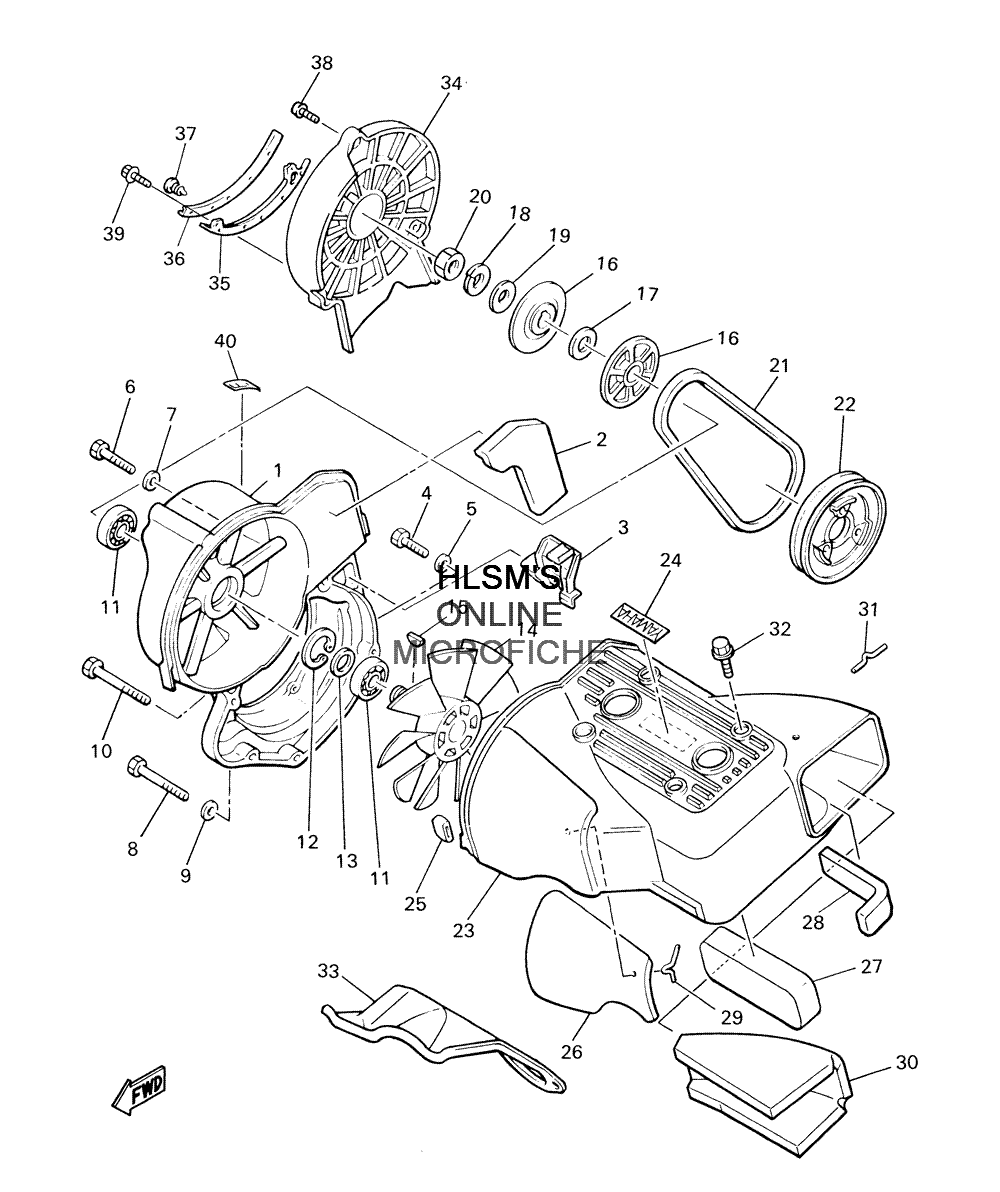

AIR SHROUD W/ FAN для Yamaha VK 540 III - 2004 года выпуска
-
№АртикулНазвание
-
188F-12621-02-00 CASE, FANCASE, FAN
-
28Y0-12679-00-00 DAMPER, SHROUD 6DAMPER, SHROUD 6
-
38Y0-12658-00-00 DAMPER, AIR SHROUD 1DAMPER, AIR SHROUD 1
-
497027-08040-00 BOLTBOLT
-
592907-08600-00 WASHER, PLATEWASHER, PLATE
-
697027-08055-00 BOLTBOLT
-
792907-08600-00 WASHER, PLATEWASHER, PLATE
-
897027-08075-00 BOLTBOLT
-
992907-08600-00 WASHER, PLATEWASHER, PLATE
-
1097027-08075-00 BOLTBOLT
-
1193306-20315-00 BEARING (B6203)BEARING (B6203)
-
1299009-40500-00 CIRCLIP, R-TYPECIRCLIP, R-TYPE
-
1390201-17713-00 WASHER, PLATEWASHER, PLATE
-
148H8-12611-01-00 FANFAN
-
1590280-05014-00 KEY, WOODRUFFKEY, WOODRUFF
-
168H8-12619-01-00 PULLEY 2PULLEY 2
-
1790214-17018-00 WASHER, CLAW (1.0T)WASHER, CLAW (1.0T)
-
1790214-17017-00 WASHER, CLAW (0.5T)WASHER, CLAW (0.5T)
-
1892907-16100-00 WASHERWASHER
-
1990201-17713-00 WASHER, PLATEWASHER, PLATE
-
2090170-16425-00 NUTNUT
-
218H8-12612-00-00 BELTBELT
-
228H8-12618-01-00 PULLEY 1PULLEY 1
-
238H8-12651-02-00 AIR SHROUD, CYLINDER 1AIR SHROUD, CYLINDER 1
-
2499236-00080-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
-
258H8-12658-00-00 DAMPER, AIR SHROUD 1DAMPER, AIR SHROUD 1
-
268H8-12659-00-00 DAMPER, AIR SHROUD 2DAMPER, AIR SHROUD 2
-
278H8-12669-00-00 DAMPER, AIR SHROUD 4DAMPER, AIR SHROUD 4
-
288V8-12678-00-00 DAMPER, AIR SHROUD 5DAMPER, AIR SHROUD 5
-
2991401-16025-00 PIN, COTTERPIN, COTTER
-
308AT-12679-00-00 DAMPER, SHROUD 6DAMPER, SHROUD 6
-
3191401-16025-00 PIN, COTTERPIN, COTTER
-
3290119-06108-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
338H8-12652-00-00 AIR SHROUD, CYLINDER 2AIR SHROUD, CYLINDER 2
-
348L0-12616-00-00 COVER, FAN CASECOVER, FAN CASE
-
358Y0-12637-02-00 STAY 1STAY 1
-
368Y0-12687-02-00 DAMPER,DUCT 4DAMPER,DUCT 4
-
3790269-05051-00 RIVETRIVET
-
3898907-06025-00 SCREW, BINDSCREW, BIND
-
3995807-06025-00 BOLT, FLANGEBOLT, FLANGE
-
408K4-12628-00-00 LABEL, CAUTIONLABEL, CAUTION
