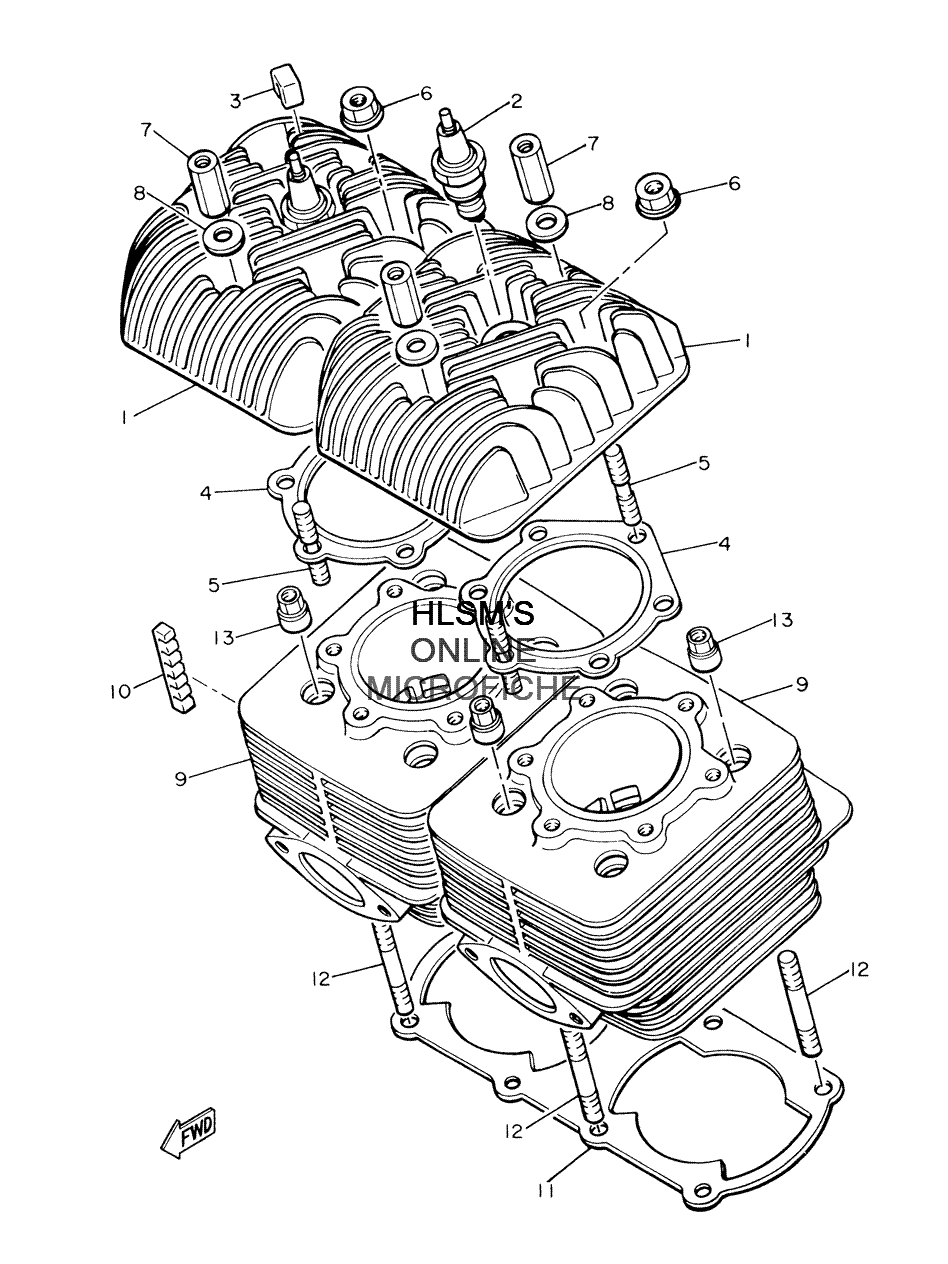

CYLINDER W/ HEAD ASSY для Yamaha VK 540 III - 2004 года выпуска
-
№АртикулНазвание
-
18R6-11111-00-00 HEAD, CYLINDER 1HEAD, CYLINDER 1
-
2NGK-BR9ES-01-PC PLUG, SPARK (NGK BR9ES)PLUG, SPARK (NGK BR9ES)
-
383R-11161-00-00 ABSORBER 1ABSORBER 1
-
483R-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
590116-08104-00 BOLT, STUDBOLT, STUD
-
695707-08500-00 NUT, FLANGENUT, FLANGE
-
790179-08269-00 NUTNUT
-
890201-08100-00 WASHER, PLATEWASHER, PLATE
-
983R-11311-00-00 CYLINDER 1CYLINDER 1
-
1083R-11162-00-00 ABSORBER 2ABSORBER 2
-
1189N-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
1290116-08302-00 BOLT, STUDBOLT, STUD
-
1390179-08268-00 NUTNUT
Все узлы модели:
- AIR SHROUD W/ FAN
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CONSOLE ASSY
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- • CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - STEERING GATE
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL PUMP ASSY
- OIL PUMP DRIVE GEAR
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- REVERSE ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ TRACK
- SUSPENSION - RAIL ASSY EXTENSIONS
- SUSPENSION - TORQUE ARM ASSY W/ RAIL ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
