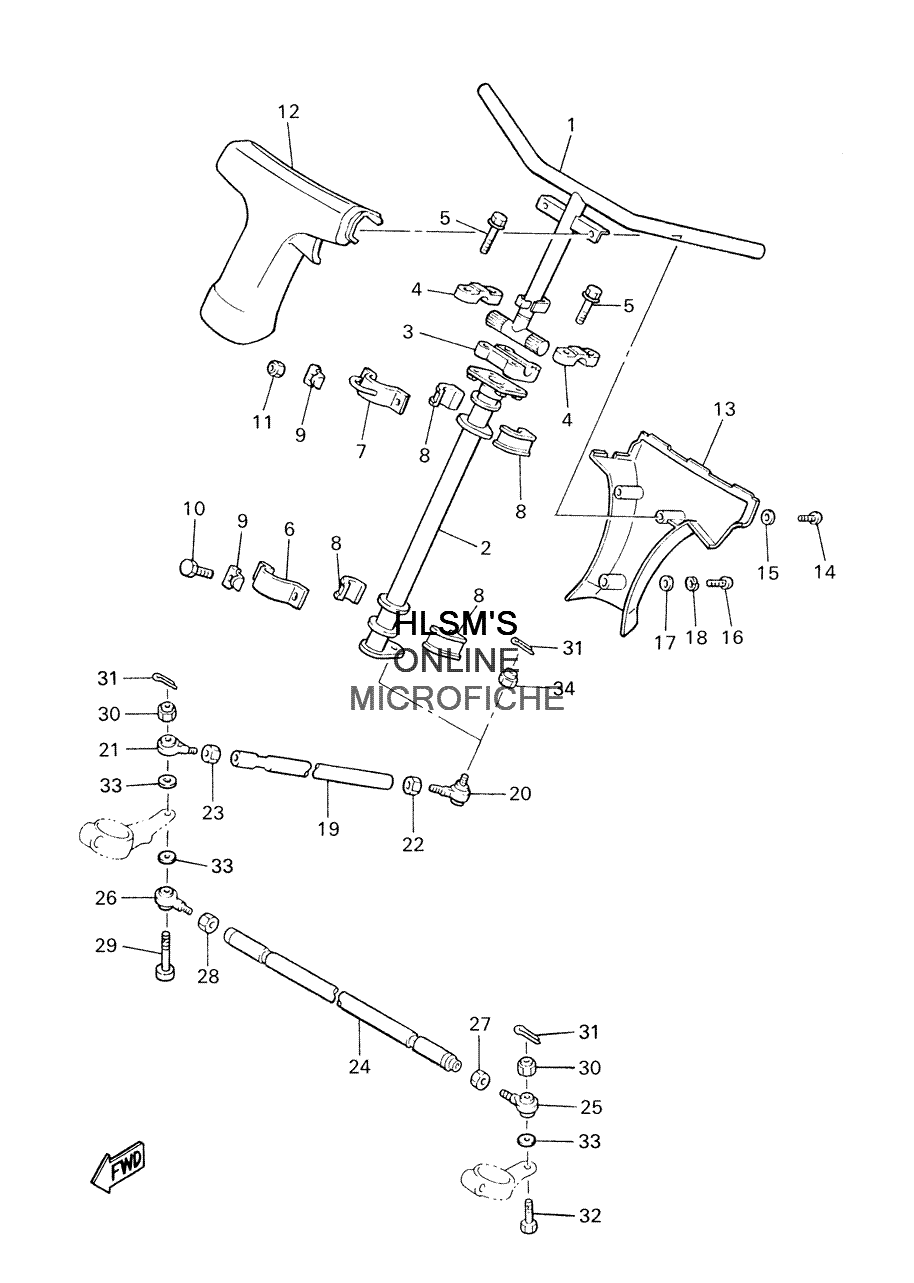

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha VK 540 III - 2004 года выпуска
-
№АртикулНазвание
-
18AU-23811-00-00 COLUMN, STEERINGCOLUMN, STEERING
-
28AT-23813-01-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
38G5-23814-00-00 HOLDER,HANDLE UNDERHOLDER,HANDLE UNDER
-
48K1-23814-00-00 HOLDER, HANDLEHOLDER, HANDLE
-
595827-08055-00 BOLT, FLANGEBOLT, FLANGE
-
684M-23868-00-00 BRACKET, STEERING LOWERBRACKET, STEERING LOWER
-
784M-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
88F3-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
990215-08262-00 WASHER, LOCKWASHER, LOCK
-
1097017-08016-00 BOLTBOLT
-
1195707-08300-00 NUT, FLANGENUT, FLANGE
-
128W9-23815-00-00 PAD, STEERINGPAD, STEERING
-
138W9-23817-00-00 PAD, STEERINGPAD, STEERING
-
1498507-05030-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1592907-05600-00 WASHER, PLATEWASHER, PLATE
-
1698507-05008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1792907-05200-00 WASHERWASHER
-
1892907-05100-00 WASHER, SPRINGWASHER, SPRING
-
198AT-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
2086X-23841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
2187S-23847-00-00 JOINT, UNIVERSAL 3 (L.H. THREAD)JOINT, UNIVERSAL 3 (L.H. THREAD)
-
2295307-10700-00 NUTNUT
-
2390170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
248AT-23831-00-00 ROD, TIEROD, TIE
-
2587S-23845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2687S-23847-00-00 JOINT, UNIVERSAL 3 (L.H. THREAD)JOINT, UNIVERSAL 3 (L.H. THREAD)
-
2795307-10700-00 NUTNUT
-
2890170-10186-00 NUT (L.H. THREAD)NUT (L.H. THREAD)
-
2990102-10067-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
3095707-10300-00 NUT, FLANGENUT, FLANGE
-
3191401-25020-00 PIN, COTTERPIN, COTTER
-
3290102-10044-00 BOLT, WITH HOLEBOLT, WITH HOLE
-
3390201-08759-00 WASHER, PLATEWASHER, PLATE
-
3490185-10085-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
