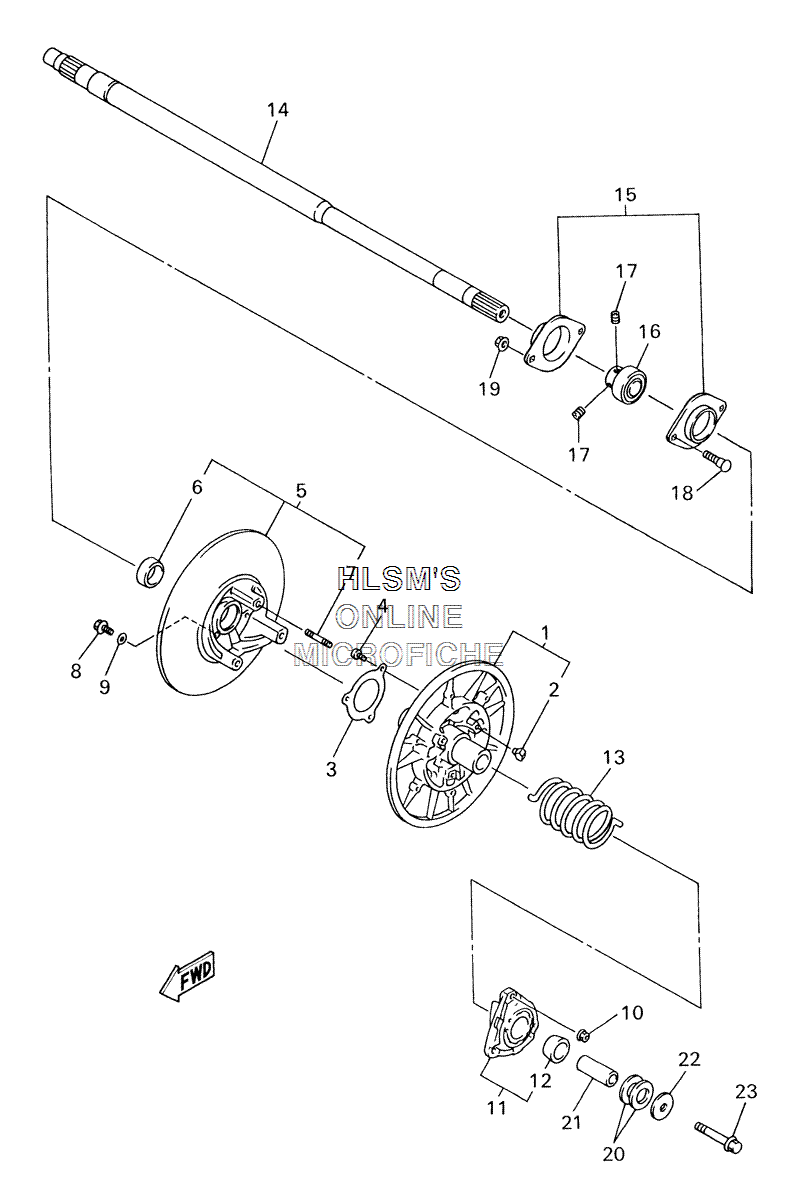

CLUTCH - DRIVEN W/ DRIVE AXLE для Yamaha SX VENOM - 2006 года выпуска
-
№АртикулНазвание
-
18CR-17660-20-00 SECONDARY FIXED SHEAVE COMP.SECONDARY FIXED SHEAVE COMP.
-
28AV-17688-10-00 ...SHOE, RAMP...SHOE, RAMP
-
38BV-17656-00-00 STOPPER, HOLDERSTOPPER, HOLDER
-
490154-06062-00 SCREW, BINDINGSCREW, BINDING
-
58BU-17670-20-00 SECONDARY SLIDING SHEAVESECONDARY SLIDING SHEAVE
-
690384-38243-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
795617-08630-00 ...BOLT, STUD...BOLT, STUD
-
890105-06734-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
990201-061H1-00 WASHER, PLATE (T=0.5) (OPT)WASHER, PLATE (T=0.5) (OPT)
-
990201-06037-00 WASHER, PLATE (T=1.0) (OPT)WASHER, PLATE (T=1.0) (OPT)
-
1090179-08655-00 NUTNUT
-
118BV-17604-71-00 SEAT SPRING SETSEAT SPRING SET
-
1290384-38243-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
1390508-536A9-00 SPRING, TORSION (RED)SPRING, TORSION (RED)
-
148CR-17681-10-00 SHAFT, SECONDARYSHAFT, SECONDARY
-
158CR-47631-01-00 HOUSING, BEARINGHOUSING, BEARING
-
1693399-99943-00 BEARINGBEARING
-
1790113-06064-00 BOLT, SETBOLT, SET
-
1890109-083G2-00 BOLTBOLT
-
1995707-08500-00 NUT, FLANGENUT, FLANGE
-
2090201-225A4-00 WASHER, PLATE (T=1.0) (OPT)WASHER, PLATE (T=1.0) (OPT)
-
2090201-222F0-00 WASHER, PLATE (T=0.5) (OPT)WASHER, PLATE (T=0.5) (OPT)
-
2190387-1407L-00 COLLARCOLLAR
-
2290201-141A3-00 WASHER, PLATEWASHER, PLATE
-
2390105-14766-00 BOLT, FLANGEBOLT, FLANGE
