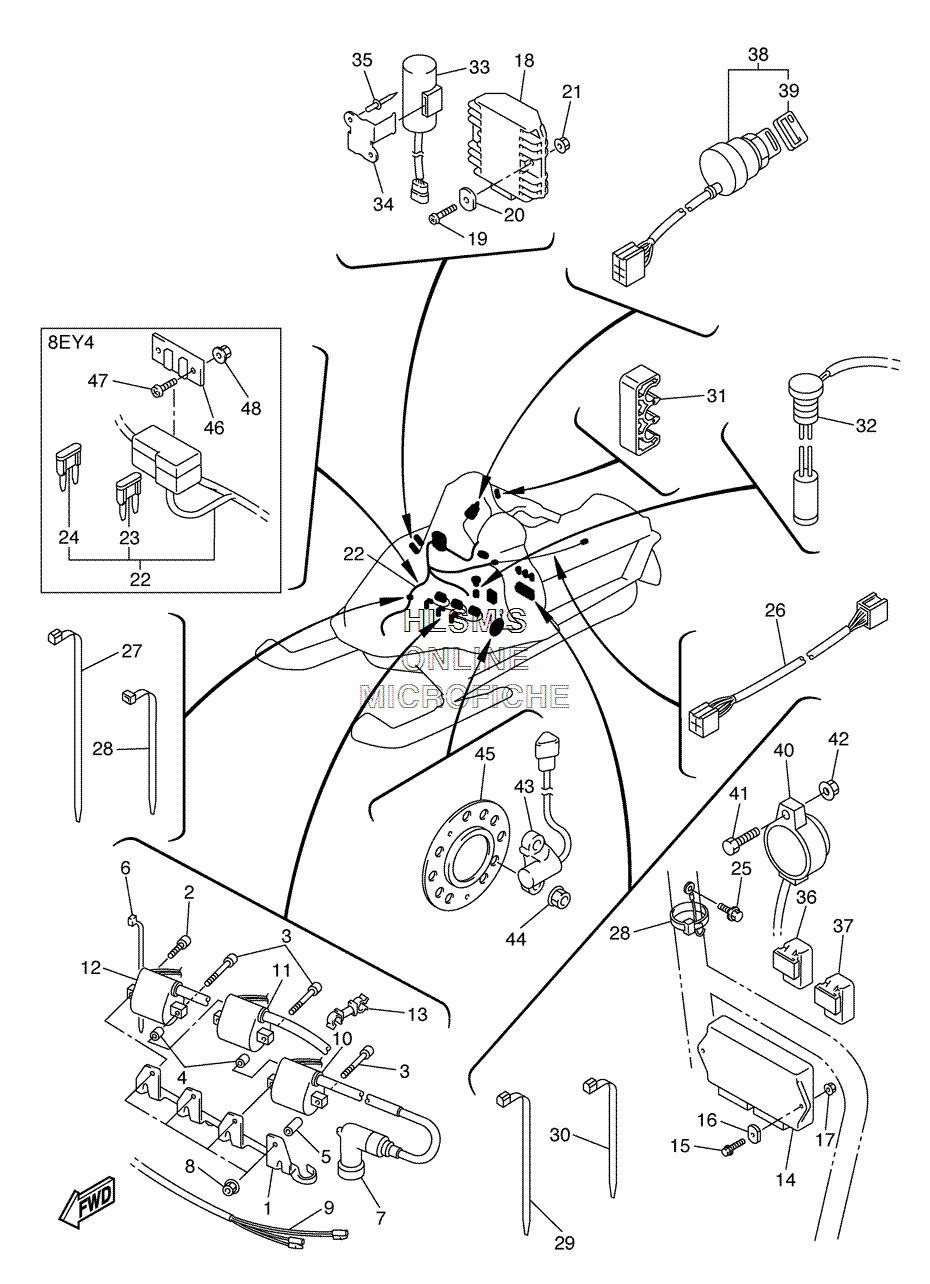

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha SX VENOM - 2006 года выпуска
-
№АртикулНазвание
-
18DM-82316-00-00 BRACKET, IGNITION COILBRACKET, IGNITION COIL
-
291317-06020-00 BOLTBOLT
-
391317-06040-00 BOLTBOLT
-
490387-0714B-00 COLLARCOLLAR
-
590387-07393-00 COLLARCOLLAR
-
690464-15195-00 CLAMPCLAMP
-
78DF-82370-00-00 PLUG CAP ASSYPLUG CAP ASSY
-
895607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
-
98DM-82509-00-00 WIRE, SUB LEADWIRE, SUB LEAD
-
108DM-82310-10-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
118DF-82310-20-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
128DM-82310-30-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
1390464-10002-00 CLAMPCLAMP
-
148EX-85540-00-00 C.D.I. UNIT ASSYC.D.I. UNIT ASSY
-
1595807-06020-00 BOLT, FLANGEBOLT, FLANGE
-
1690179-06264-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
1795707-06500-00 NUT, FLANGENUT, FLANGE
-
185BN-81960-00-00 RECTIFIER & REGULATOR ASSYRECTIFIER & REGULATOR ASSY
-
1998907-06025-00 SCREW, BINDSCREW, BIND
-
2090179-06264-00 NUTNUT
-
2195707-06500-00 NUT, FLANGENUT, FLANGE
-
228EY-82590-00-00 WIRE HARNESS ASSY (SXV60L (8EX5)WIRE HARNESS ASSY (SXV60L (8EX5)
-
228EX-82590-00-00 WIRE HARNESS ASSY (SXV60ERL (8EY4)WIRE HARNESS ASSY (SXV60ERL (8EY4)
-
235JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
245JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
2597007-06010-00 BOLTBOLT
-
268DM-8471G-00-00 WIRE, LEADWIRE, LEAD
-
2790464-12045-00 BAND, SWITCH CORDBAND, SWITCH CORD
-
2890464-15195-00 CLAMPCLAMP
-
2990464-13073-00 CLAMPCLAMP
-
3090464-13077-00 CLAMPCLAMP
-
3190464-07007-00 CLAMPCLAMP
-
328CR-85720-02-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
338EK-81965-00-00 CONDENSER, SMOOTHINGCONDENSER, SMOOTHING
-
348EK-81948-00-00 BRACKETBRACKET
-
3590267-48169-00 RIVET, BLINDRIVET, BLIND
-
368DM-81950-00-00 RELAY ASSYRELAY ASSY
-
375DM-81950-00-00 RELAY ASSYRELAY ASSY
-
388FE-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
39526-82579-00-00 ...CAP, KEY...CAP, KEY
-
408CW-83383-00-00 BUZZERBUZZER
-
4197007-05020-00 BOLTBOLT
-
4295707-05500-00 NUT, FLANGENUT, FLANGE
-
438EK-83755-01-00 SENSOR, SPEEDSENSOR, SPEED
-
4495707-08300-00 NUT, NYLONNUT, NYLON
-
458EK-47551-00-00 HOUSING, FRONT AXLEHOUSING, FRONT AXLE
-
46JT1-83614-00-00 BRACKETBRACKET
-
4798907-06014-00 SCREW, BINDSCREW, BIND
-
4895607-06200-00 NUT, SELF U-FLANGENUT, SELF U-FLANGE
