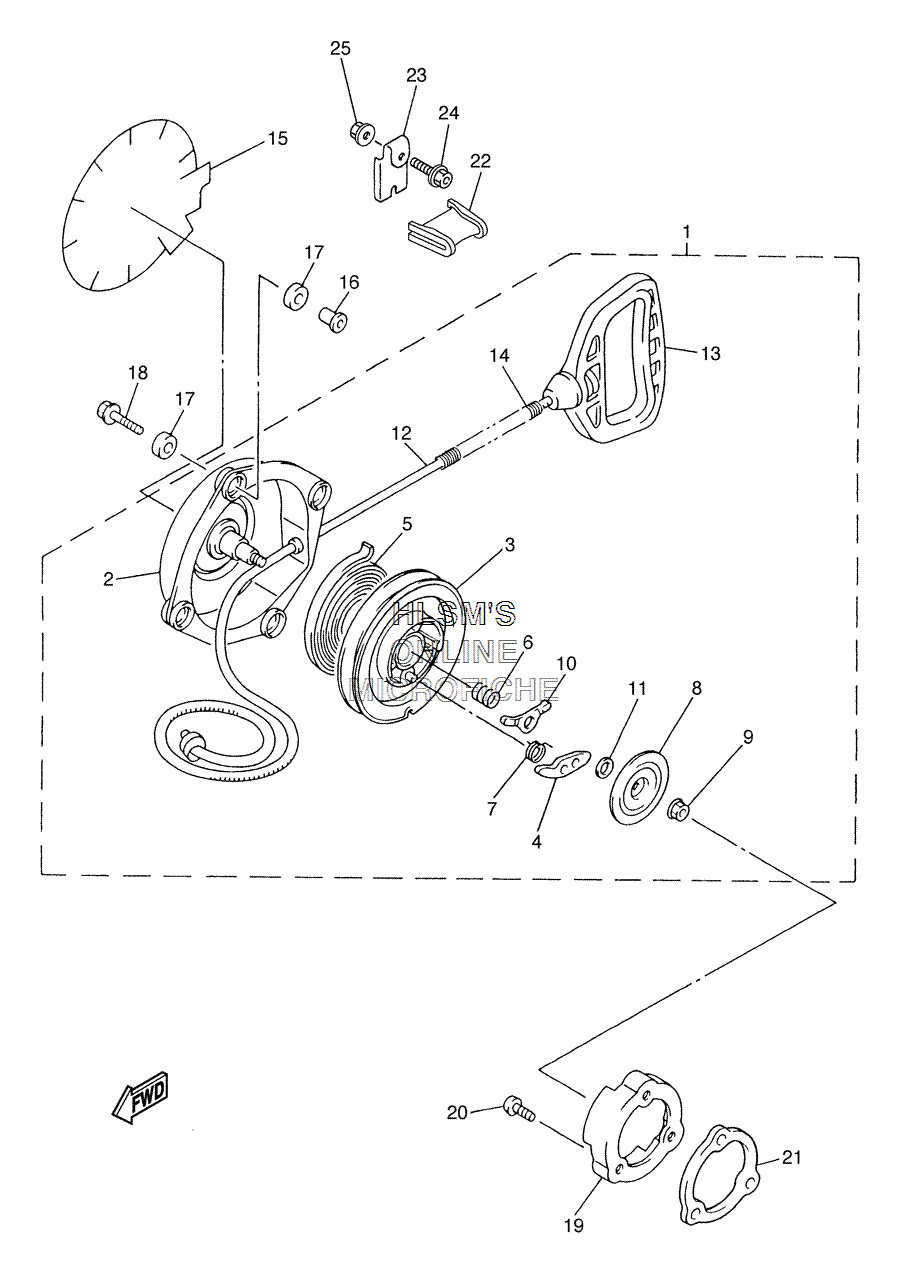

STARTER - RECOIL для Yamaha SX VENOM - 2006 года выпуска
-
№АртикулНазвание
-
18CH-15710-01-00 STARTER ASSYSTARTER ASSY
-
28CH-15711-00-00 ...CASE, STARTER...CASE, STARTER
-
38CH-15714-00-00 ...DRUM, SHEAVE...DRUM, SHEAVE
-
48CH-15741-00-00 ...PAWL, DRIVE...PAWL, DRIVE
-
521V-15713-00-00 ...SPRING, STARTER...SPRING, STARTER
-
68CH-15715-00-00 ...SPRING, FRICTION...SPRING, FRICTION
-
78CH-15767-00-00 ...SPRING...SPRING
-
88CH-15716-00-00 ...PLATE, DRIVE...PLATE, DRIVE
-
995707-06500-00 ...NUT, FLANGE...NUT, FLANGE
-
108CH-15735-00-00 ...GUIDE, CAM...GUIDE, CAM
-
118CH-15739-00-00 ...WASHER, THRUST...WASHER, THRUST
-
128CH-15751-00-00 ...WIRE, STARTER...WIRE, STARTER
-
138F3-15755-00-00 ...HANDLE, STARTER...HANDLE, STARTER
-
1485L-24327-00-00 ...PROTECTOR, PIPE...PROTECTOR, PIPE
-
158CH-15712-00-00 COVER, STARTER CASECOVER, STARTER CASE
-
1690387-0811L-00 COLLARCOLLAR
-
1790385-12036-00 BUSHBUSH
-
1890119-08240-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
198DF-15723-00-00 PULLEY, STARTERPULLEY, STARTER
-
2092017-08020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
218DG-15724-00-00 SPACERSPACER
-
228FF-1546C-00-00 HOLDERHOLDER
-
238DF-15758-10-00 GUIDE, ROPEGUIDE, ROPE
-
2495827-06014-00 BOLT, FLANGEBOLT, FLANGE
-
2595707-06500-00 NUT, FLANGENUT, FLANGE
