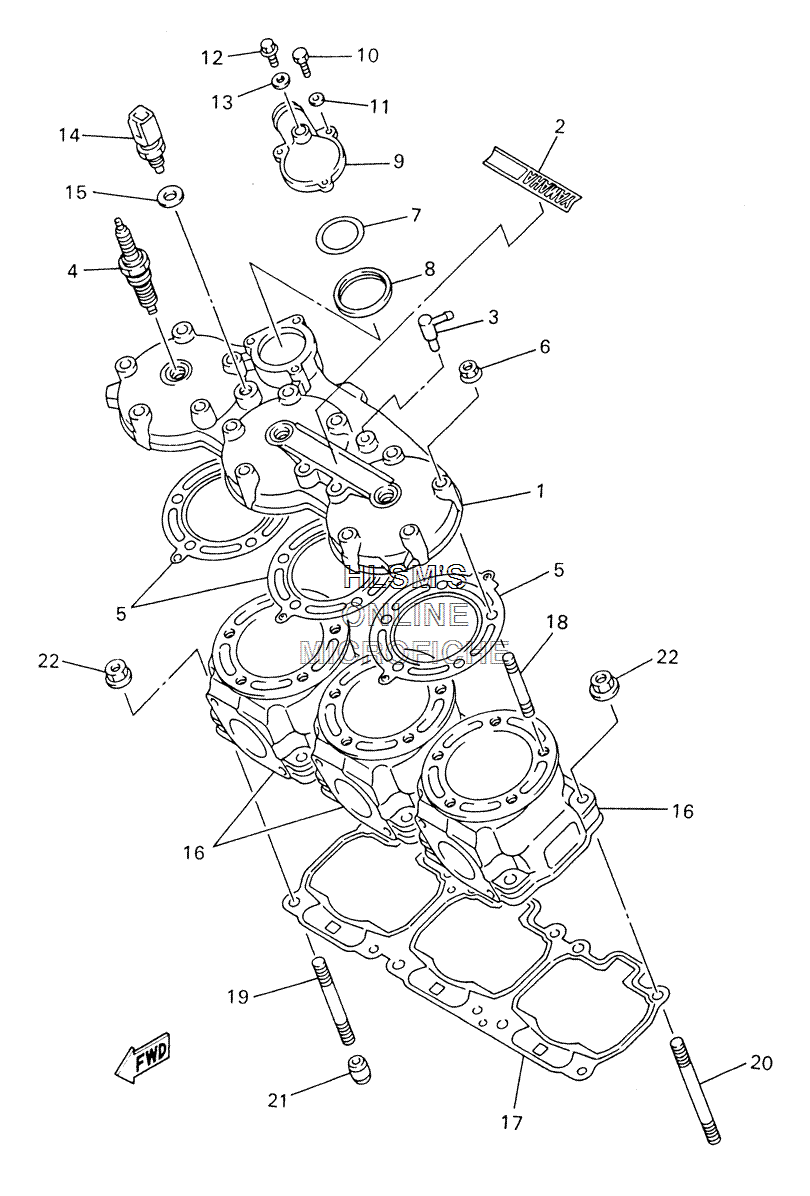

CYLINDER W/ HEAD ASSY для Yamaha VENTURE 600 - 2006 года выпуска
-
№АртикулНазвание
-
18DG-11111-00-00 HEAD, CYLINDER 1HEAD, CYLINDER 1
-
28DG-1111K-00-00 EMBLEMEMBLEM
-
38CH-12469-00-00 JOINT 1JOINT 1
-
4NGK-BR9ES-001-PC PLUG, SPARK (NGK BR9ES)PLUG, SPARK (NGK BR9ES)
-
58DG-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
690179-08299-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
790201-345G2-00 WASHER, PLATEWASHER, PLATE
-
88A7-12412-01-00 SEAL, THERMOSTATSEAL, THERMOSTAT
-
982M-12413-00-00 COVER, THERMOSTATCOVER, THERMOSTAT
-
1097027-06020-00 BOLTBOLT
-
1192907-06600-00 WASHER, PLATEWASHER, PLATE
-
1295807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
1390430-06166-00 GASKETGASKET
-
148CC-85790-01-00 THERMOSENSOR ASSYTHERMOSENSOR ASSY
-
1590201-12790-00 WASHER, PLATEWASHER, PLATE
-
168DG-11311-00-00 CYLINDER 1CYLINDER 1
-
178CH-11351-00-00 GASKET, CYLINDERGASKET, CYLINDER
-
1890116-08392-00 BOLT, STUDBOLT, STUD
-
1990116-08104-00 BOLT, STUDBOLT, STUD
-
2090116-08302-00 BOLT, STUDBOLT, STUD
-
2199530-10114-00 PIN, DOWELPIN, DOWEL
-
2290179-08299-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
