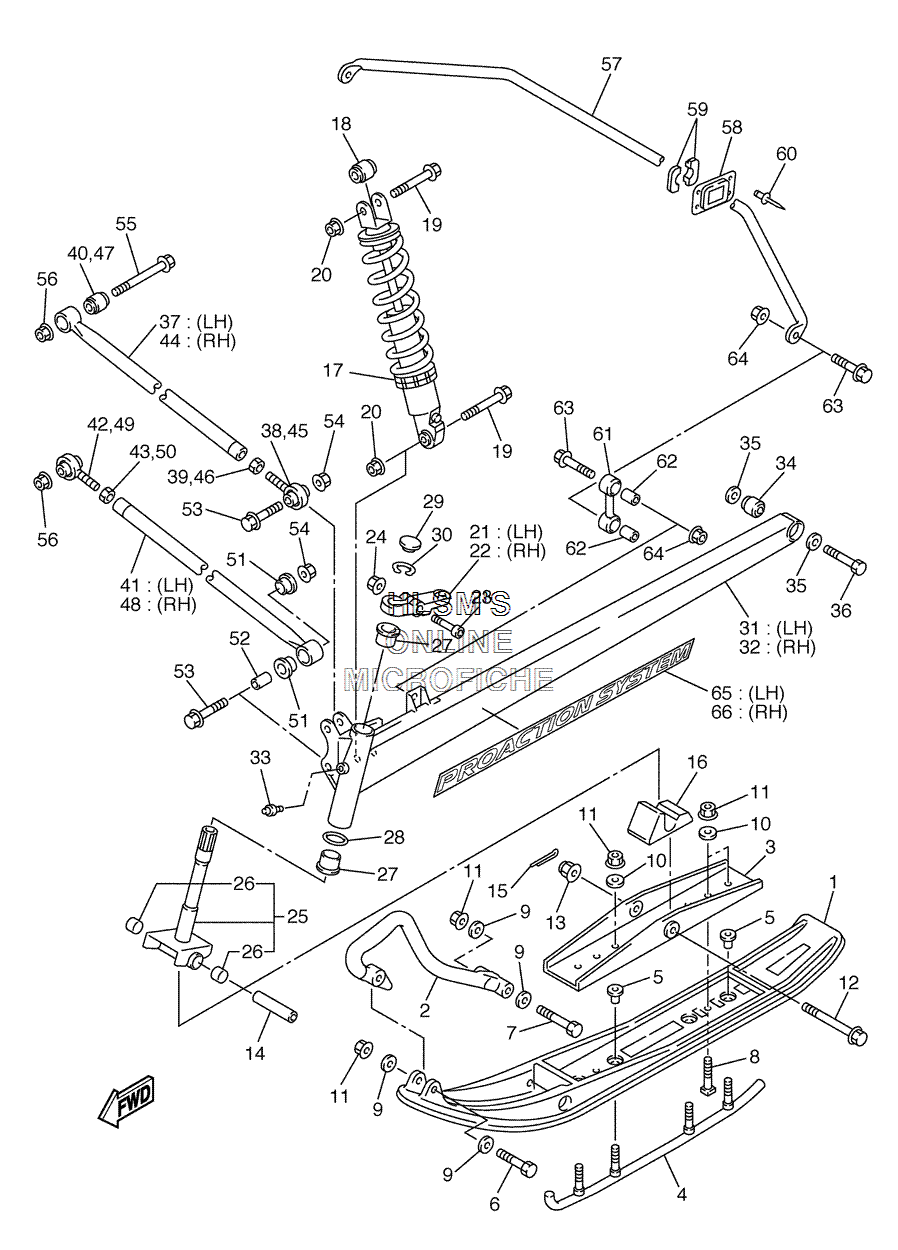

SUSPENSION - FRONT W/ SKI ASSY для Yamaha VENTURE 600 - 2006 года выпуска
-
№АртикулНазвание
-
18EN-F3711-00-00 SKI 1SKI 1
-
28DM-F3712-00-00 BLACK 8DM HANDLE PLASTICBLACK 8DM HANDLE PLASTIC
-
38EK-F3766-00-00 SADDLE 1SADDLE 1
-
48EN-F3731-00-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLTBOLT
-
79702M-08100-00 BOLTBOLT
-
890108-08002-00 BOLT, SQUAREBOLT, SQUARE
-
990201-08784-00 WASHER, PLATEWASHER, PLATE
-
1090201-086P8-00 WASHER, PLATEWASHER, PLATE
-
119570M-08300-00 NUT, NYLONNUT, NYLON
-
1290105-10712-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
1395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1490387-1012H-00 COLLARCOLLAR
-
1591401-20020-00 PIN, COTTERPIN, COTTER
-
168CR-23743-10-00 STOPPER 1STOPPER 1
-
178EX-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
188CR-2376B-00-00 BUSHBUSH
-
1990105-100A9-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2095607-10200-00 NUT, U FLANGENUT, U FLANGE
-
218EK-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
228EK-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
2391314-08035-00 BOLTBOLT
-
2495604-08200-00 NUT, U FLANGENUT, U FLANGE
