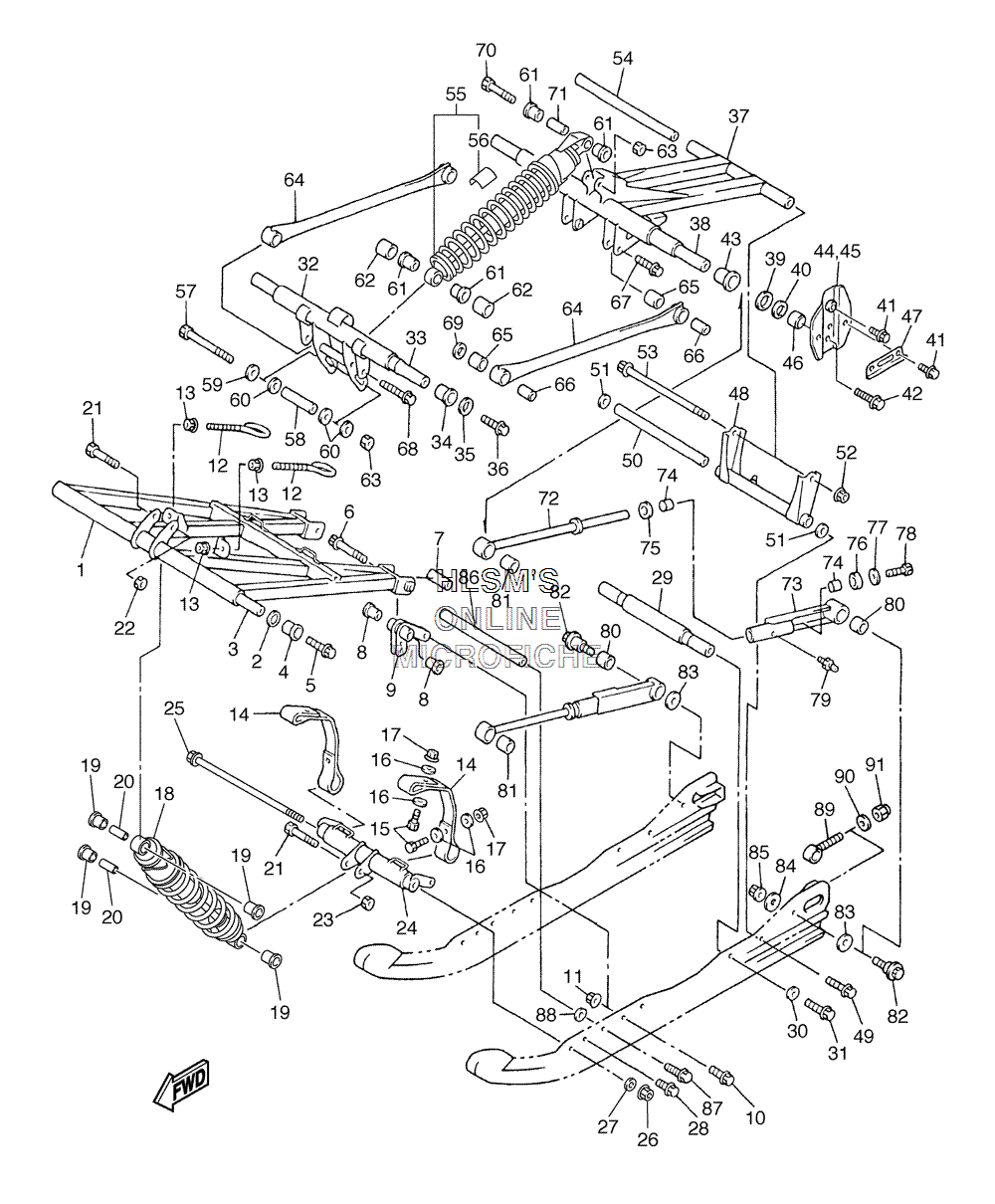

PIVOT ARM W/ SHOCK для Yamaha VENTURE 600 - 2006 года выпуска
-
№АртикулНазвание
-
18CV-47331-01-00 ARM, PIVOT 1ARM, PIVOT 1
-
290201-210U0-00 WASHER, PLATEWASHER, PLATE
-
38CR-47465-00-00 SHAFT 1SHAFT 1
-
490381-19111-00 BUSH, SOLIDBUSH, SOLID
-
590105-103A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
690105-10769-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
790387-1009T-00 COLLARCOLLAR
-
890381-15112-00 BUSH, SOLIDBUSH, SOLID
-
98CR-47415-00-00 BRACKET 1BRACKET 1
-
1095817-10025-00 BOLT, FLANGEBOLT, FLANGE
-
1195607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
128CR-47448-00-00 HOOK 3HOOK 3
-
1395707-08500-00 NUT, FLANGENUT, FLANGE
-
148CR-47495-00-00 STOPPER 1STOPPER 1
-
1597007-06025-00 BOLTBOLT
-
1690201-06747-00 WASHER, PLATEWASHER, PLATE
-
1795707-06300-00 NUT, FLANGENUT, FLANGE
-
188FF-47481-00-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
1990387-145G7-00 COLLARCOLLAR
-
2090387-105G5-00 COLLARCOLLAR
-
2190101-10738-00 BOLTBOLT
-
2290185-10110-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2395607-10100-00 NUT, UNUT, U
-
248EA-47418-10-00 BRACKET 4BRACKET 4
-
2590105-10023-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2695607-10200-00 NUT, U FLANGENUT, U FLANGE
-
2790201-105A2-00 WASHER, PLATEWASHER, PLATE
-
2895817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
298CR-47486-00-00 SHAFT 4SHAFT 4
-
3090201-100L3-00 WASHER, PLATEWASHER, PLATE
-
3190105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
328EN-47416-00-00 BRACKET 2BRACKET 2
-
338CR-47488-00-00 SHAFT 6SHAFT 6
-
3490381-22099-00 BUSH, SOLIDBUSH, SOLID
-
3590201-207J5-00 WASHER, PLATEWASHER, PLATE
-
3690105-103A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
378CR-47332-10-00 ARM, PIVOT 2ARM, PIVOT 2
-
388CY-47475-01-00 SHAFT 2SHAFT 2
-
3990201-251G8-00 WASHER, PLATEWASHER, PLATE
-
4090201-250T6-00 WASHER, PLATEWASHER, PLATE
-
4195817-08020-00 BOLT, FLANGEBOLT, FLANGE
-
4290105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
4390381-28108-00 BUSH, SOLIDBUSH, SOLID
-
448DP-47426-10-00 BRACKET, REAR 1BRACKET, REAR 1
-
458DP-47425-10-00 BRACKET, REAR 2BRACKET, REAR 2
-
4690387-2510A-00 COLLARCOLLAR
-
478DP-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
488CR-47417-01-00 BRACKET 3BRACKET 3
-
4990105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
5082M-47485-02-00 SHAFT 3SHAFT 3
-
5190201-10136-00 WASHER, PLATEWASHER, PLATE
-
5295607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5395827-08220-00 BOLT, FLANGEBOLT, FLANGE
-
5490387-083G6-00 COLLARCOLLAR
-
558CW-47480-20-00 SHOCK ABSORBER (OPT)SHOCK ABSORBER (OPT)
-
558CW-47480-30-00 SHOCK ABSORBER (OPT)SHOCK ABSORBER (OPT)
-
558FF-47480-00-00 SHOCK ABSORBER (STD)SHOCK ABSORBER (STD)
-
564AA-22259-60-00 ...LABEL, WARNING...LABEL, WARNING
-
578AC-4631K-00-00 BOLT, ADJUSTINGBOLT, ADJUSTING
-
5890387-1009S-00 COLLARCOLLAR
-
5990201-103U4-00 WASHER, PLATEWASHER, PLATE
-
6090201-100U1-00 WASHER, PLATEWASHER, PLATE
-
6190381-14101-00 BUSH, SOLIDBUSH, SOLID
-
6290387-1404R-00 COLLARCOLLAR
-
6395607-10100-00 NUT, UNUT, U
-
648CR-47494-01-00 ROD, RELAYROD, RELAY
-
6590381-14109-00 BUSH, SOLIDBUSH, SOLID
-
6690387-100X3-00 COLLARCOLLAR
-
6790105-10739-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
6890105-10436-00 BOLT, FLANGEBOLT, FLANGE
-
6990201-100U1-00 WASHER, PLATEWASHER, PLATE
-
7090101-10738-00 BOLTBOLT
-
7190387-105G5-00 COLLARCOLLAR
-
728CR-4745A-01-00 ROD, CONTROL 1ROD, CONTROL 1
-
738CR-4745B-00-00 ROD, CONTROL 2ROD, CONTROL 2
-
7490384-16251-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
7590202-16229-00 WASHER, PLATEWASHER, PLATE
-
7690202-16230-00 WASHER, PLATEWASHER, PLATE
-
7790201-106F2-00 WASHER, PLATEWASHER, PLATE
-
7897027-10025-00 BOLTBOLT
-
7993700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
8090380-22232-00 BUSH, SOLIDBUSH, SOLID
-
8190380-28235-00 BUSH, SOLIDBUSH, SOLID
-
828DF-47367-00-00 SCREW, REAR PIVOTSCREW, REAR PIVOT
-
8390201-100S2-00 WASHER, PLATEWASHER, PLATE
-
8490201-101U2-00 WASHER, PLATEWASHER, PLATE
-
8595607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
8682M-47485-02-00 SHAFT 3SHAFT 3
-
8790105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
8890201-10126-00 WASHER, PLATEWASHER, PLATE
-
898DM-47479-00-00 COLLAR 3COLLAR 3
-
9092907-10600-00 WASHER, PLATEWASHER, PLATE
-
9195707-10300-00 NUT, FLANGENUT, FLANGE
