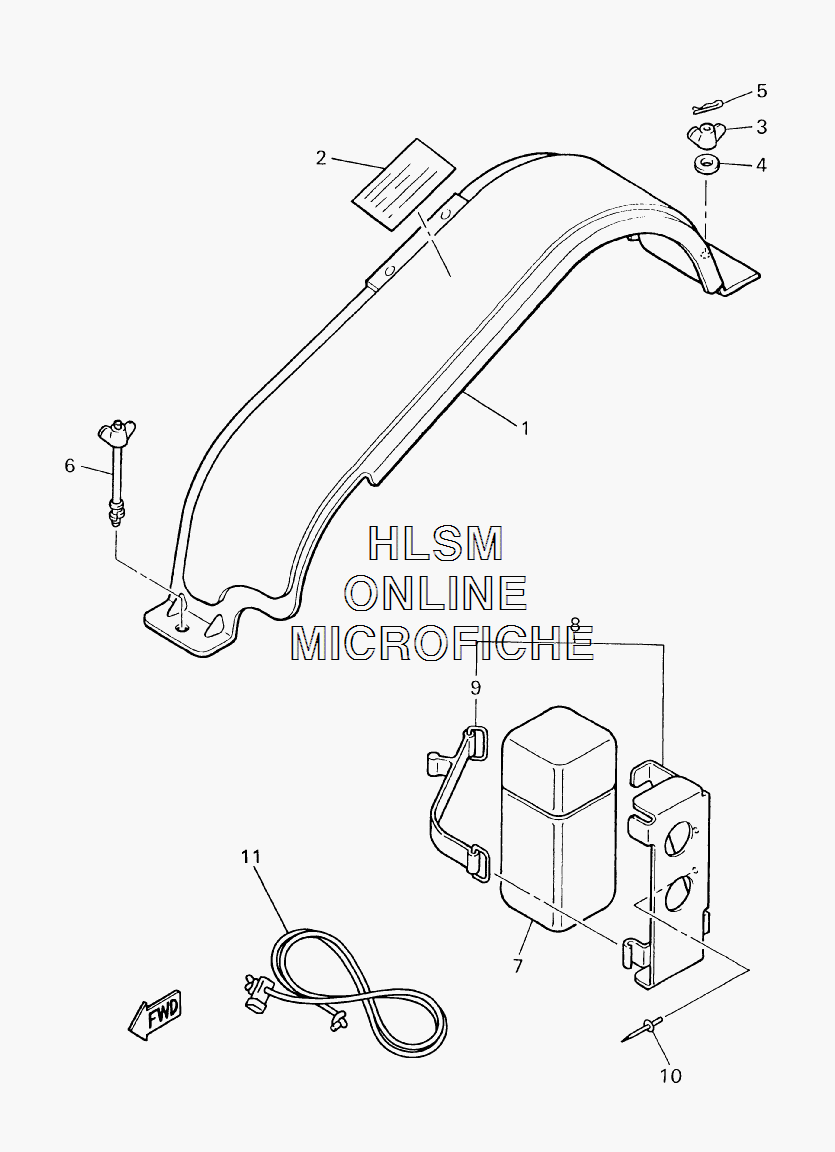

BELT GUARD W/ TOOL BOX для Yamaha BRAVO - 2007 года выпуска
-
№АртикулНазвание
-
18R4-77311-00-00 GUARD, DRIVEGUARD, DRIVE
-
28BD-77762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
390175-08021-00 NUT, WINGNUT, WING
-
492907-08200-00 WASHERWASHER
-
590468-16001-00 CLIPCLIP
-
68V0-77387-00-00 SCREWSCREW
-
785L-28100-00-00 TOOL KITTOOL KIT
-
88AB-21945-00-00 BRACKET, TOOL BOX FITTINGBRACKET, TOOL BOX FITTING
-
94J2-82131-01-00 ...BAND, BATTERY...BAND, BATTERY
-
1090267-48060-00 RIVET, BLINDRIVET, BLIND
-
118R4-15780-00-00 EMERGENCY STARTER ROPE ASSYEMERGENCY STARTER ROPE ASSY
