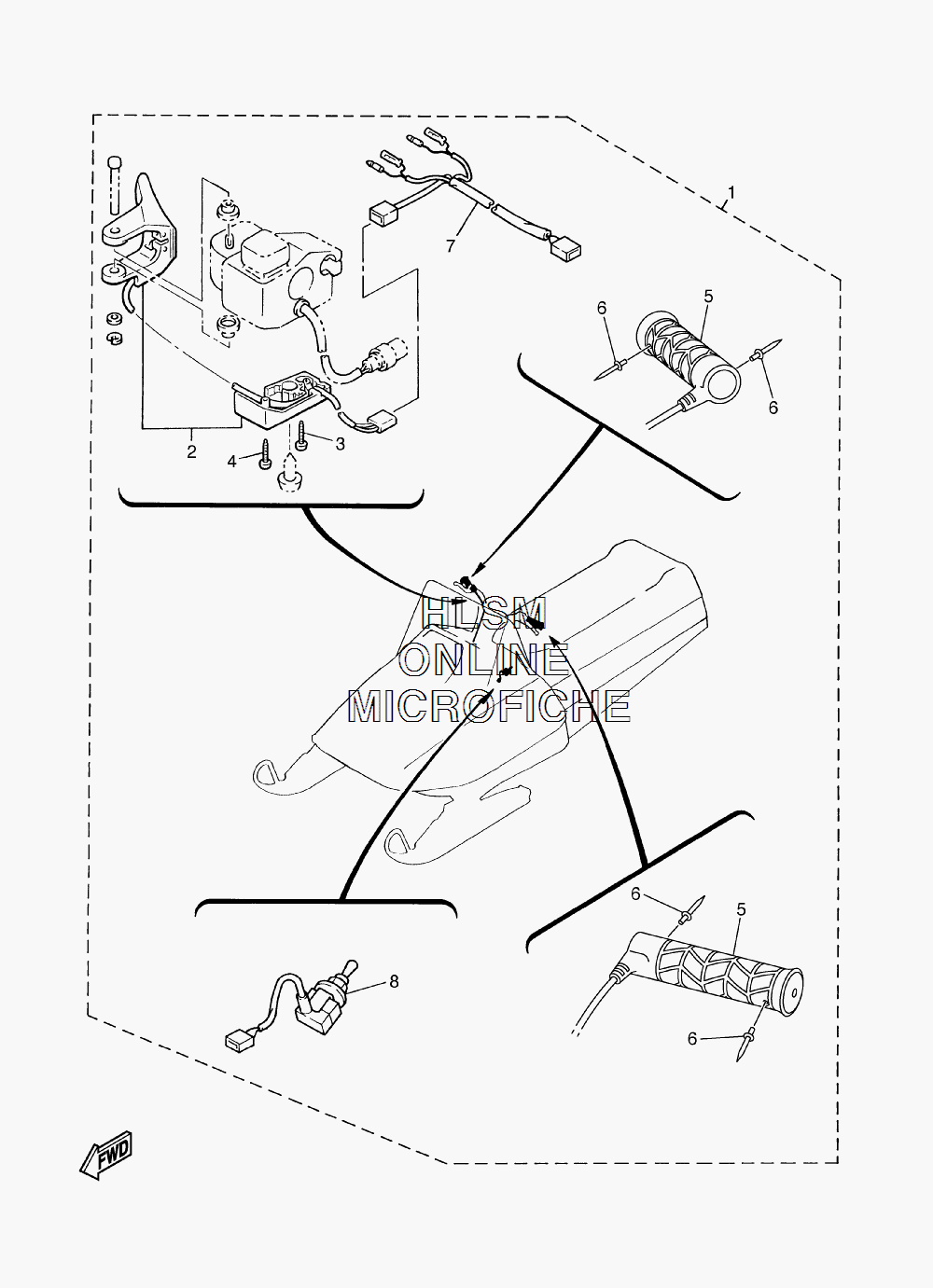

THUMB WARMER KIT (OPT) для Yamaha BRAVO - 2007 года выпуска
-
№АртикулНазвание
-
18BD-W8293-02-00 THUMB WARMER KIT (OPT)THUMB WARMER KIT (OPT)
-
28AU-82970-02-00 ...THUMB WARMER ASSY...THUMB WARMER ASSY
-
397706-30620-00 ...SCREW, TAPPING...SCREW, TAPPING
-
497707-30630-00 ...SCREW, TAPPING...SCREW, TAPPING
-
58DX-26240-00-00 ...GRIP ASSY...GRIP ASSY
-
690267-48014-00 ...RIVET, BLIND...RIVET, BLIND
-
78BD-82318-00-00 ...WIRE, SUB-LEAD...WIRE, SUB-LEAD
-
88BE-82917-00-00 ...SWITCH...SWITCH
Все узлы модели:
- AIR SHROUD W/ FAN
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CARBURETOR ASSY
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CONSOLE ASSY
- CRANKCASE ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- FUEL TANK ASSY 2
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL PUMP ASSY
- OIL PUMP DRIVE GEAR
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - RECOIL
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - TORQUE ARM ASSY
- • THUMB WARMER KIT (OPT)
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
