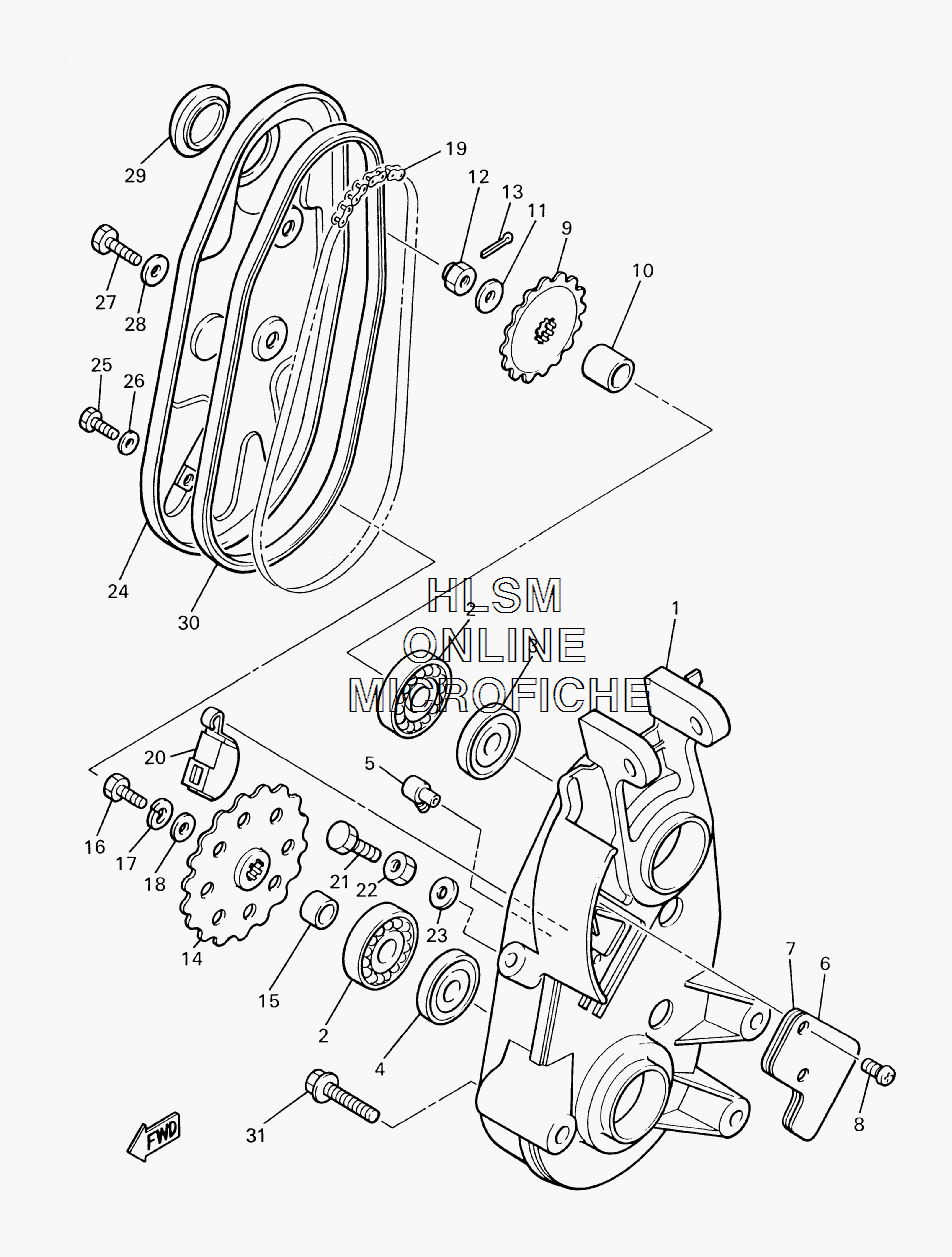

CHAINCASE ASSY для Yamaha BRAVO - 2007 года выпуска
-
№АртикулНазвание
-
18R4-47541-00-00 HOUSING, CHAINHOUSING, CHAIN
-
293306-30407-00 BEARINGBEARING
-
393102-25081-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
493102-20010-00 OIL SEALOIL SEAL
-
589B-47586-00-00 BREATHERBREATHER
-
68R4-47591-00-00 PLATEPLATE
-
786A-47592-00-00 GASKETGASKET
-
898907-05016-00 SCREW, BINDSCREW, BIND
-
9812-17682-00-00 SPROCKET, CHAIN DRIVE (10T) (STD)SPROCKET, CHAIN DRIVE (10T) (STD)
-
9812-17682-10-00 SPROCKET, CHAIN DRIVE (11T) (OPT)SPROCKET, CHAIN DRIVE (11T) (OPT)
-
9812-17682-40-00 SPROCKET, CHAIN DRIVE (14T) (OPT)SPROCKET, CHAIN DRIVE (14T) (OPT)
-
9812-17682-30-00 SPROCKET, CHAIN DRIVE (13T) (OPT)SPROCKET, CHAIN DRIVE (13T) (OPT)
-
9812-17682-20-00 SPROCKET, CHAIN DRIVE (12T) (OPT)SPROCKET, CHAIN DRIVE (12T) (OPT)
-
1090387-197E9-00 COLLARCOLLAR
-
1190201-122H1-00 WASHER, PLATEWASHER, PLATE
-
1295307-12600-00 NUTNUT
-
1391401-25025-00 PIN, COTTERPIN, COTTER
-
148BC-47548-40-00 SPROCKET, CHAIN DRIVEN (24T) (STD)SPROCKET, CHAIN DRIVEN (24T) (STD)
-
148BC-47548-10-00 SPROCKET, CHAIN DRIVEN (21T) (OPT)SPROCKET, CHAIN DRIVEN (21T) (OPT)
-
148BC-47548-20-00 SPROCKET, CHAIN DRIVEN (22T) (OPT)SPROCKET, CHAIN DRIVEN (22T) (OPT)
-
148BC-47548-30-00 SPROCKET, CHAIN DRIVEN (23T) (OPT)SPROCKET, CHAIN DRIVEN (23T) (OPT)
-
1590387-200F1-00 COLLARCOLLAR
-
1697027-08025-00 BOLTBOLT
-
1792907-08600-00 WASHER, PLATEWASHER, PLATE
-
1890201-086A3-00 WASHER, PLATEWASHER, PLATE
-
1994580-01044-00 CHAIN 44LCHAIN 44L
-
208F3-47611-02-00 TENSIONERTENSIONER
-
2190101-10357-00 BOLTBOLT
-
2295307-10700-00 NUTNUT
-
2390210-10004-00 WASHER, SEALWASHER, SEAL
-
248R4-47543-00-00 CAP, HOUSINGCAP, HOUSING
-
2597007-06010-00 BOLTBOLT
-
2690210-06006-00 WASHER, SEALWASHER, SEAL
-
2797007-08020-00 BOLTBOLT
-
2890210-08002-00 WASHER, SEALWASHER, SEAL
-
298J5-22315-00-00 CAPCAP
-
308R4-47558-00-00 RING, HOUSINGRING, HOUSING
-
3195827-08065-00 BOLT, WASHER BASEDBOLT, WASHER BASED
