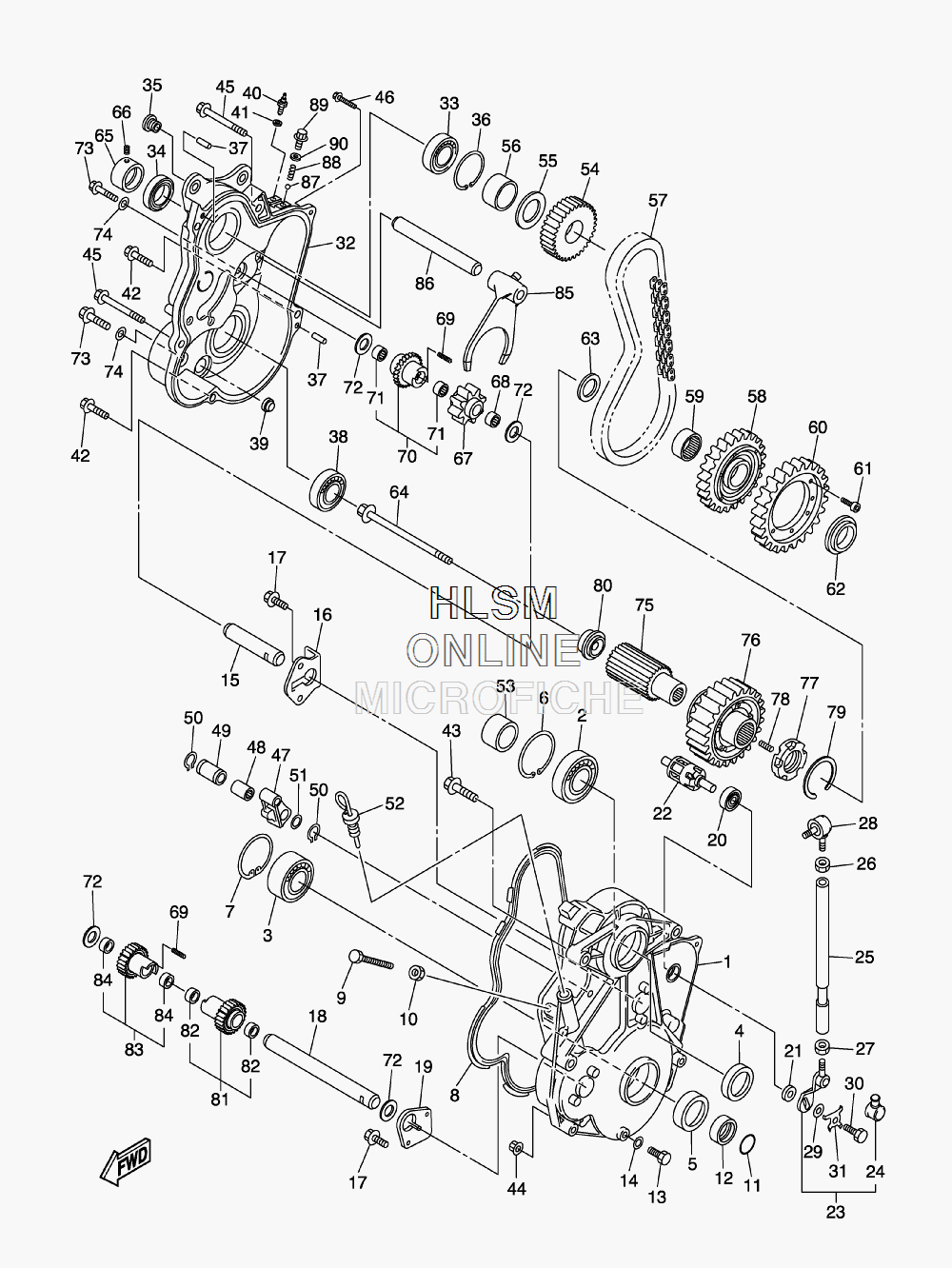

CHAINCASE ASSY для Yamaha RS VIKING PROFESSIONAL - 2008 года выпуска
-
№АртикулНазвание
-
18GS-47541-00-00 HOUSING, CHAINHOUSING, CHAIN
-
293306-20601-00 BEARINGBEARING
-
393304-20511-00 BEARINGBEARING
-
493102-30012-00 OIL SEALOIL SEAL
-
593102-35010-00 OIL SEALOIL SEAL
-
699009-62500-00 CIRCLIPCIRCLIP
-
799009-52500-00 CIRCLIPCIRCLIP
-
88GS-47558-00-00 RING, HOUSINGRING, HOUSING
-
990101-10357-00 BOLTBOLT
-
1095307-10600-00 NUTNUT
-
1193210-25071-00 O-RINGO-RING
-
1290387-2508C-00 COLLARCOLLAR
-
1397007-08014-00 BOLTBOLT
-
1490210-08017-00 WASHER, SEALWASHER, SEAL
-
158GS-1761A-00-00 SHAFT, 1SHAFT, 1
-
168CW-47591-00-00 PLATEPLATE
-
1790105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
188GS-1761E-00-00 SHAFT 2SHAFT 2
-
198GS-47591-00-00 PLATEPLATE
-
2093306-00208-00 BEARINGBEARING
-
2193102-15212-00 OIL SEAL, SD-TYPEOIL SEAL, SD-TYPE
-
228GS-18541-01-00 CAM, SHIFTCAM, SHIFT
-
238GS-18191-00-00 LEVERLEVER
-
242H9-18154-00-00 ...COVER, DUST...COVER, DUST
-
258GS-18115-00-00 ROD, SHIFTROD, SHIFT
-
2690170-08358-00 NUTNUT
-
2795307-08700-00 NUTNUT
-
283X3-18157-10-00 JOINT 2JOINT 2
-
2990201-06099-00 WASHER, PLATEWASHER, PLATE
-
3090101-06047-00 BOLTBOLT
-
318GS-47554-01-00 WASHER, LOCKWASHER, LOCK
-
328GS-47543-00-00 CAP, HOUSINGCAP, HOUSING
-
3393306-20511-00 BEARINGBEARING
-
3493102-35010-00 OIL SEALOIL SEAL
-
3590179-10679-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
3699009-52500-00 CIRCLIPCIRCLIP
-
3793606-20044-00 PIN, DOWELPIN, DOWEL
-
3893306-00711-00 BEARINGBEARING
-
393Y1-15361-00-00 GAUGE, LEVELGAUGE, LEVEL
-
405LP-82540-01-00 REVERSE SWITCH ASSYREVERSE SWITCH ASSY
-
4190430-10148-00 GASKETGASKET
-
4295827-08030-00 BOLT, FLANGEBOLT, FLANGE
-
4395827-10045-00 BOLT, FLANGEBOLT, FLANGE
-
4495607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4595827-10090-00 BOLT, FLANGEBOLT, FLANGE
-
4695827-06025-00 BOLT, FLANGEBOLT, FLANGE
-
478ES-47613-00-00 HOLDERHOLDER
-
4893311-32685-00 BEARINGBEARING
-
4990387-22005-00 COLLARCOLLAR
-
5099009-26400-00 CIRCLIPCIRCLIP
-
5190201-266P2-00 WASHER, PLATEWASHER, PLATE
-
528GS-47546-00-00 LEVEL, OILLEVEL, OIL
-
5390387-30005-00 COLLARCOLLAR
-
548FA-17682-00-00 SPROCKET, CHAIN DRIVE (20T)SPROCKET, CHAIN DRIVE (20T)
-
5590208-26002-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
5690387-26007-00 COLLARCOLLAR
-
5794890-09068-00 CHAIN (68L) BORG WARNCHAIN (68L) BORG WARN
-
588GS-47587-90-00 SPROCKET, CHAIN DRIVENSPROCKET, CHAIN DRIVEN
-
5993317-33179-00 BEARING, CYLINDRICALBEARING, CYLINDRICAL
-
608GS-17111-00-00 GEAR,1ST PINIONGEAR,1ST PINION
-
6190110-06211-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
6290387-2008G-00 COLLARCOLLAR
-
6390201-320S3-00 WASHER, PLATEWASHER, PLATE
-
6490105-10223-00 BOLT, FLANGEBOLT, FLANGE
-
6590387-25018-00 COLLARCOLLAR
-
6690113-06064-00 BOLT, SETBOLT, SET
-
678FB-17692-00-00 SPROCKET, DRIVE (18T)SPROCKET, DRIVE (18T)
-
6893317-21578-00 BEARING, CYLINDRICALBEARING, CYLINDRICAL
-
6990501-060A1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
708GS-1714A-00-00 REVERSE PINION ASSY.REVERSE PINION ASSY.
-
7193317-21578-00 ...BEARING, CYLINDRICAL...BEARING, CYLINDRICAL
-
7290201-16245-00 WASHER, PLATEWASHER, PLATE
-
7390105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
7490210-06006-00 WASHER, SEALWASHER, SEAL
-
758GS-47571-00-00 JOURNAL 1JOURNAL 1
-
768GS-17243-00-00 GEAR, REVERSE WHEEL 1GEAR, REVERSE WHEEL 1
-
778CW-17492-00-00 DOG, TRANSMISSION SHIFTDOG, TRANSMISSION SHIFT
-
7890501-066J5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
7993440-39175-00 CIRCLIP, OUTERCIRCLIP, OUTER
-
808GS-47564-00-00 COLLARCOLLAR
-
818GS-17210-00-00 1ST WHEEL GEAR ASSY1ST WHEEL GEAR ASSY
-
8293317-21578-00 ...BEARING, CYLINDRICAL...BEARING, CYLINDRICAL
-
838GS-17110-00-00 1ST PINION GEAR ASSY1ST PINION GEAR ASSY
-
8493317-21578-00 ...BEARING, CYLINDRICAL...BEARING, CYLINDRICAL
-
858GS-18511-00-00 FORK, SHIFT 1FORK, SHIFT 1
-
868GS-18531-00-00 BAR, SHIFT FORK GUIDE 1BAR, SHIFT FORK GUIDE 1
-
8793503-08007-00 BALL 3/8BALL 3/8
-
8890501-10353-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
8990105-14003-00 BOLT, FLANGEBOLT, FLANGE
-
9090430-14043-00 GASKETGASKET
