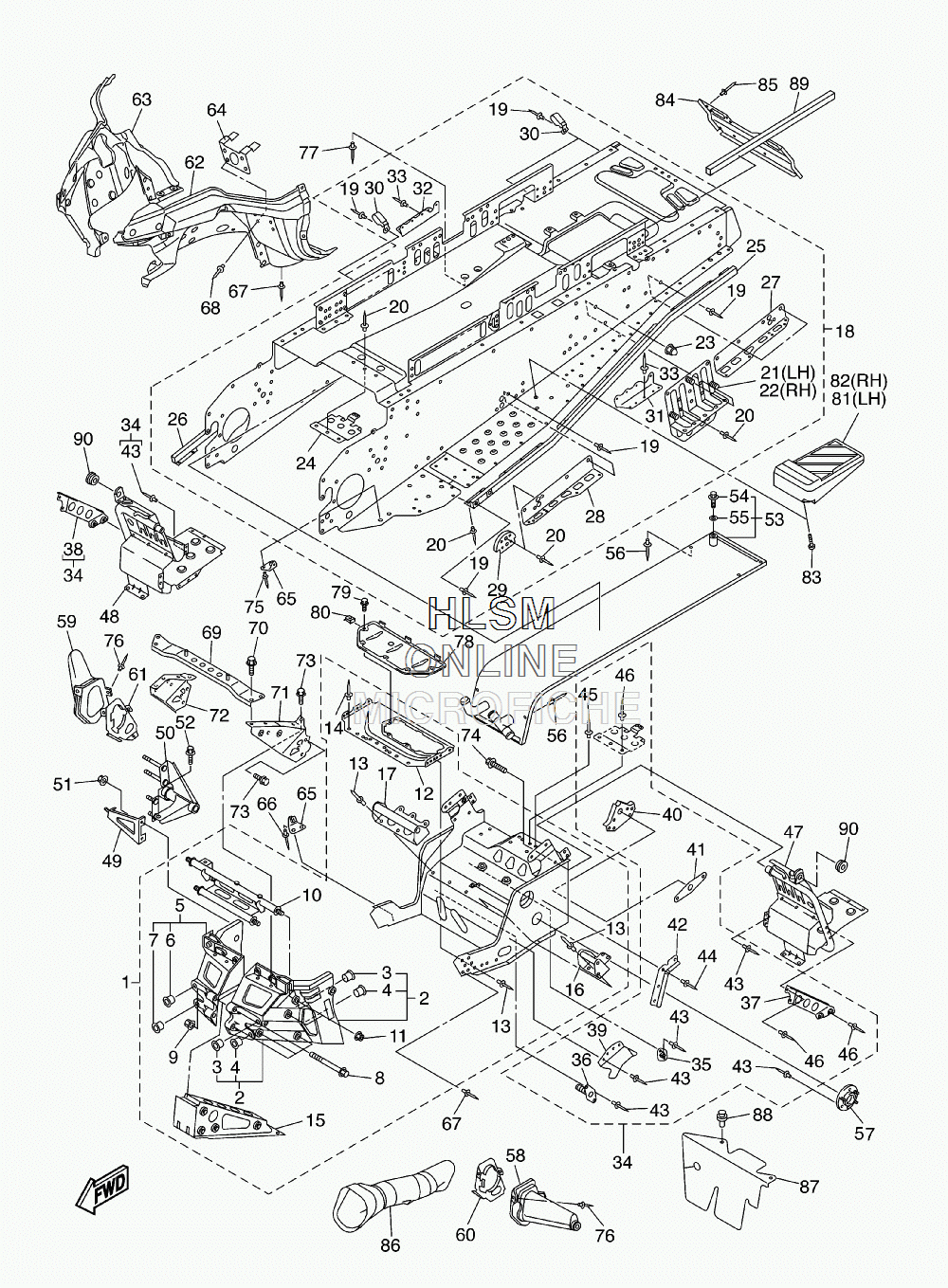

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha RS VIKING PROFESSIONAL - 2008 года выпуска
-
№АртикулНазвание
-
18GS-21940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FN-W2197-00-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
490381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
58FN-W2198-00-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ...BUSH, SOLID...BUSH, SOLID
-
790381-16001-00 ...BUSH, SOLID...BUSH, SOLID
-
890105-08072-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
108FN-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1195607-10200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
128FN-2193A-00-00 ...PROTECTOR...PROTECTOR
-
1390267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
1490267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
158FN-2198E-00-00 ...REINFORCEMENT, FRAME 3...REINFORCEMENT, FRAME 3
-
168FN-2194F-00-00 ...BRACKET, ENGINE 2...BRACKET, ENGINE 2
-
178FN-2194G-00-00 ...BRACKET, ENGINE 3...BRACKET, ENGINE 3
-
188GS-21950-01-00 REAR FRAME COMP.REAR FRAME COMP.
-
1990267-48023-00 ...RIVET, BLIND...RIVET, BLIND
-
2090267-48177-00 ...RIVET, BLIND...RIVET, BLIND
-
218FN-21944-01-00 ...BRACKET, RR. TRACK SUSPENSI...BRACKET, RR. TRACK SUSPENSI
-
228FN-21954-01-00 ...BRACKET, RR. TRACK SUSPENSI...BRACKET, RR. TRACK SUSPENSI
-
2390176-10075-00 ...NUT, CROWN...NUT, CROWN
-
248FN-2194H-00-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
258FN-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
268FN-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
278FN-21962-01-00 ...PATCH 2...PATCH 2
-
288FN-21963-01-00 ...PATCH 3...PATCH 3
-
298CW-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
3090465-08368-00 ...CLAMP...CLAMP
-
318GS-21965-00-00 ...PATCH 5...PATCH 5
-
328GS-21966-00-00 ...PATCH 6...PATCH 6
-
3390267-48176-00 ...RIVET, BLIND...RIVET, BLIND
-
348GS-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
358CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
368FN-21939-00-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
378FG-2196M-00-00 ...BRACKET, 5...BRACKET, 5
-
388FG-2197M-00-00 ...BRACKET, 6...BRACKET, 6
-
398FU-2198G-00-00 ...COVER 2...COVER 2
-
408GS-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
418FN-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
428FA-21999-00-00 ...CLAMP, WIRE HARNESS...CLAMP, WIRE HARNESS
-
4390267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
4490267-48018-00 ...RIVET, BLIND...RIVET, BLIND
-
4590267-48023-00 ...RIVET, BLIND...RIVET, BLIND
-
4690267-48177-00 ...RIVET, BLIND...RIVET, BLIND
-
478FN-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
488GS-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
498FN-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
508FN-2194E-00-00 BRACKET, ENGINEBRACKET, ENGINE
-
5195602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5295822-10016-00 BOLT, FLANGEBOLT, FLANGE
-
538FN-12440-00-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
5495812-06016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
5590210-06006-00 ...WASHER, SEAL...WASHER, SEAL
-
5690267-48016-00 RIVET, BLINDRIVET, BLIND
-
578EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
588FU-2198F-00-00 COVER 1COVER 1
-
598FU-2198J-00-00 COVER 3COVER 3
-
608FU-2195E-01-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
618FU-2195F-01-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
-
628ES-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
638FA-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
648FA-21972-01-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
658FA-2196F-00-00 BRACKET 3BRACKET 3
-
6690267-48083-00 RIVET, BLINDRIVET, BLIND
-
6790267-48018-00 RIVET, BLINDRIVET, BLIND
-
6890267-47200-00 RIVET, BLINDRIVET, BLIND
-
698FN-77512-00-00 BUMPER, FRONT 2BUMPER, FRONT 2
-
7095822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
718FN-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
728FN-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
7395822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
7495822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
7590267-48095-00 RIVET, BLINDRIVET, BLIND
-
7690267-47195-00 RIVET, BLINDRIVET, BLIND
-
7790267-48016-00 RIVET, BLINDRIVET, BLIND
-
788FA-2197E-01-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
7990109-065F3-00 BOLTBOLT
-
8090183-06053-00 NUT, SPRINGNUT, SPRING
-
818DM-27431-00-00 FOOTREST, REAR 1FOOTREST, REAR 1
-
828DM-27441-00-00 FOOTREST, REAR 2FOOTREST, REAR 2
-
8397702-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
848FN-21933-01-00 REINFORCEMENT, FRAME REAR 2REINFORCEMENT, FRAME REAR 2
-
8590267-47195-00 RIVET, BLINDRIVET, BLIND
-
868FN-21557-00-00 DUCT, AIRDUCT, AIR
-
878FN-2198F-00-00 COVER 1COVER 1
-
8890269-09002-00 RIVETRIVET
-
898FN-241A5-00-00 SEAL, 5SEAL, 5
-
9090480-16278-00 GROMMETGROMMET
