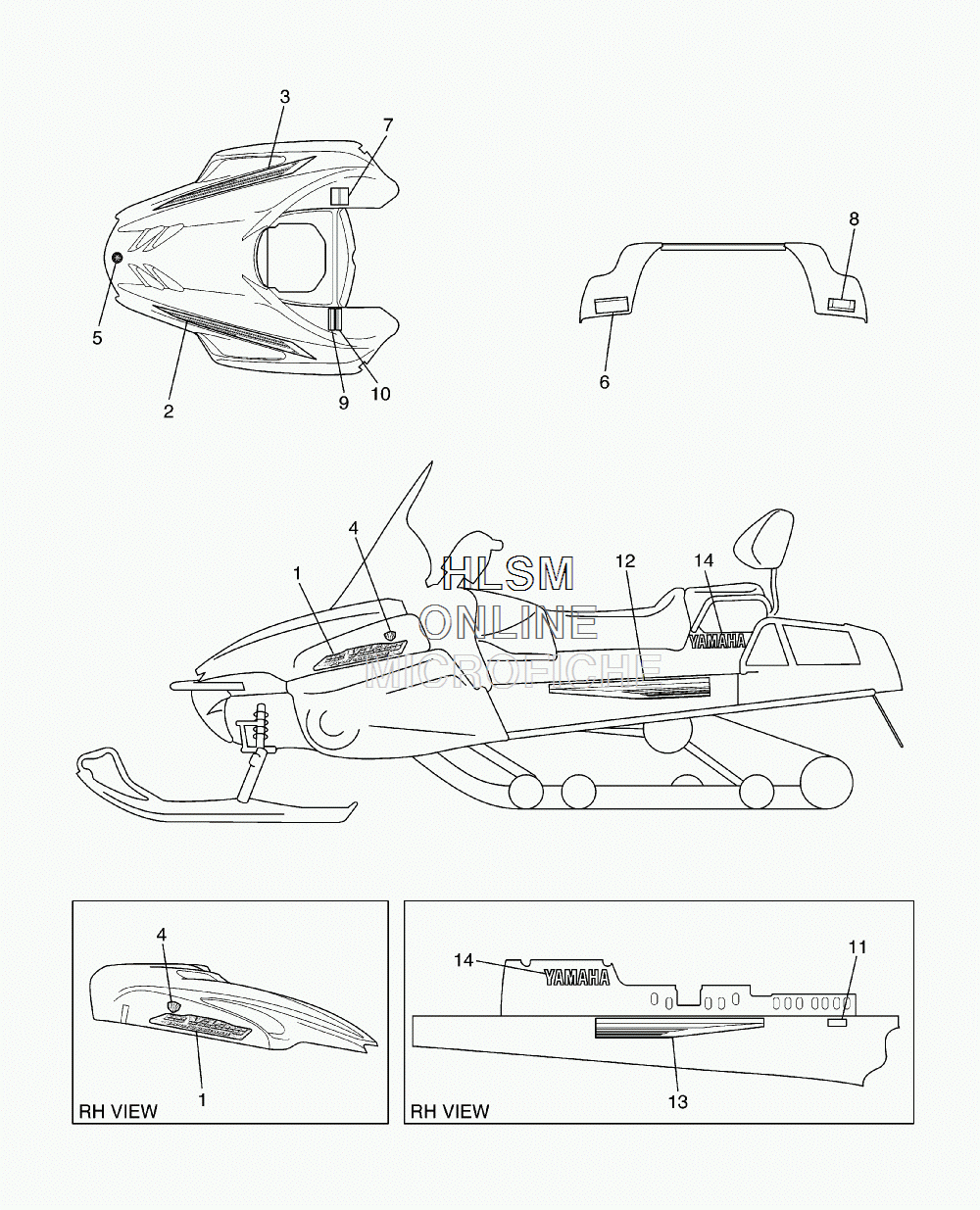

DECALS для Yamaha RS VIKING PROFESSIONAL - 2008 года выпуска
-
№АртикулНазвание
-
18GS-77141-00-00 EMBLEM 1 FOR DPBMLEMBLEM 1 FOR DPBML
-
18GS-77141-10-00 EMBLEM 1 FOR DRMKEMBLEM 1 FOR DRMK
-
28FN-7711L-20-00 GRAPHIC, SHROUD FOR DPBMLGRAPHIC, SHROUD FOR DPBML
-
28FN-7711L-30-00 GRAPHIC, SHROUD FOR DRMKGRAPHIC, SHROUD FOR DRMK
-
38FN-7711M-10-00 GRAPHIC, SHROUD FOR DPBMLGRAPHIC, SHROUD FOR DPBML
-
38FN-7711M-30-00 GRAPHIC, SHROUD FOR DRMKGRAPHIC, SHROUD FOR DRMK
-
48FN-7715A-00-00 EMBLEM 3DEMBLEM 3D
-
58AC-2414B-01-00 EMBLEM, TUNING FORKEMBLEM, TUNING FORK
-
68DM-77761-E0-00 LABEL, WARNING 1LABEL, WARNING 1
-
78FN-77761-E0-00 LABEL, WARNING 1LABEL, WARNING 1
-
88GS-77763-E0-00 LABEL, WARNING 3LABEL, WARNING 3
-
93JJ-2835Y-A0-00 LABEL, CAUTIONLABEL, CAUTION
-
103JJ-2835Y-B0-00 LABEL, CAUTIONLABEL, CAUTION
-
118FJ-2179D-11-00 PLATE, EPA OFFROAD 2PLATE, EPA OFFROAD 2
-
128FN-2199A-30-00 GRAPHIC 1 (OPT) FOR DPBMLGRAPHIC 1 (OPT) FOR DPBML
-
128FN-2199A-21-00 GRAPHIC 1 (OPT) FOR DRMKGRAPHIC 1 (OPT) FOR DRMK
-
138FN-2199B-30-00 GRAPHIC 2 (OPT) FOR DPBMLGRAPHIC 2 (OPT) FOR DPBML
-
138FN-2199B-21-00 GRAPHIC 2 (OPT) FOR DRMKGRAPHIC 2 (OPT) FOR DRMK
-
1499246-00200-00 EMBLEM, YAMAHAEMBLEM, YAMAHA
