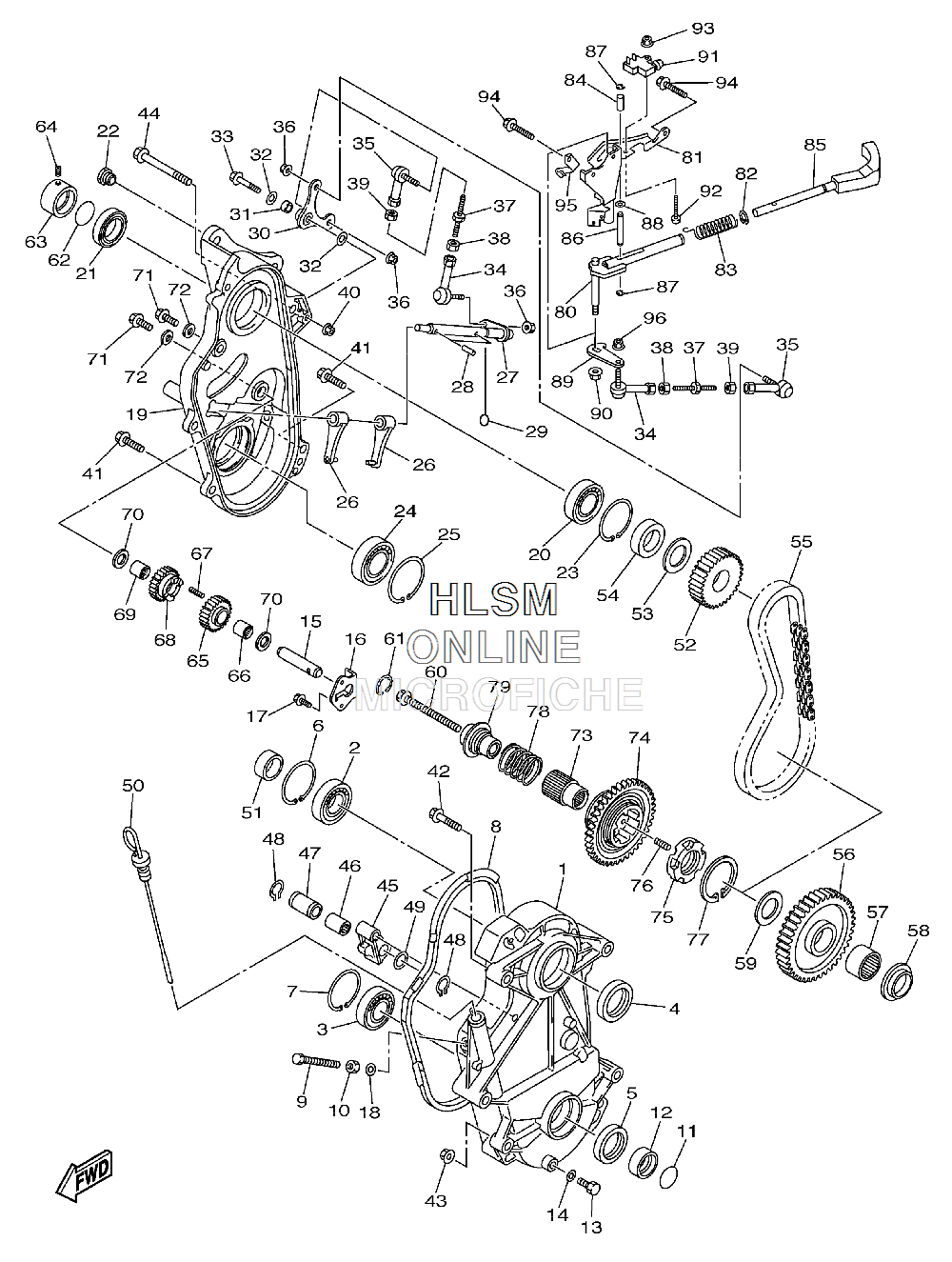

CHAINCASE ASSY для Yamaha APEX MTX - 2010 года выпуска
-
№АртикулНазвание
-
18FP-47541-11-00 HOUSING, CHAINHOUSING, CHAIN
-
293306-20601-00 BEARINGBEARING
-
393306-205A9-00 BEARINGBEARING
-
493102-30012-00 OIL SEALOIL SEAL
-
593102-35010-00 OIL SEALOIL SEAL
-
699009-62500-00 CIRCLIPCIRCLIP
-
799009-52500-00 CIRCLIPCIRCLIP
-
88FP-47558-00-00 RING, HOUSINGRING, HOUSING
-
990101-10357-00 BOLTBOLT
-
1095302-10700-00 NUTNUT
-
1193210-25071-00 O-RINGO-RING
-
1290387-2508C-00 COLLARCOLLAR
-
1397002-08014-00 BOLTBOLT
-
1490210-08017-00 WASHER, SEALWASHER, SEAL
-
158CW-1761A-00-00 SHAFT, 1SHAFT, 1
-
168CW-47591-00-00 PLATEPLATE
-
1790105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
1890201-106H5-00 WASHER, PLATEWASHER, PLATE
-
198HF-47543-10-00 CAP, HOUSINGCAP, HOUSING
-
2093306-20511-00 BEARINGBEARING
-
2193102-35473-00 OIL SEALOIL SEAL
-
2290179-10679-00 NUTNUT
-
2399009-52500-00 CIRCLIPCIRCLIP
-
2493306-00711-00 BEARINGBEARING
-
2599009-62500-00 CIRCLIPCIRCLIP
-
268GL-18511-01-00 FORK, SHIFT 1FORK, SHIFT 1
-
278FR-18197-00-00 SHAFTSHAFT
-
2891609-50022-00 PIN, SPRINGPIN, SPRING
-
2993210-12131-00 O-RINGO-RING
-
308FR-18198-00-00 LEVERLEVER
-
3190387-0608T-00 COLLARCOLLAR
-
3290201-06033-00 WASHER, PLATEWASHER, PLATE
-
3395812-06040-00 BOLT, FLANGEBOLT, FLANGE
-
34J45-23845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
3588T-18157-00-00 JOINT 2JOINT 2
-
3695602-06200-00 NUT-UNUT-U
-
3726H-18115-00-00 ROD, SHIFTROD, SHIFT
-
3895302-06600-00 NUTNUT
-
3990170-06289-00 NUT,HEXAGONNUT,HEXAGON
-
4095602-06200-00 NUT-UNUT-U
-
4190105-08108-00 BOLT, FLANGEBOLT, FLANGE
-
4295822-10045-00 BOLT, FLANGE (4GB)BOLT, FLANGE (4GB)
-
4395602-10200-00 NUT, U FLANGENUT, U FLANGE
-
4495822-10090-00 BOLT, FLANGEBOLT, FLANGE
-
458ES-47613-00-00 HOLDERHOLDER
-
4693311-32685-00 BEARINGBEARING
-
4790387-22005-00 COLLARCOLLAR
-
4899009-26400-00 CIRCLIPCIRCLIP
-
4990201-266P2-00 WASHER, PLATEWASHER, PLATE
-
508FA-47546-01-00 LEVEL, OILLEVEL, OIL
-
5190387-30005-00 COLLARCOLLAR
-
528FA-17682-00-00 SPROCKET, CHAIN DRIVE (20T)SPROCKET, CHAIN DRIVE (20T)
-
5390208-26002-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
5490387-26007-00 COLLARCOLLAR
-
5594890-09068-00 CHAIN (68L)CHAIN (68L)
-
568FB-47587-00-00 SPROCKET, CHAIN DRIVEN (40T)SPROCKET, CHAIN DRIVEN (40T)
-
5793317-33179-00 BEARINGBEARING
-
5890387-2008G-00 COLLARCOLLAR
-
5990201-320S3-00 WASHER, PLATEWASHER, PLATE
-
6090105-10368-00 BOLT, FLANGEBOLT, FLANGE
-
6193420-26092-00 CIRCLIPCIRCLIP
-
6293210-25642-00 O-RINGO-RING
-
6390387-25018-00 COLLARCOLLAR
-
6490113-06064-00 BOLT, SETBOLT, SET
-
658FB-17692-00-00 SPROCKET, DRIVE (18T)SPROCKET, DRIVE (18T)
-
6693317-21578-00 BEARINGBEARING
-
6790501-060A1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
688CW-17143-00-00 REV GEAR SUB-ASSY1REV GEAR SUB-ASSY1
-
6993317-21578-00 BEARINGBEARING
-
7090201-16245-00 WASHER, PLATEWASHER, PLATE
-
7190105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
7290210-06006-00 WASHER, SEALWASHER, SEAL
-
738CW-47571-00-00 JOURNAL 1JOURNAL 1
-
748CW-17243-00-00 GEAR, REVERSE WHEEL 1 (50T)GEAR, REVERSE WHEEL 1 (50T)
-
758CW-17492-00-00 DOG, TRANSMISSION SHIFTDOG, TRANSMISSION SHIFT
-
7690501-066J5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
7793440-39175-00 CIRCLIPCIRCLIP
-
7890501-260A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
798GL-48566-10-00 COLLARCOLLAR
-
808ER-18112-01-00 ARM, SHIFTARM, SHIFT
-
818JA-18161-00-00 GUIDE, PLATE STOPPERGUIDE, PLATE STOPPER
-
8299009-18400-00 CIRCLIPCIRCLIP
-
8390501-130A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
8490387-06059-00 COLLARCOLLAR
-
858FR-18174-01-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
8690249-06002-00 PINPIN
-
8793410-06053-00 CIRCLIPCIRCLIP
-
8890201-067F9-00 WASHER, PLATEWASHER, PLATE
-
898JA-1811A-00-00 PLATE, SHIFT ARMPLATE, SHIFT ARM
-
9095602-06200-00 NUT-UNUT-U
-
91J51-82817-00-00 SWITCHSWITCH
-
9298902-04020-00 SCREW,BINDINGSCREW,BINDING
-
9395602-04100-00 NUT, U (6E8)NUT, U (6E8)
-
9495822-08020-00 BOLT, FLANGE (8AB)BOLT, FLANGE (8AB)
-
9590462-08086-00 CLAMPCLAMP
-
9695602-06200-00 NUT-UNUT-U
