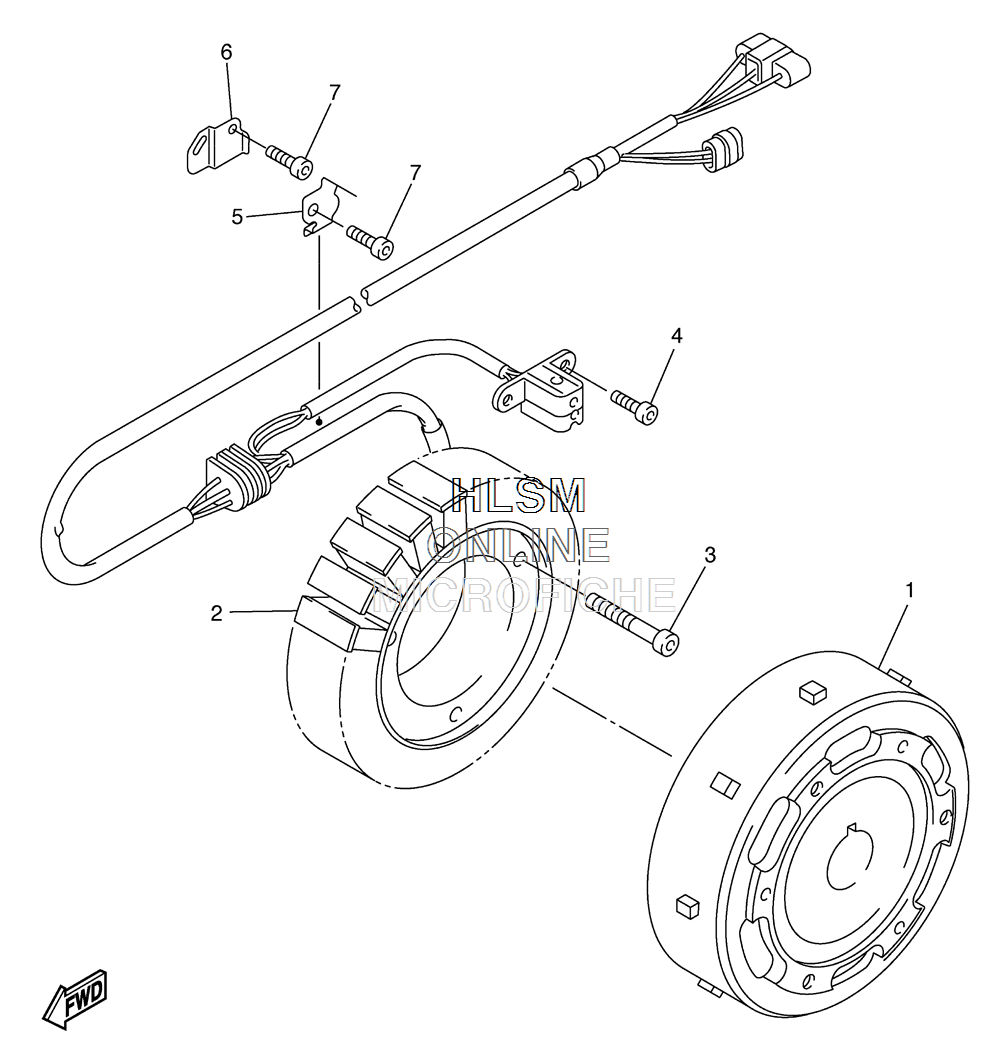

ELECTRICAL - MAGNETO ASSEMBLY для Yamaha APEX MTX - 2010 года выпуска
-
№АртикулНазвание
-
18FP-81450-00-00 ROTOR ASSYROTOR ASSY
-
28FP-81410-02-00 STATOR ASSYSTATOR ASSY
-
390110-06208-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
490110-05034-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
58FP-15113-00-00 PLATEPLATE
-
68FG-15191-00-00 PLATEPLATE
-
790110-06187-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
