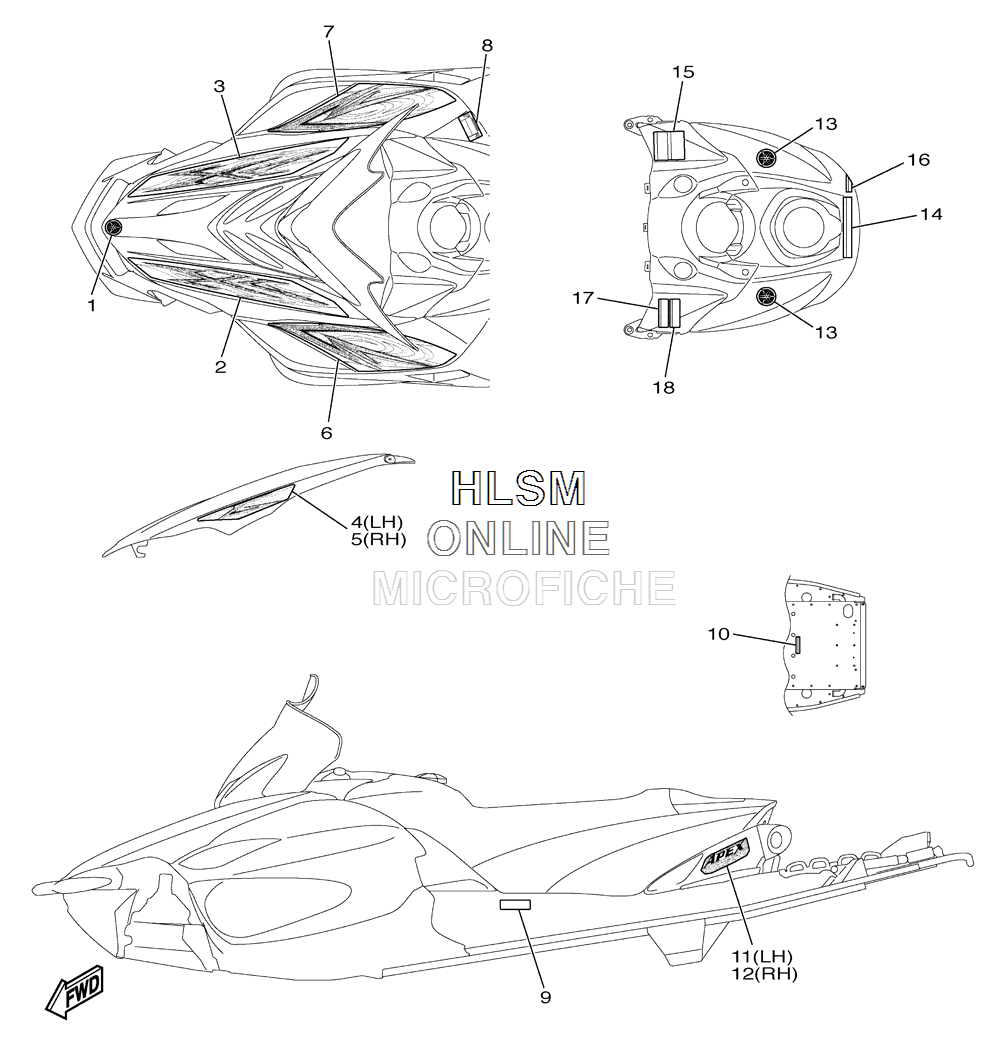

DECALS для Yamaha APEX MTX - 2010 года выпуска
-
№АртикулНазвание
-
18AC-2414B-01-00 EMBLEMEMBLEM
-
28FR-7711L-10-00 GRAPHIC, SHROUDGRAPHIC, SHROUD
-
38FR-7711M-10-00 GRAPHIC, SHROUDGRAPHIC, SHROUD
-
48FR-7711N-00-00 GRAPHIC, SHROUD 3GRAPHIC, SHROUD 3
-
58FR-7711P-00-00 GRAPHIC, SHROUD 4GRAPHIC, SHROUD 4
-
68FR-7711A-00-00 GRAPHIC 1GRAPHIC 1
-
78FR-7711B-00-00 GRAPHIC 2GRAPHIC 2
-
88FR-77763-E0-00 LABEL, WARNING 3LABEL, WARNING 3
-
98FR-2179D-30-00 PLATE, EPA OFFROAD 2PLATE, EPA OFFROAD 2
-
108ET-24897-00-00 EMBLEMEMBLEM
-
118GY-7755A-20-00 GRAPHIC, PROTECTORGRAPHIC, PROTECTOR
-
128GY-7755A-20-00 GRAPHIC, PROTECTORGRAPHIC, PROTECTOR
-
135PW-2413B-00-00 EMBLEMEMBLEM
-
148FR-77761-E0-00 LABEL, WARNING 1LABEL, WARNING 1
-
158FN-77761-E0-00 LABEL, WARNING 1LABEL, WARNING 1
-
168HR-2815M-E0-00 LABEL, NOTICE TRACKLABEL, NOTICE TRACK
-
178ET-2815K-00-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
-
188ET-2815K-10-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
