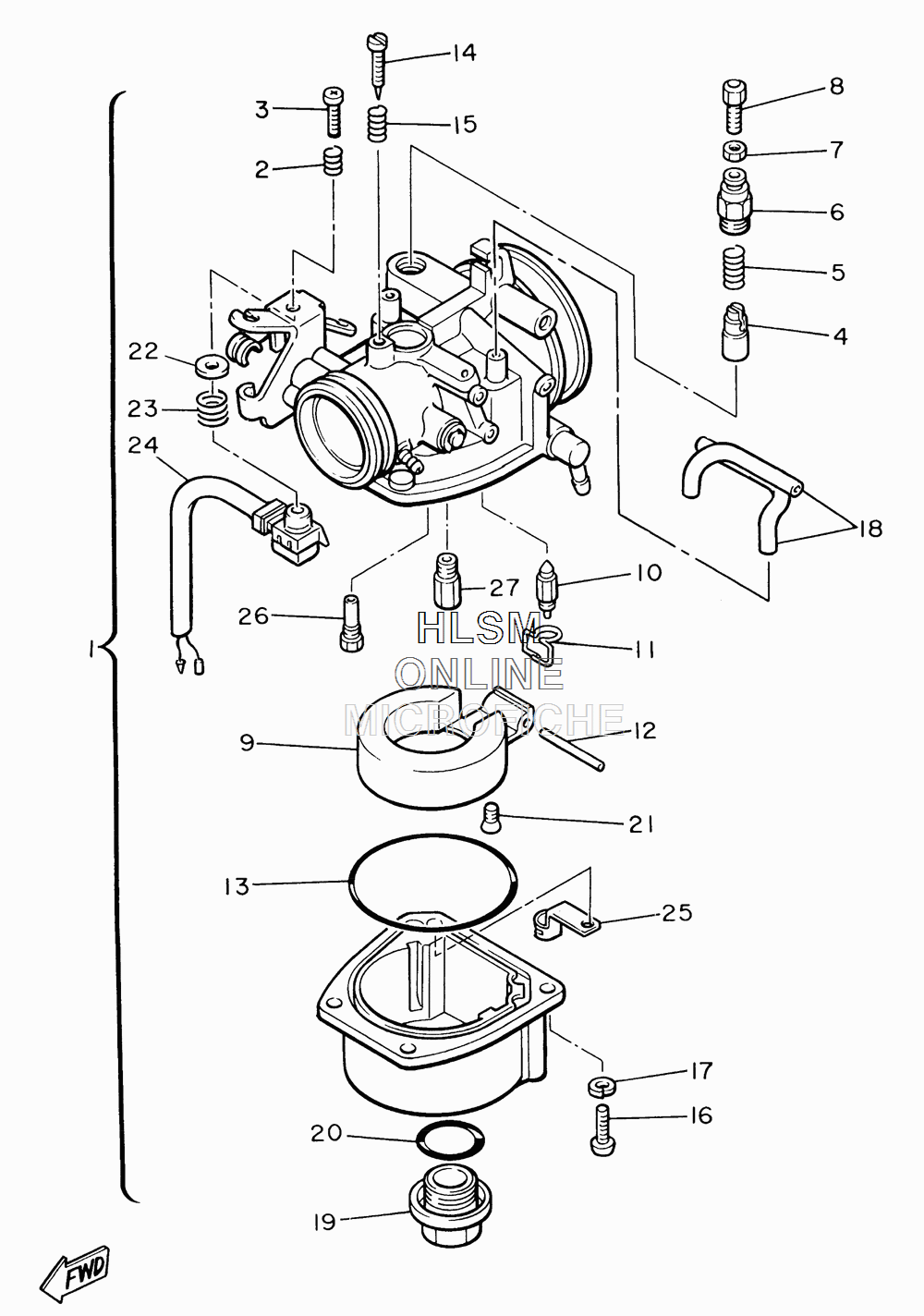

CARBURETOR ASSY для Yamaha BRAVO T - 2010 года выпуска
-
№АртикулНазвание
-
180J-14101-03-00 CARBURETOR ASSY 1CARBURETOR ASSY 1
-
280F-14131-00-00 SPRING, THROTTLE VALVESPRING, THROTTLE VALVE
-
380F-14121-00-00 SCREW, THROTTLE STOPSCREW, THROTTLE STOP
-
4371-14993-60-00 PLUNGER, STARTERPLUNGER, STARTER
-
590501-08443-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
68A6-14969-00-00 CAPCAP
-
78E7-14161-00-00 NUT, CABLE ADJUSTINGNUT, CABLE ADJUSTING
-
88A6-14977-00-00 SHAFT, STARTER LEVERSHAFT, STARTER LEVER
-
98G6-14985-01-00 FLOATFLOAT
-
108E7-14546-00-00 VALVE,FLOATVALVE,FLOAT
-
11663-14159-00-00 CLIPCLIP
-
12676-14548-00-00 PIN, FLOAT ARMPIN, FLOAT ARM
-
138G6-14984-00-00 GASKET, FLOAT CHAMBERGASKET, FLOAT CHAMBER
-
148G6-14521-00-00 SCREW, ADJUSTSCREW, ADJUST
-
1590501-08214-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
1698502-04040-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1792902-04100-00 WASHER, SPRINGWASHER, SPRING
-
188R4-14994-00-00 PIPEPIPE
-
198M7-14992-00-00 RODROD
-
2093210-19309-00 O-RINGO-RING
-
2198602-04008-00 SCREW,FLATSCREW,FLAT
-
2280F-14146-00-00 PLATEPLATE
-
2380F-14133-00-00 SPRING, THROTTLE STOPSPRING, THROTTLE STOP
-
2487S-8259A-01-00 SWITCH, CARBURETORSWITCH, CARBURETOR
-
2580F-14137-01-00 CLIPCLIP
-
268G6-14948-18-00 JET (#78)JET (#78)
-
278A6-14516-00-00 JET, MAIN (#100)JET, MAIN (#100)
-
278A6-14516-02-00 JET, MAIN (#102)JET, MAIN (#102)
-
278A6-14516-05-00 JET, MAIN (#105)JET, MAIN (#105)
-
278A6-14515-98-00 JET, MAIN (#98)JET, MAIN (#98)
