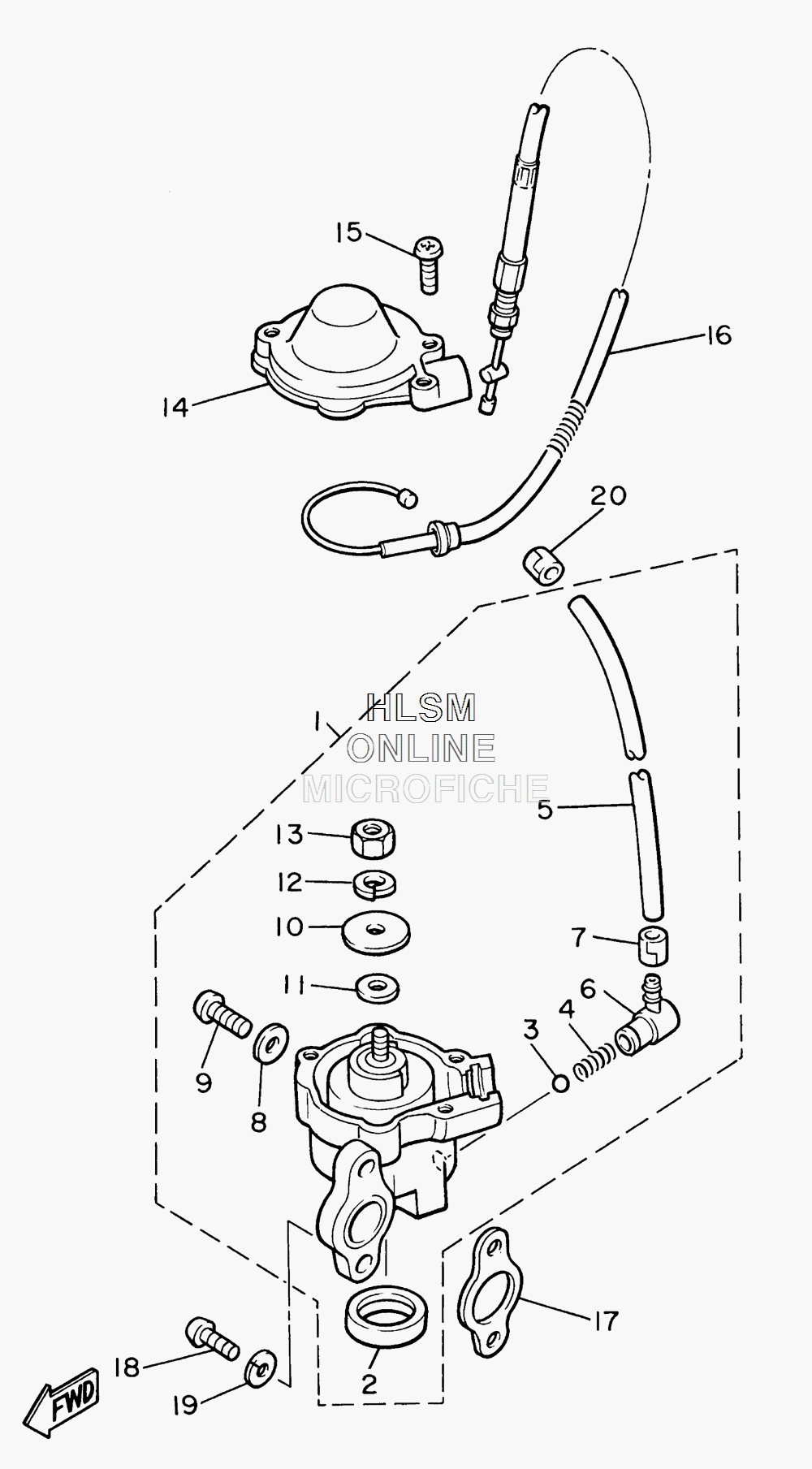

OIL PUMP ASSY для Yamaha BRAVO T - 2010 года выпуска
-
№АртикулНазвание
-
181E-13101-01-00 OIL PUMP ASSYOIL PUMP ASSY
-
290338-21075-00 PLUGPLUG
-
393505-32002-00 BALLBALL
-
490501-02217-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
590446-08201-00 TUBE, FLEXIBLE 8AVTUBE, FLEXIBLE 8AV
-
6353-13552-01-00 NOZZLENOZZLE
-
790468-02025-00 CLIPCLIP
-
890430-04004-00 GASKETGASKET
-
998907-04008-00 SCREW, BINDSCREW, BIND
-
10137-13138-01-00 PLATE, ADJUSTINGPLATE, ADJUSTING
-
11137-13137-00-10 SHIM(T=0.1MM)SHIM(T=0.1MM)
-
11137-13137-00-01 SHIM,PLUNGERSHIM,PLUNGER
-
11137-13137-00-01 SHIM,PLUNGERSHIM,PLUNGER
-
1292907-05100-00 WASHER, SPRINGWASHER, SPRING
-
1395307-05600-00 NUT, HEXAGONNUT, HEXAGON
-
148A5-13146-01-00 COVER,ADJUST PULLEYCOVER,ADJUST PULLEY
-
1598507-04018-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1681E-26320-00-00 PUMP CABLE ASSYPUMP CABLE ASSY
-
178Y0-13116-01-00 GASKET, PUMP CASEGASKET, PUMP CASE
-
1898507-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
-
1992907-05100-00 WASHER, SPRINGWASHER, SPRING
-
2090468-02025-00 CLIPCLIP
