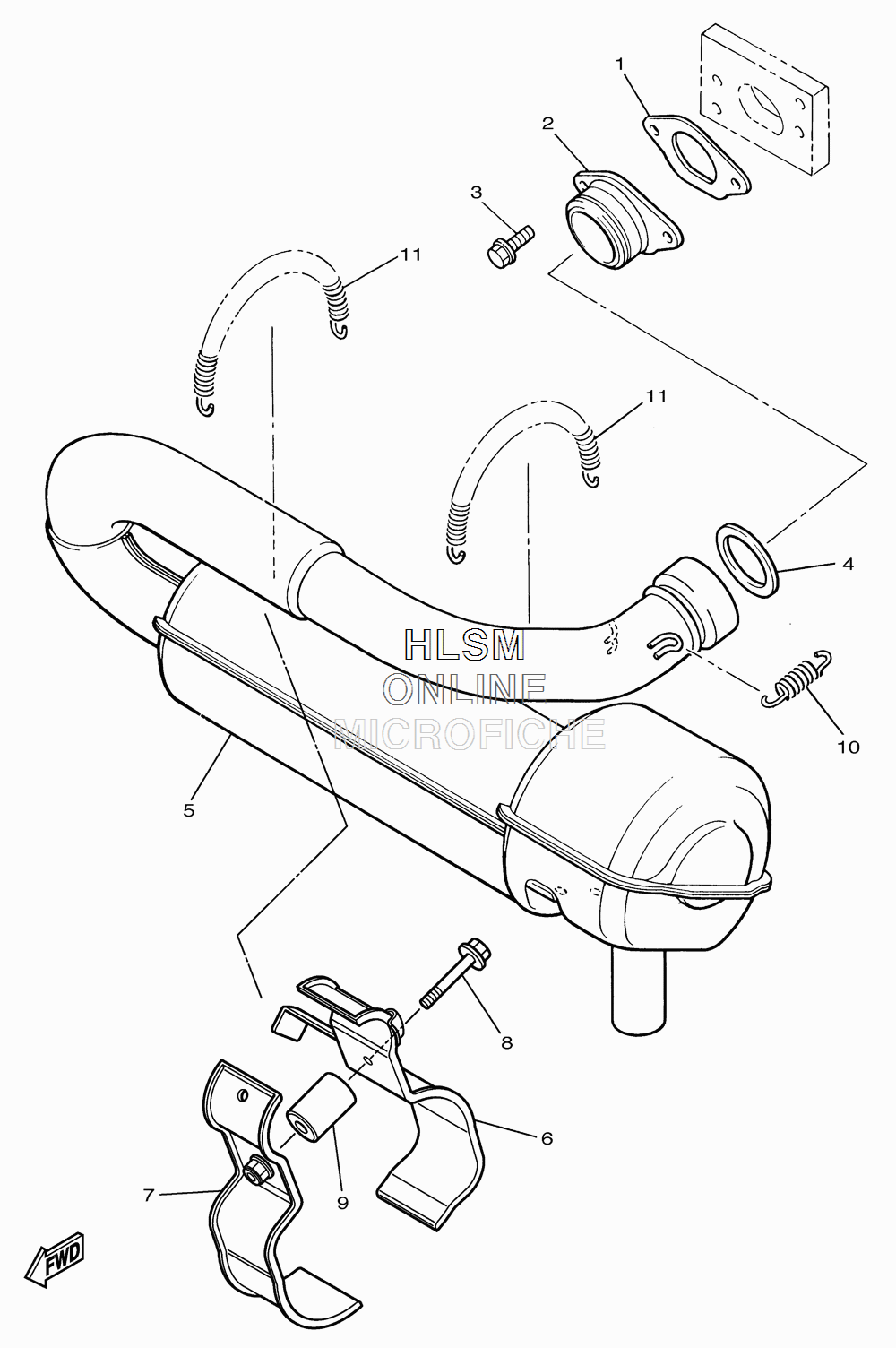

EXHAUST SYSTEM для Yamaha BRAVO T - 2010 года выпуска
-
№АртикулНазвание
-
18R4-14613-01-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
28R4-14612-01-00 NUT, RINGNUT, RING
-
395827-08020-00 BOLT, FLANGEBOLT, FLANGE
-
4888-14633-00-00 RINGRING
-
580F-14610-10-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
68BD-14715-00-00 BAND, MUFFLERBAND, MUFFLER
-
78BD-14725-00-00 BAND, MUFFLERBAND, MUFFLER
-
895817-10055-00 BOLT, FLANGEBOLT, FLANGE
-
990387-10044-00 COLLARCOLLAR
-
1090506-20074-00 SPRING, TENSIONSPRING, TENSION
-
1190506-16494-00 SPRING, TENSIONSPRING, TENSION
