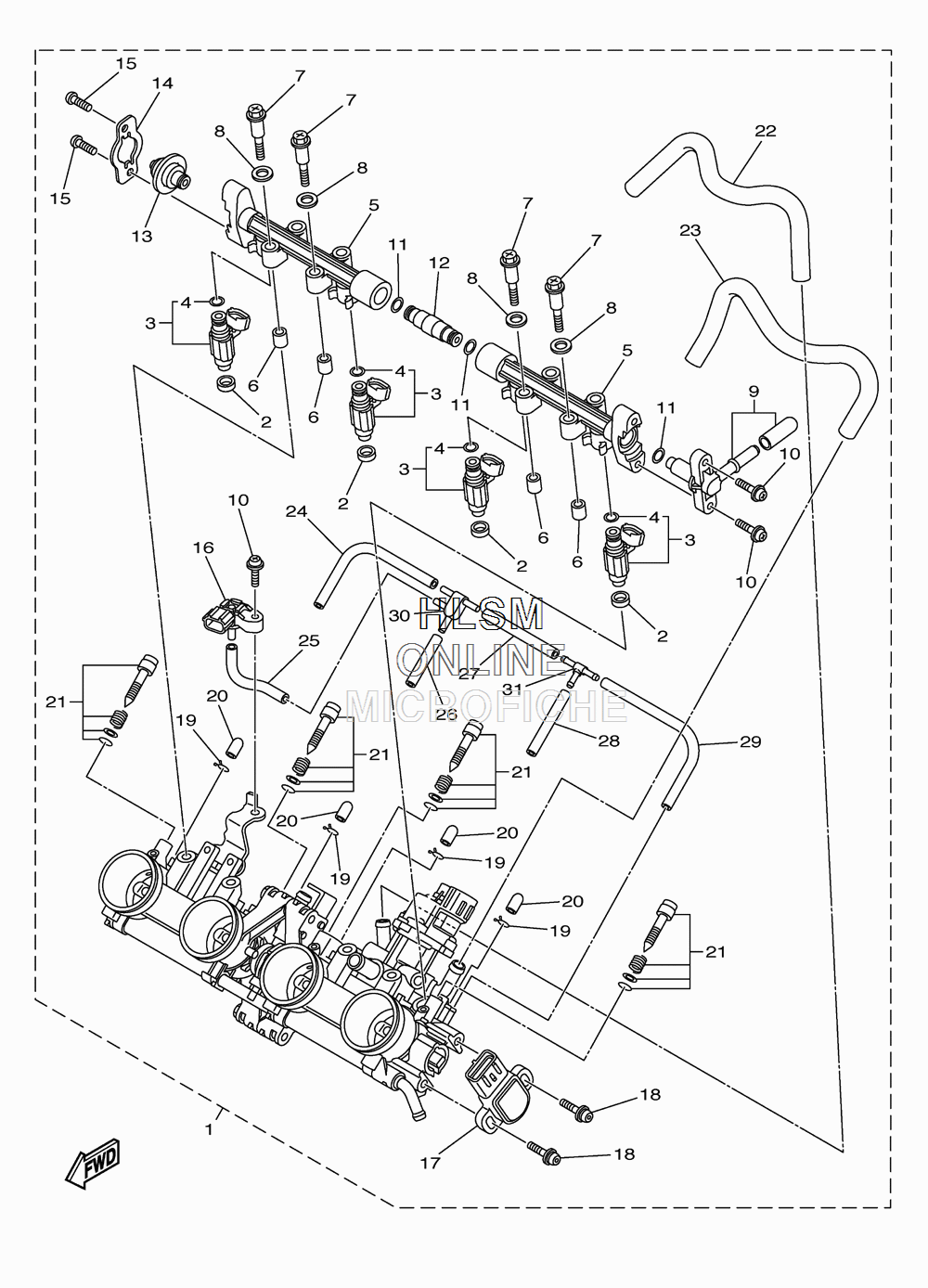

THROTTLE BODY ASSY для Yamaha APEX - 2012 года выпуска
-
№АртикулНазвание
-
18HG-13750-00-00 THROTTLE BODY ASSYTHROTTLE BODY ASSY
-
28FP-13556-00-00 ...RUBBER, INJECTOR...RUBBER, INJECTOR
-
38FP-13761-10-00 ...INJECTOR...INJECTOR
-
48FP-14147-00-00 ......O-RING......O-RING
-
58HG-13938-00-00 ...PIPE...PIPE
-
68HG-14534-00-00 ...COLLAR...COLLAR
-
78HG-13573-00-00 ...BOLT 1...BOLT 1
-
88GL-13571-00-00 ...WASHER...WASHER
-
98HG-14251-00-00 ...NIPPLE...NIPPLE
-
102C0-14216-00-00 ......SCREW......SCREW
-
118HG-14561-00-00 ...O-RING...O-RING
-
128HG-13582-00-00 ...PIPE...PIPE
-
135VK-13982-00-00 ...DAMPER...DAMPER
-
148HG-14243-00-00 ...PLATE...PLATE
-
1598507-05008-00 ...SCREW, PAN HEAD...SCREW, PAN HEAD
-
165S7-82380-00-00 ...SENSOR, PRESSURE...SENSOR, PRESSURE
-
178GL-85885-00-00 ...THROTTLE SENSOR ASSY...THROTTLE SENSOR ASSY
-
188CC-14216-10-00 ...SCREW...SCREW
-
198A7-14139-00-00 ...CLIP, PIPE...CLIP, PIPE
-
20895-14169-00-00 ...CAP...CAP
-
212C0-14105-00-00 ...PILOT SCREW SET...PILOT SCREW SET
-
228HG-13547-00-00 ...HOSE 3...HOSE 3
-
238HG-13548-00-00 ...HOSE, AIR 4...HOSE, AIR 4
-
248HG-13543-00-00 ...HOSE, AIR...HOSE, AIR
-
258GL-13892-00-00 ...HOSE, AIR 2...HOSE, AIR 2
-
268FP-14349-30-00 ...PIPE...PIPE
-
275JW-14349-10-00 ...PIPE...PIPE
-
288FP-14349-20-00 ...PIPE...PIPE
-
298HG-13546-00-00 ...HOSE 2...HOSE 2
-
305PW-1410F-00-00 ...CONNECTOR...CONNECTOR
-
3168V-24376-00-00 ...PIPE, JOINT 1...PIPE, JOINT 1
