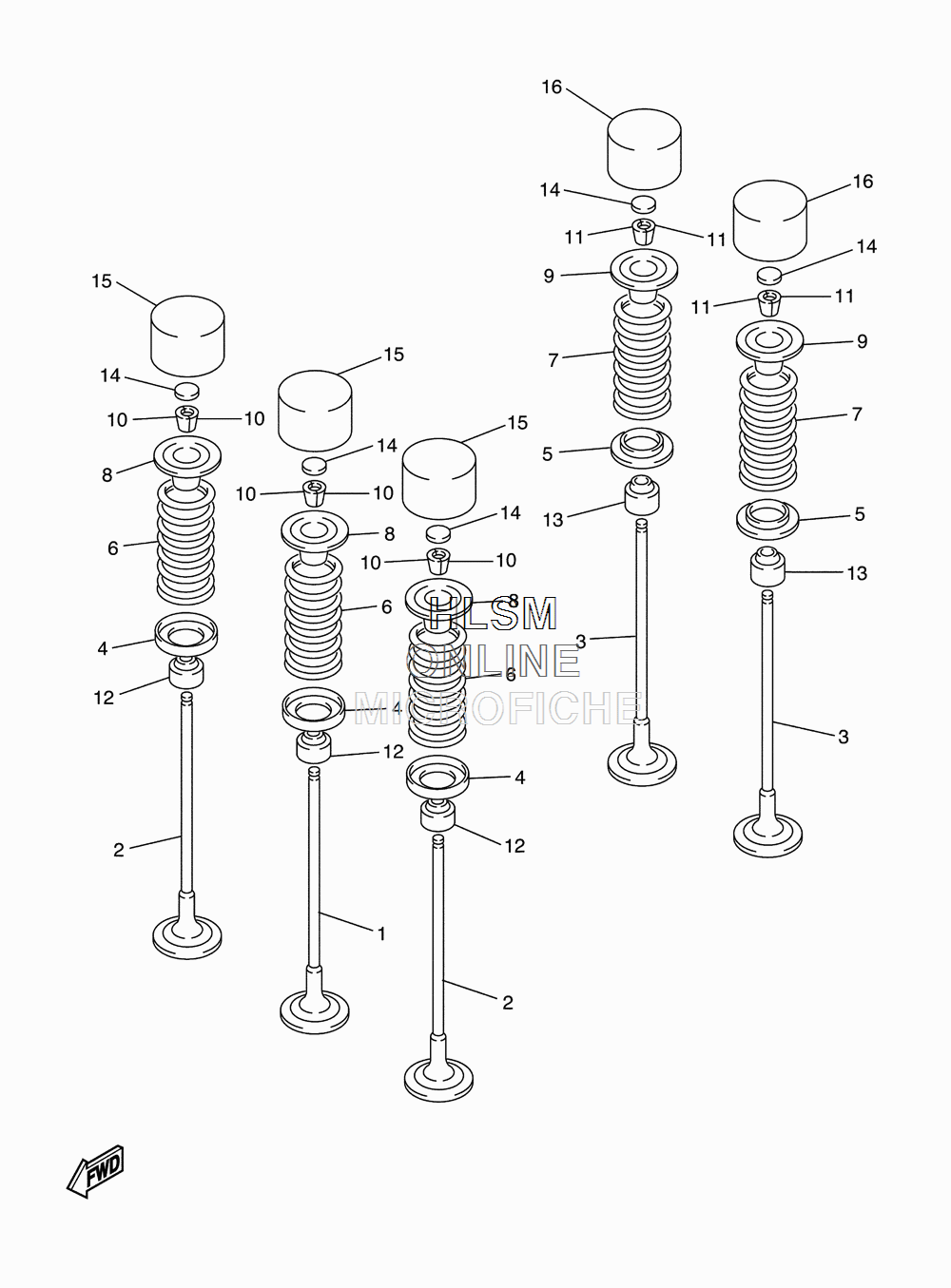

VALVE ASSY для Yamaha APEX - 2012 года выпуска
-
№АртикулНазвание
-
18HG-12111-00-00 VALVE, INTAKEVALVE, INTAKE
-
28HG-12112-00-00 VALVE, INTAKE 2VALVE, INTAKE 2
-
35LV-12121-00-00 VALVE, EXHAUSTVALVE, EXHAUST
-
41HX-12116-01-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
53GM-12126-00-00 SEAT, VALVE SPRING 2SEAT, VALVE SPRING 2
-
68FP-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
78FP-12114-00-00 SPRING, VALVE OUTERSPRING, VALVE OUTER
-
81HX-12117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
91WG-12117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
101HX-12118-00-00 COTTER, VALVECOTTER, VALVE
-
111WG-12118-00-00 COTTER, VALVECOTTER, VALVE
-
124TV-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
134TE-12119-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
141HX-12168-00-00 PAD, ADJUSTING 2 (1.20) (UR)PAD, ADJUSTING 2 (1.20) (UR)
-
141HX-12168-20-00 PAD, ADJUSTING 2 (1.25) (UR)PAD, ADJUSTING 2 (1.25) (UR)
-
141HX-12168-40-00 PAD, ADJUSTING 2 (1.30) (UR)PAD, ADJUSTING 2 (1.30) (UR)
-
141HX-12168-60-00 PAD, ADJUSTING 2 (1.35) (UR)PAD, ADJUSTING 2 (1.35) (UR)
-
141HX-12168-80-00 PAD, ADJUSTING 2 (1.40) (UR)PAD, ADJUSTING 2 (1.40) (UR)
-
141HX-12168-A0-00 PAD, ADJUSTING 2 (1.45) (UR)PAD, ADJUSTING 2 (1.45) (UR)
-
141HX-12168-F0-00 PAD, ADJUSTING 2 (1.50) (UR)PAD, ADJUSTING 2 (1.50) (UR)
-
141HX-12168-H1-00 PAD, ADJUSTING 2 (1.55) (UR)PAD, ADJUSTING 2 (1.55) (UR)
-
141HX-12168-K1-00 PAD, ADJUSTING 2 (1.60) (UR)PAD, ADJUSTING 2 (1.60) (UR)
-
141HX-12168-M1-00 PAD, ADJUSTING 2 (1.65) (UR)PAD, ADJUSTING 2 (1.65) (UR)
-
141HX-12168-R1-00 PAD, ADJUSTING 2 (1.70) (UR)PAD, ADJUSTING 2 (1.70) (UR)
-
141HX-12168-U1-00 PAD, ADJUSTING 2 (1.75) (UR)PAD, ADJUSTING 2 (1.75) (UR)
-
141HX-12168-W1-00 PAD, ADJUSTING 2 (1.80) (UR)PAD, ADJUSTING 2 (1.80) (UR)
-
141HX-12168-Y1-00 PAD, ADJUSTING 2 (1.85) (UR)PAD, ADJUSTING 2 (1.85) (UR)
-
141HX-12169-11-00 PAD, ADJUSTING 2 (1.90) (UR)PAD, ADJUSTING 2 (1.90) (UR)
-
141HX-12169-31-00 PAD, ADJUSTING 2 (1.95) (UR)PAD, ADJUSTING 2 (1.95) (UR)
-
141HX-12169-50-00 PAD, ADJUSTING 2 (2.00) (UR)PAD, ADJUSTING 2 (2.00) (UR)
-
141HX-12169-70-00 PAD, ADJUSTING 2 (2.05) (UR)PAD, ADJUSTING 2 (2.05) (UR)
-
141HX-12169-90-00 PAD, ADJUSTING 2 (2.10) (UR)PAD, ADJUSTING 2 (2.10) (UR)
-
141HX-12169-E0-00 PAD, ADJUSTING 2 (2.15) (UR)PAD, ADJUSTING 2 (2.15) (UR)
-
141HX-12169-G0-00 PAD, ADJUSTING 2 (2.20) (UR)PAD, ADJUSTING 2 (2.20) (UR)
-
141HX-12169-J0-00 PAD, ADJUSTING 2 (2.25) (UR)PAD, ADJUSTING 2 (2.25) (UR)
-
141HX-12169-L0-00 PAD, ADJUSTING 2 (2.30) (UR)PAD, ADJUSTING 2 (2.30) (UR)
-
141HX-12169-N0-00 PAD, ADJUSTING 2 (2.35) (UR)PAD, ADJUSTING 2 (2.35) (UR)
-
141HX-12169-T0-00 PAD, ADJUSTING 2 (2.40) (UR)PAD, ADJUSTING 2 (2.40) (UR)
-
153LN-12153-10-00 LIFTER, VALVE (UR YELLOW)LIFTER, VALVE (UR YELLOW)
-
153LN-12153-09-00 LIFTER, VALVE (O/S) (UR GREEN)LIFTER, VALVE (O/S) (UR GREEN)
-
163FV-12153-10-00 LIFTER, VALVE (UR YELLOW)LIFTER, VALVE (UR YELLOW)
-
163FV-12153-09-00 LIFTER, VALVE (O/S) (UR GREEN)LIFTER, VALVE (O/S) (UR GREEN)
