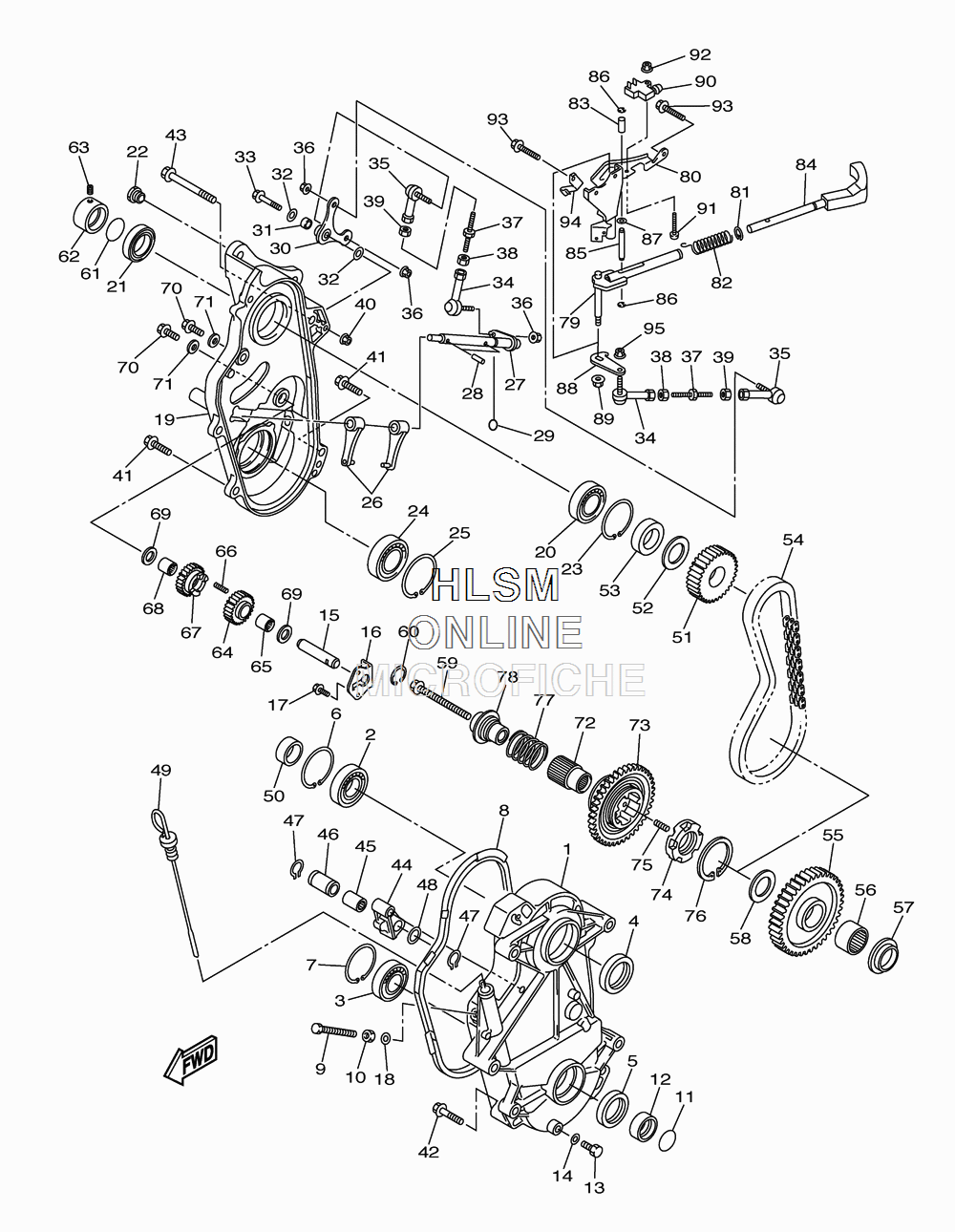

CHAINCASE ASSY для Yamaha VECTOR - 2012 года выпуска
-
№АртикулНазвание
-
18FP-47541-11-00 HOUSING, CHAINHOUSING, CHAIN
-
293306-20601-00 BEARINGBEARING
-
393306-205A9-00 BEARINGBEARING
-
493102-30012-00 OIL SEALOIL SEAL
-
593102-35010-00 OIL SEALOIL SEAL
-
699009-62500-00 CIRCLIPCIRCLIP
-
799009-52500-00 CIRCLIPCIRCLIP
-
88FP-47558-10-00 RING, HOUSINGRING, HOUSING
-
990101-10357-00 BOLTBOLT
-
1095302-10700-00 NUTNUT
-
1193210-25071-00 O-RINGO-RING
-
1290387-2508C-00 COLLARCOLLAR
-
1397002-08014-00 BOLTBOLT
-
1490210-08017-00 WASHER, SEALWASHER, SEAL
-
158CW-1761A-00-00 SHAFT, 1SHAFT, 1
-
168CW-47591-00-00 PLATEPLATE
-
1790105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
1890201-106H5-00 WASHER, PLATEWASHER, PLATE
-
198HF-47543-00-00 CAP, HOUSINGCAP, HOUSING
-
2093306-20511-00 BEARINGBEARING
-
2193102-35473-00 OIL SEALOIL SEAL
-
2290179-10679-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
2399009-52500-00 CIRCLIPCIRCLIP
-
2493306-00711-00 BEARINGBEARING
-
2599009-62500-00 CIRCLIPCIRCLIP
-
268GL-18511-01-00 FORK, SHIFT 1FORK, SHIFT 1
-
278FR-18197-00-00 SHAFTSHAFT
-
2891609-50022-00 PIN, SPRINGPIN, SPRING
-
2993210-12131-00 O-RINGO-RING
-
308FR-18198-00-00 LEVERLEVER
-
3190387-0608T-00 COLLARCOLLAR
-
3290201-06033-00 WASHER, PLATEWASHER, PLATE
-
3395812-06040-00 BOLT, FLANGEBOLT, FLANGE
-
34J45-23845-00-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
3588T-18157-00-00 JOINT 2JOINT 2
-
3695602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3726H-18115-00-00 ROD, SHIFTROD, SHIFT
-
3895302-06600-00 NUTNUT
-
3990170-06289-00 NUTNUT
-
4095602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
4190105-08108-00 BOLT, FLANGEBOLT, FLANGE
-
4295822-10045-00 BOLT, FLANGEBOLT, FLANGE
-
4395822-10090-00 BOLT, FLANGEBOLT, FLANGE
-
448ES-47613-00-00 HOLDERHOLDER
-
4593311-32685-00 BEARINGBEARING
-
4690387-22005-00 COLLARCOLLAR
-
4799009-26400-00 CIRCLIPCIRCLIP
-
4890201-266P2-00 WASHER, PLATEWASHER, PLATE
-
498FA-47546-01-00 LEVEL, OILLEVEL, OIL
-
5090387-30005-00 COLLARCOLLAR
-
518FA-17682-40-00 SPROCKET, CHAIN DRIVE (24T)SPROCKET, CHAIN DRIVE (24T)
-
5290208-26002-00 WASHER, CONICAL SPRINGWASHER, CONICAL SPRING
-
5390387-26007-00 COLLARCOLLAR
-
5494890-09070-00 CHAIN (70L) BORG WARNCHAIN (70L) BORG WARN
-
558FB-47587-80-00 SPROCKET, CHAIN DRIVEN (38T)SPROCKET, CHAIN DRIVEN (38T)
-
5693317-33179-00 BEARINGBEARING
-
5790387-2008G-00 COLLARCOLLAR
-
5890201-320S3-00 WASHER, PLATEWASHER, PLATE
-
5990105-10368-00 BOLT, FLANGEBOLT, FLANGE
-
6093420-26092-00 CIRCLIPCIRCLIP
-
6193210-25642-00 O-RINGO-RING
-
628HF-47536-00-00 COLLARCOLLAR
-
6390113-06064-00 BOLT, SETBOLT, SET
-
648FB-17692-00-00 SPROCKET, DRIVE (18T)SPROCKET, DRIVE (18T)
-
6593317-21578-00 BEARINGBEARING
-
6690501-060A1-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
678CW-17143-00-00 GEAR, REVERSE PINION 1 (18T)GEAR, REVERSE PINION 1 (18T)
-
6893317-21578-00 BEARINGBEARING
-
6990201-16245-00 WASHER, PLATEWASHER, PLATE
-
7090105-060A6-00 BOLT, FLANGEBOLT, FLANGE
-
7190210-06006-00 WASHER, SEALWASHER, SEAL
-
728CW-47571-00-00 JOURNAL 1JOURNAL 1
-
738CW-17243-00-00 GEAR, REVERSE WHEEL 1 (50T)GEAR, REVERSE WHEEL 1 (50T)
-
748CW-17492-00-00 DOG, TRANSMISSION SHIFTDOG, TRANSMISSION SHIFT
-
7590501-066J5-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
7693440-39175-00 CIRCLIPCIRCLIP
-
7790501-260A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
788GL-48566-10-00 COLLARCOLLAR
-
798ER-18112-01-00 ARM, SHIFTARM, SHIFT
-
808JA-18161-00-00 GUIDE, PLATE STOPPERGUIDE, PLATE STOPPER
-
8199009-18400-00 CIRCLIPCIRCLIP
-
8290501-130A0-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
8390387-06059-00 COLLARCOLLAR
-
848FR-18174-01-00 KNOB, SHIFT LEVERKNOB, SHIFT LEVER
-
8590249-06002-00 PINPIN
-
8693410-06053-00 CIRCLIPCIRCLIP
-
8790201-067F9-00 WASHER, PLATEWASHER, PLATE
-
888JA-1811A-00-00 PLATE, SHIFT ARMPLATE, SHIFT ARM
-
8995602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
90J51-82817-00-00 SWITCH, NEUTRALSWITCH, NEUTRAL
-
9198902-04020-00 SCREW, BINDSCREW, BIND
-
9295602-04100-00 NUT, UNUT, U
-
9395822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
9490462-08086-00 CLAMPCLAMP
-
9595602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
