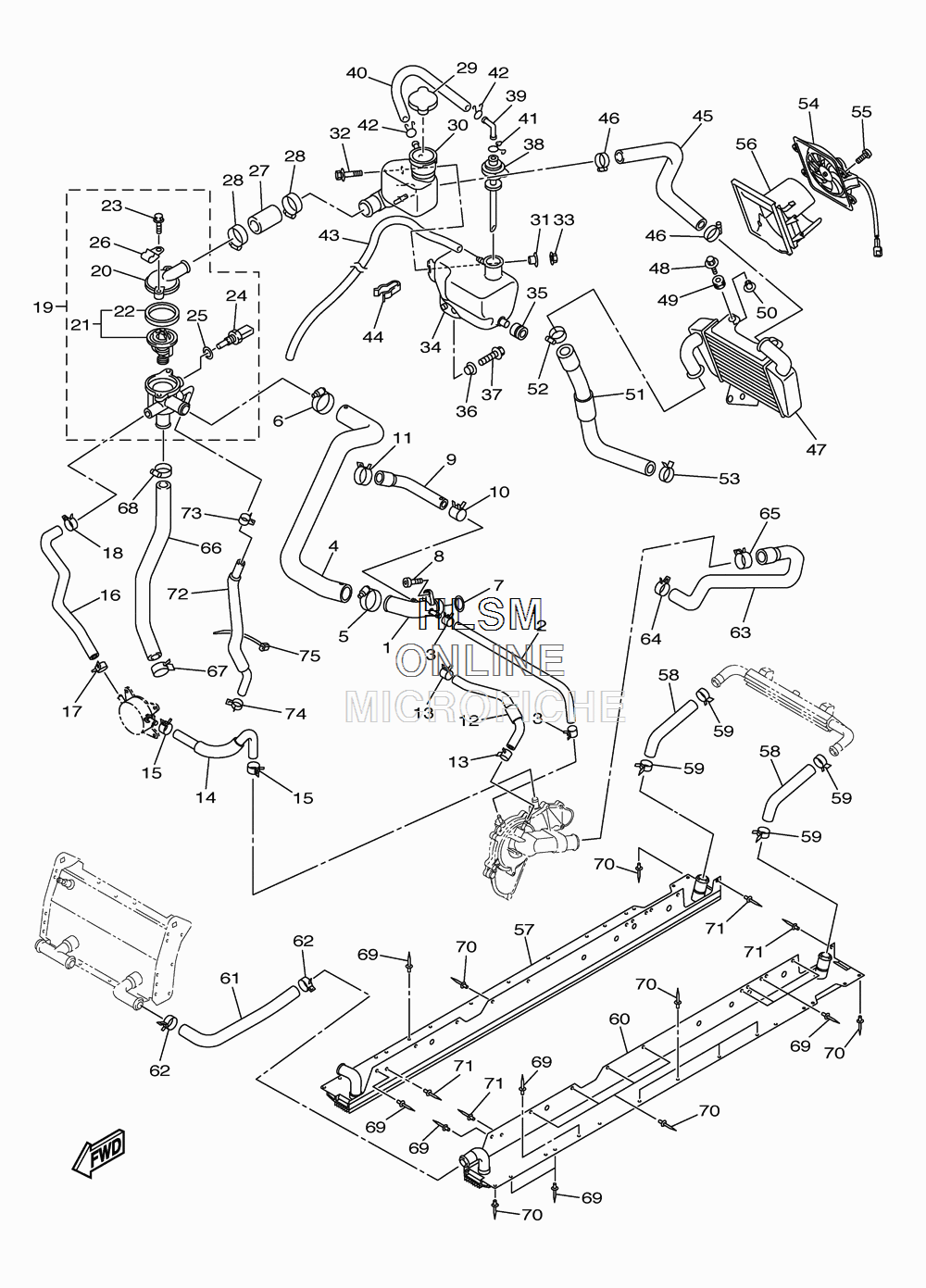

COOLING SYSTEM для Yamaha VECTOR - 2012 года выпуска
-
№АртикулНазвание
-
18HF-12482-00-00 PIPE 2PIPE 2
-
28GL-12485-00-00 PIPE 5PIPE 5
-
390467-110A2-00 CLIPCLIP
-
48HF-1243E-00-00 HOSE 2HOSE 2
-
590450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
690450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
793210-235A1-00 O-RINGO-RING
-
891312-06016-00 BOLTBOLT
-
98HF-12577-00-00 HOSE 2HOSE 2
-
1090467-110A2-00 CLIPCLIP
-
1190467-120A5-00 CLIPCLIP
-
128GL-12578-00-00 HOSE 3HOSE 3
-
1390467-110A2-00 CLIPCLIP
-
148ES-12588-00-00 HOSE 5HOSE 5
-
1590467-17089-00 CLIPCLIP
-
168GM-12589-00-00 HOSE 6HOSE 6
-
1790467-17089-00 CLIPCLIP
-
1890467-17089-00 CLIPCLIP
-
198FP-12580-10-00 JOINT ASSYJOINT ASSY
-
208FP-12413-00-00 ...COVER, THERMOSTAT...COVER, THERMOSTAT
-
218FP-12410-00-00 ...THERMOSTAT ASSY...THERMOSTAT ASSY
-
228FP-12412-00-00 ......SEAL, THERMOSTAT......SEAL, THERMOSTAT
-
2395022-06020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
248CC-85790-01-00 ...THERMOSENSOR ASSY...THERMOSENSOR ASSY
-
2590201-12790-00 ...WASHER, PLATE...WASHER, PLATE
-
2690465-06M28-00 ...CLAMP...CLAMP
-
278FP-1243F-00-00 HOSE, 3HOSE, 3
-
2890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2922W-12462-00-00 CAP, RADIATORCAP, RADIATOR
-
308HG-1249B-00-00 TANK, RESERVETANK, RESERVE
-
3190387-06737-00 COLLARCOLLAR
-
3290119-06M23-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
3395602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
348HG-21871-00-00 TANK, RECOVERYTANK, RECOVERY
-
3590480-14182-00 GROMMETGROMMET
-
3690387-06648-00 COLLARCOLLAR
-
3795822-06016-00 BOLT, FLANGEBOLT, FLANGE
-
388HG-21875-00-00 CAPCAP
-
3926H-21828-00-00 ELBOWELBOW
-
4090445-094K7-00 HOSE (L180)HOSE (L180)
-
4190467-11019-00 CLIPCLIP
-
4290467-08003-00 CLIPCLIP
-
4390445-08007-00 HOSEHOSE
-
4490464-15065-00 CLAMPCLAMP
-
458FP-1244G-00-00 HOSE, 4HOSE, 4
-
4690450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
478FR-12461-00-00 RADIATOR COMPRADIATOR COMP
-
4890119-06181-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
4990480-10289-00 GROMMETGROMMET
-
5090387-077M3-00 COLLARCOLLAR
-
518FP-1244H-02-00 HOSE 5HOSE 5
-
5290450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
5390467-28046-00 CLIPCLIP
-
548FP-12405-01-00 BLOWER ASSYBLOWER ASSY
-
5590149-05129-00 SCREWSCREW
-
568JA-12467-01-00 COVER, RADIATORCOVER, RADIATOR
-
578JA-1240F-00-00 HEAT EXCHANGERHEAT EXCHANGER
-
588FA-12476-00-00 PIPE 6PIPE 6
-
5990467-28046-00 CLIPCLIP
-
608JA-1240E-00-00 HEAT EXCHANGERHEAT EXCHANGER
-
618FA-12477-00-00 PIPE 7PIPE 7
-
6290467-28046-00 CLIPCLIP
-
638ES-1248A-00-00 PIPE 8PIPE 8
-
6490467-28046-00 CLIPCLIP
-
6590467-310A0-00 CLIPCLIP
-
668HF-1248E-00-00 PIPE 9PIPE 9
-
6790467-28046-00 CLIPCLIP
-
6890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
6990267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
7090267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
7190267-47197-00 RIVET, BLIND (4.7X19.5 SILVER)RIVET, BLIND (4.7X19.5 SILVER)
-
728FA-12579-00-00 HOSE 4HOSE 4
-
7390467-11090-00 CLIPCLIP
-
7490467-11044-00 CLIPCLIP
-
7590464-13073-00 CLAMPCLAMP
