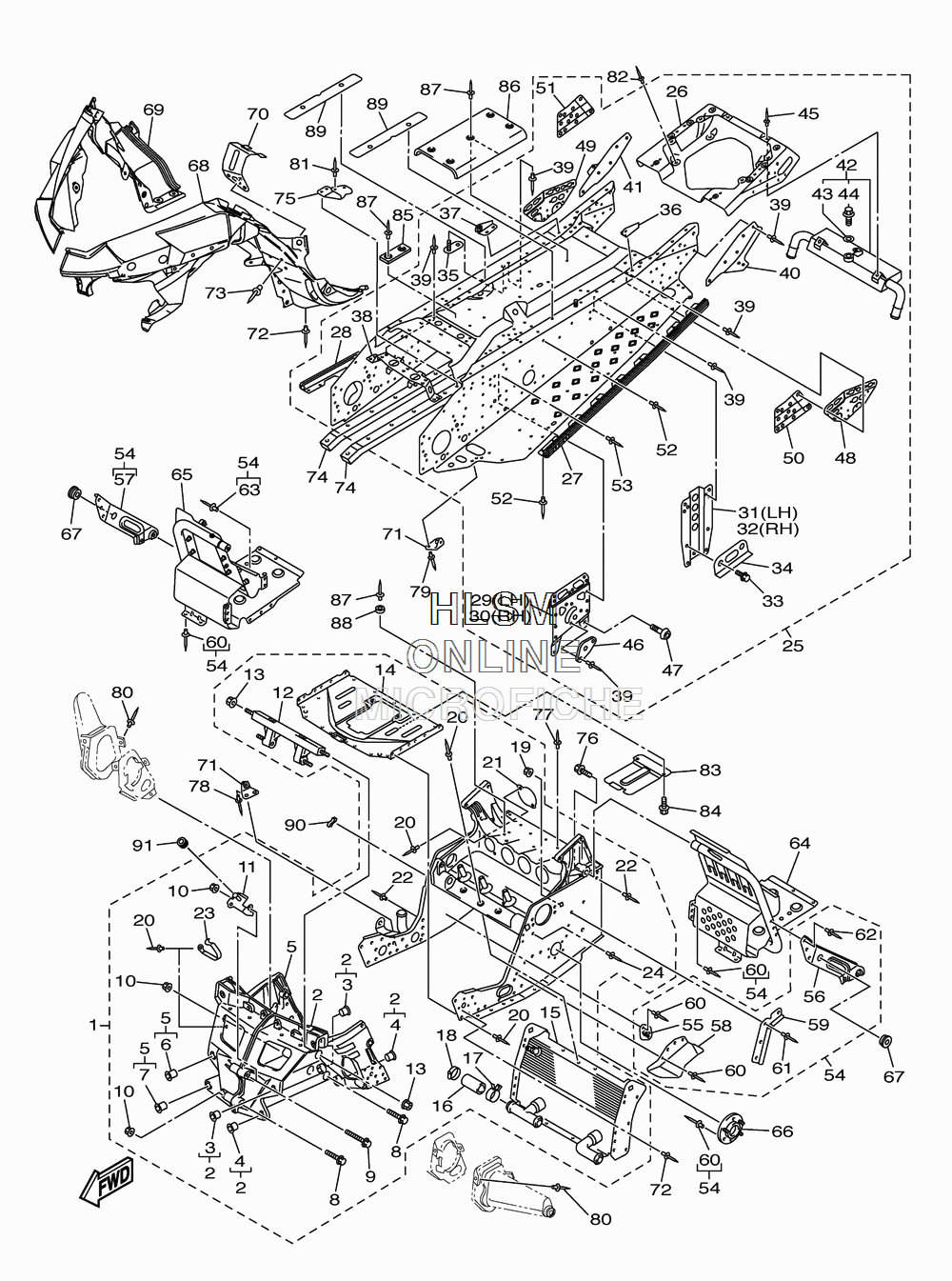

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha VECTOR - 2012 года выпуска
-
№АртикулНазвание
-
18HV-21940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-13-00 ...BULKHEAD...BULKHEAD
-
390381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
490381-16004-00 ......BUSH, SOLID......BUSH, SOLID
-
58FA-2191E-19-00 ...BULKHEAD 2...BULKHEAD 2
-
690381-15001-00 ......BUSH, SOLID......BUSH, SOLID
-
790381-16004-00 ......BUSH, SOLID......BUSH, SOLID
-
895827-08060-00 ...BOLT, FLANGE...BOLT, FLANGE
-
995827-08065-00 ...BOLT, FLANGE...BOLT, FLANGE
-
1095607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
118HG-2836E-00-00 ...BRACKET 2...BRACKET 2
-
128FG-21947-00-00 ...BRACKET, STEERING 1...BRACKET, STEERING 1
-
1395607-10200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
148FR-2193A-01-00 ...PROTECTOR...PROTECTOR
-
158JA-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
168FA-12551-00-00 ...HOSE 7...HOSE 7
-
1790467-28046-00 ...CLIP...CLIP
-
1890450-35001-00 ...HOSE CLAMP ASSY...HOSE CLAMP ASSY
-
1995607-08200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
2090267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
218ES-2131D-00-00 ...PLATE, COVER...PLATE, COVER
-
2290267-48176-00 ...RIVET, BLIND (4.8X17 YELLOW)...RIVET, BLIND (4.8X17 YELLOW)
-
2390462-08083-00 ...CLAMP...CLAMP
-
2490267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)...RIVET, BLIND (4.8X14 YELLOW)
-
258HV-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
268FA-W2199-10-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
278FG-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
288FG-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
298FU-21943-00-00 ...BRACKET, MAIN TRACK 1 (LEFT HAND)...BRACKET, MAIN TRACK 1 (LEFT HAND)
-
308FU-21953-00-00 ...BRACKET, MAIN TRACK 2 (RIGHT HAND)...BRACKET, MAIN TRACK 2 (RIGHT HAND)
-
318FP-21944-00-00 ...BRACKET, REAR TRACK SUSPENSION (LEFT HAND)...BRACKET, REAR TRACK SUSPENSION (LEFT HAND)
-
328FP-21954-00-00 ...BRACKET, REAR TRACK SUSPENSION (RIGHT HAND)...BRACKET, REAR TRACK SUSPENSION (RIGHT HAND)
-
3395814-10020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
348FU-21988-01-00 ...PATCH 8...PATCH 8
-
358CR-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
368FA-2194X-00-00 ...BRACKET 1...BRACKET 1
-
378FA-2195X-00-00 ...BRACKET 2...BRACKET 2
-
388ES-2194H-00-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
3990267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
408FU-21963-00-00 ...PATCH 3...PATCH 3
-
418FU-21964-00-00 ...PATCH 4...PATCH 4
-
428ET-1241A-02-00 ...HEAT EXCHANGER ASSY 4...HEAT EXCHANGER ASSY 4
-
4390210-06006-00 ......WASHER, SEAL......WASHER, SEAL
-
4495812-06016-00 ......BOLT, FLANGE......BOLT, FLANGE
-
4590267-48095-00 ...RIVET, BLIND (4.8X12.6 SILVER)...RIVET, BLIND (4.8X12.6 SILVER)
-
468FU-21919-00-00 ...BRACKET, MAIN TRACK 3...BRACKET, MAIN TRACK 3
-
4792014-10020-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
488FP-21928-00-00 ...REINF, SUB FRAME 1...REINF, SUB FRAME 1
-
498FP-21938-00-00 ...REINF, SUB FRAME 2...REINF, SUB FRAME 2
-
508FJ-21924-00-00 ...REINFORCEMENT, FRAME REAR 3...REINFORCEMENT, FRAME REAR 3
-
518FJ-21934-00-00 ...REINFORCEMENT, FRAME REAR 4...REINFORCEMENT, FRAME REAR 4
-
5290267-48023-00 ...RIVET, BLIND (4.8X12.1 YELLOW)...RIVET, BLIND (4.8X12.1 YELLOW)
-
5390267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)...RIVET, BLIND (4.8X14 YELLOW)
-
548JA-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
558CR-21939-01-00 ...BRACKET, CHAIN HOUSING...BRACKET, CHAIN HOUSING
-
568JA-2196M-00-00 ...BRACKET 5...BRACKET 5
-
578JA-2197M-00-00 ...BRACKET 6...BRACKET 6
-
588FP-2198G-01-00 ...COVER 2...COVER 2
-
598FA-21999-00-00 ...CLAMP, WIRE HARNESS...CLAMP, WIRE HARNESS
-
6090267-47195-00 ...RIVET, BLIND (4.7X16.4 YELLOW)...RIVET, BLIND (4.7X16.4 YELLOW)
-
6190267-48018-00 ...RIVET, BLIND (4.8X18.6 BLACK)...RIVET, BLIND (4.8X18.6 BLACK)
-
6290267-48177-00 ...RIVET, BLIND (4.8X14 YELLOW)...RIVET, BLIND (4.8X14 YELLOW)
-
6390267-47186-00 ...RIVET, BLIND (4.7X16.4 BLACK)...RIVET, BLIND (4.7X16.4 BLACK)
-
648JA-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
658HG-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
668EK-21920-01-00 HOUSING, REINF SUB-ASSY (LEFT)HOUSING, REINF SUB-ASSY (LEFT)
-
6790480-13567-00 GROMMETGROMMET
-
688GM-2196A-01-00 FRAME UNDER 1FRAME UNDER 1
-
698FP-2196E-02-00 FRAME, UNDER 2FRAME, UNDER 2
-
708FP-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
718FA-2196F-00-00 BRACKET 3BRACKET 3
-
7290267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
7390267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
748FA-21978-01-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
758FU-2197N-00-00 BRACKET 7BRACKET 7
-
7695822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
7790267-48169-00 RIVET, BLIND (4.8X14.1 BLACK)RIVET, BLIND (4.8X14.1 BLACK)
-
7890267-48083-00 RIVET, BLIND (4.8X15.2 SILVER)RIVET, BLIND (4.8X15.2 SILVER)
-
7990267-48095-00 RIVET, BLIND (4.8X12.6 SILVER)RIVET, BLIND (4.8X12.6 SILVER)
-
8090267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
8190267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
8290267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
838FR-2197E-00-00 PROTECTOR, FRAME FRONTPROTECTOR, FRAME FRONT
-
8492012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
858FA-21998-00-00 SPACERSPACER
-
868FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
8790267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
-
888HG-24768-00-00 STOPPERSTOPPER
-
898HG-2214F-00-00 DAMPER 1DAMPER 1
-
908FA-7717H-00-00 TAPE 4TAPE 4
-
9190480-12053-00 GROMMETGROMMET
