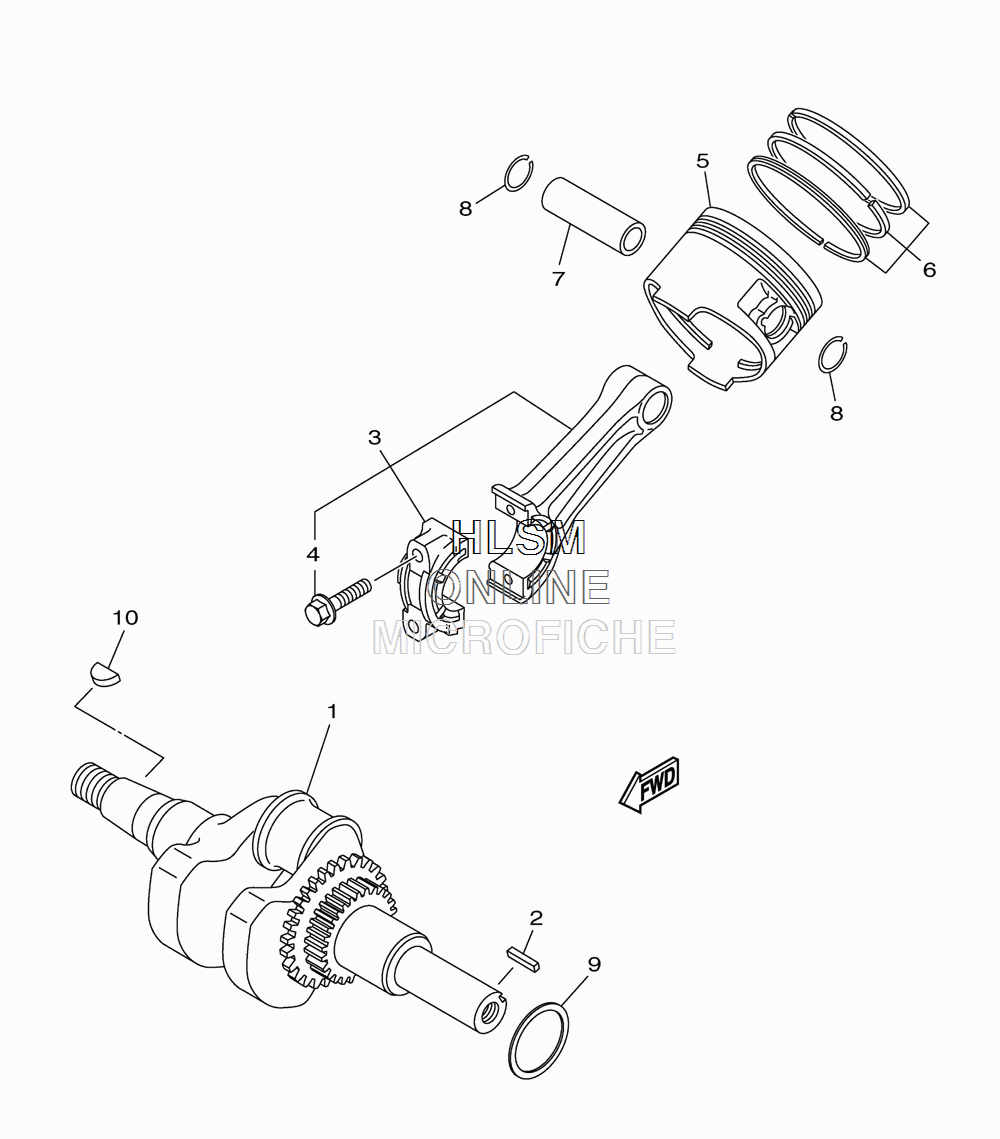

CRANKSHAFT W/ PISTON ASSY для Yamaha SX120 - 2013 года выпуска
-
№АртикулНазвание
-
17CN-E1400-10-00 CRANKSHAFT ASSYCRANKSHAFT ASSY
-
290282-05035-00 KEY, STRAIGHT (4.7MMX35MM)KEY, STRAIGHT (4.7MMX35MM)
-
37CN-E1650-11-00 CONNECTING ROD ASSYCONNECTING ROD ASSY
-
47CN-E1654-00-00 ...BOLT, CONNECTING ROD...BOLT, CONNECTING ROD
-
57CL-E1631-10-A0 PISTON (STD)PISTON (STD)
-
57CL-E1635-00-00 PISTON (0.25MM) (O/S)PISTON (0.25MM) (O/S)
-
57CL-E1636-00-00 PISTON (0.50MM) (O/S)PISTON (0.50MM) (O/S)
-
67CL-E1610-00-00 PISTON RING SET (STD)PISTON RING SET (STD)
-
67CL-E1610-10-00 PISTON RING SET (0.25MM) (O/S)PISTON RING SET (0.25MM) (O/S)
-
67CL-E1610-20-00 PISTON RING SET (0.50MM) (O/S)PISTON RING SET (0.50MM) (O/S)
-
77CL-E1633-00-00 PIN, PISTONPIN, PISTON
-
893450-17828-00 CIRCLIPCIRCLIP
-
97CN-E1561-00-00 SHIM, CRANK 1 (T=0.1)SHIM, CRANK 1 (T=0.1)
-
1090280-04801-00 KEY, WOODRUFFKEY, WOODRUFF
